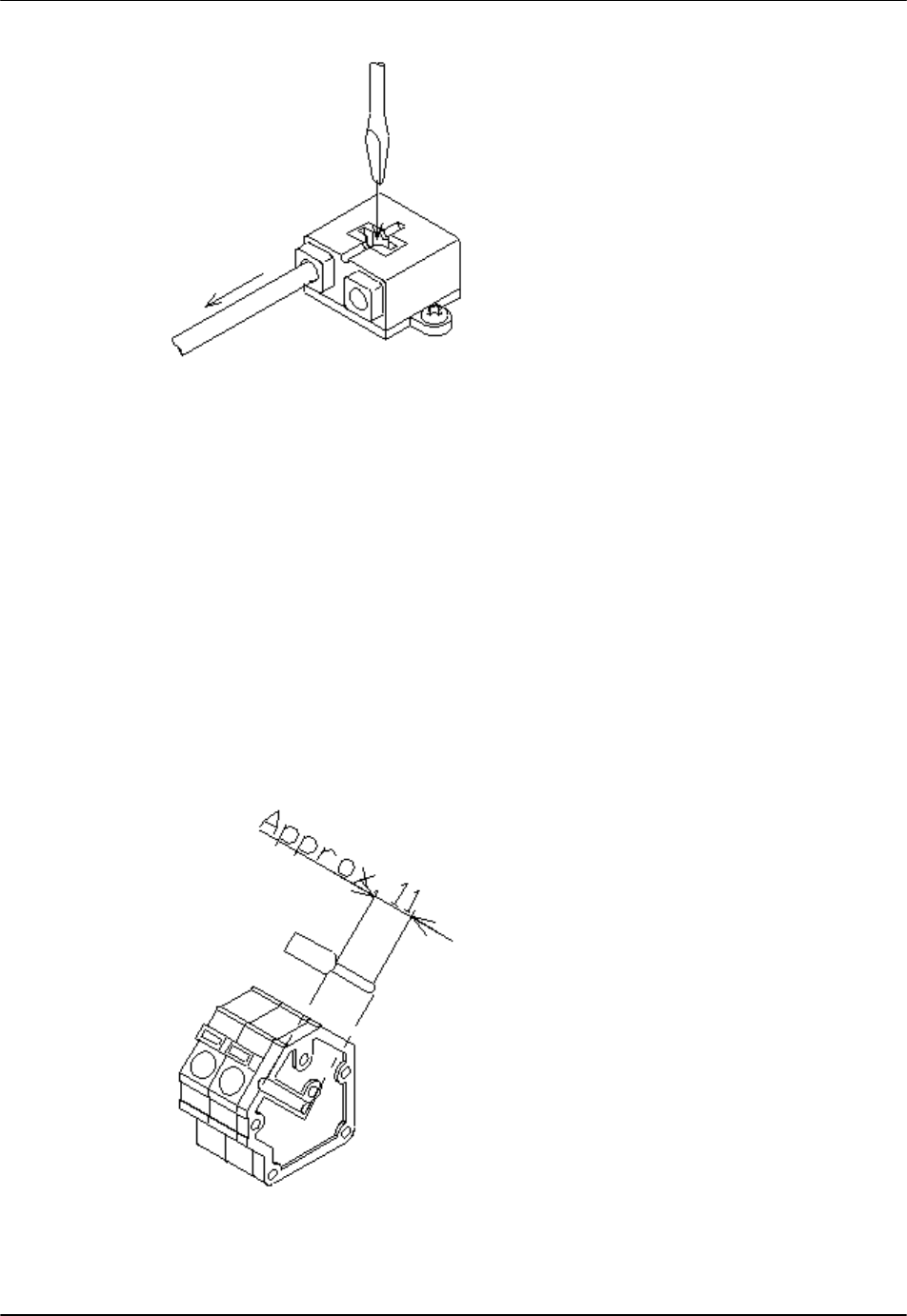

Figure 19: Tools for Disconnecting the Cable
2.5 Connecting the Line Cables
! CAUTION: The diameters of the cable connected to this terminal are φ 0.4 to 1.6
mm for single wire and φ 0.3 to 1.25 mm for twisted wire.
1. Put the Line cable through the bushing.
2. Peel off the cable coating to the length that corresponds to the strip gauge on
the terminal, as indicated in Figure 20.
Figure 20: Strip Gauge on the Terminal
