2. Peel off the cable coating to the length that corresponds to the strip gauge on
the terminal, as indicated in Figure 17.

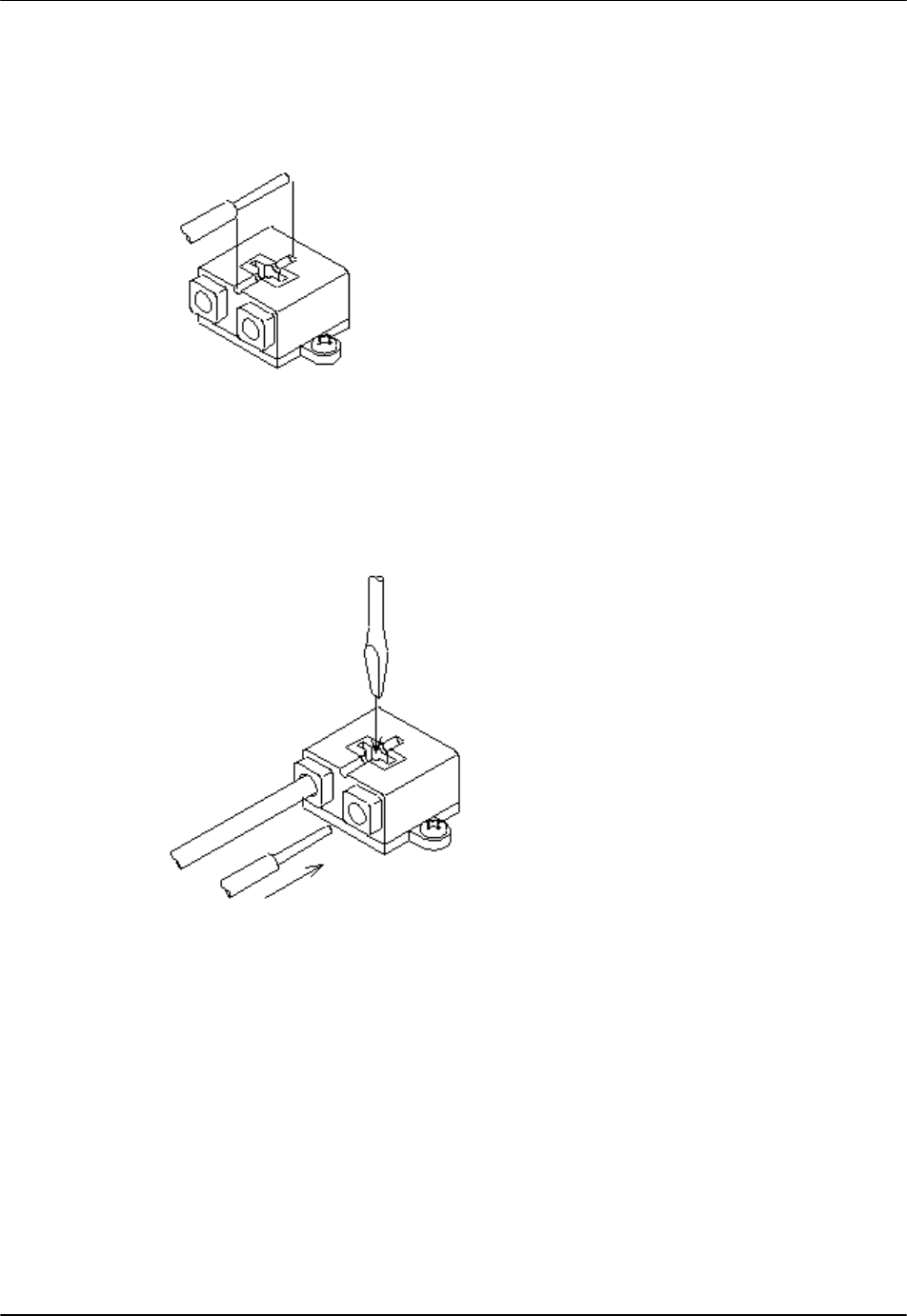

Figure 17: Strip Gauge on the Terminal
3. Insert the cables firmly until they come to the end.
Figure 18: Inserting the Cable
4. If the cable is connected wrongly, use a proper tool to press down the button
of the terminal and pull out the attached cable. Then insert it again. The
proper tools that can be used for the purpose include:
• Regular screwdriver (shaft diameter: 6, nose width: 6)
• Phillips screwdriver (shaft diameter: 4)
