1.2.3.2 Hexagon Socket Head Screw
The screw is used to fix the joint box to the wall.

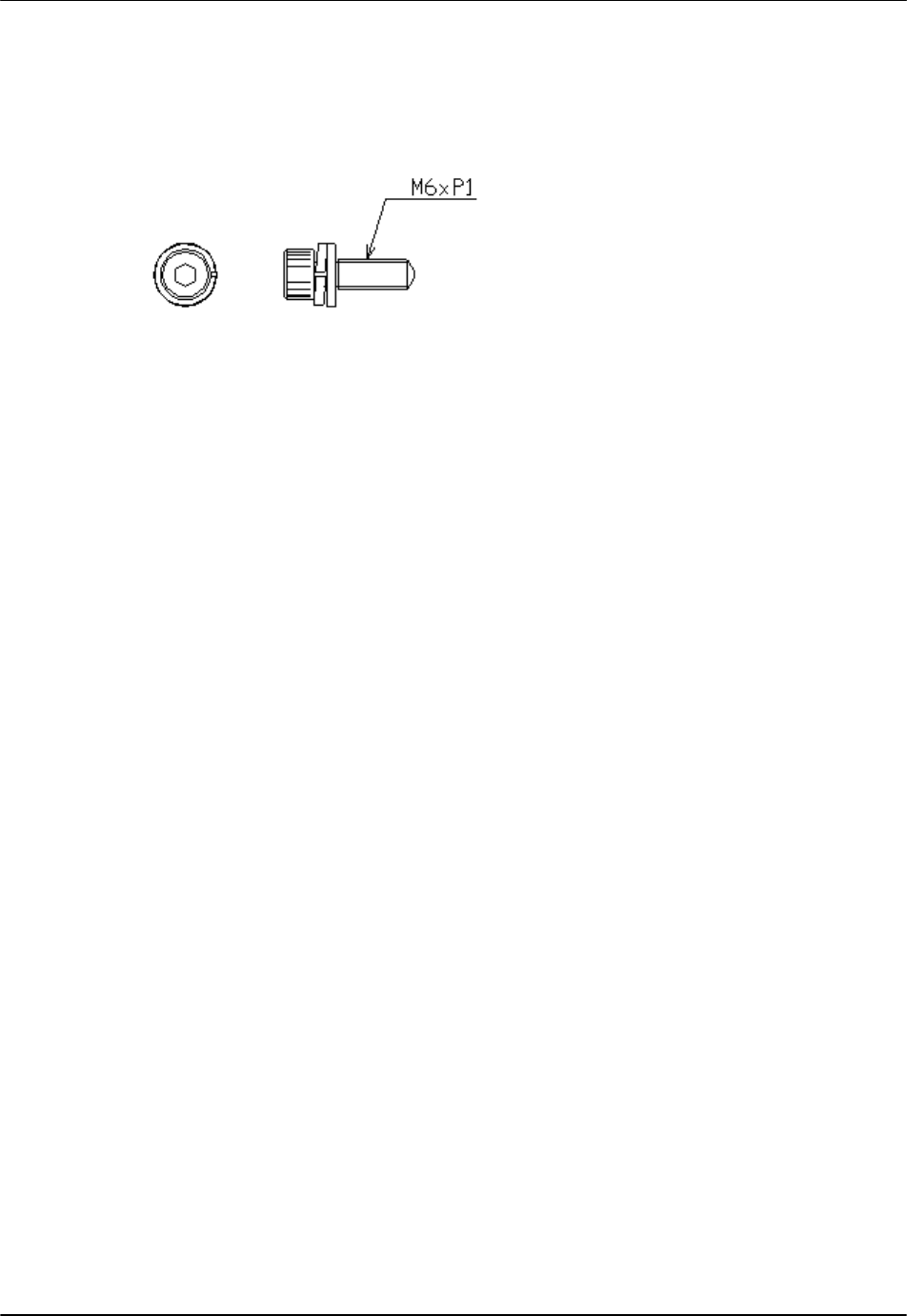

Figure 12: Hexagon Socket Head Screw
1.2.3.3 M6 Spring Washer
Refer to Figure 7.
1.2.3.4 M6 Plane Washer
Refer to Figure 8.
1.2.3.5 M6 Nut
Refer to Figure 9.
2 Wiring Cables to the Joint Box
2.1 Opening the Joint Box Cover
Use a hexagon socket screw key to loosen the four hexagon socket head screws
on the four corners of the Joint Box, as displayed in Figure 13. The screws will
not drop off from the cabinet.
