RPC/RP Manual 200mW RP Installation
25July2000 WLL-200mW-RP-IN-1.0
11

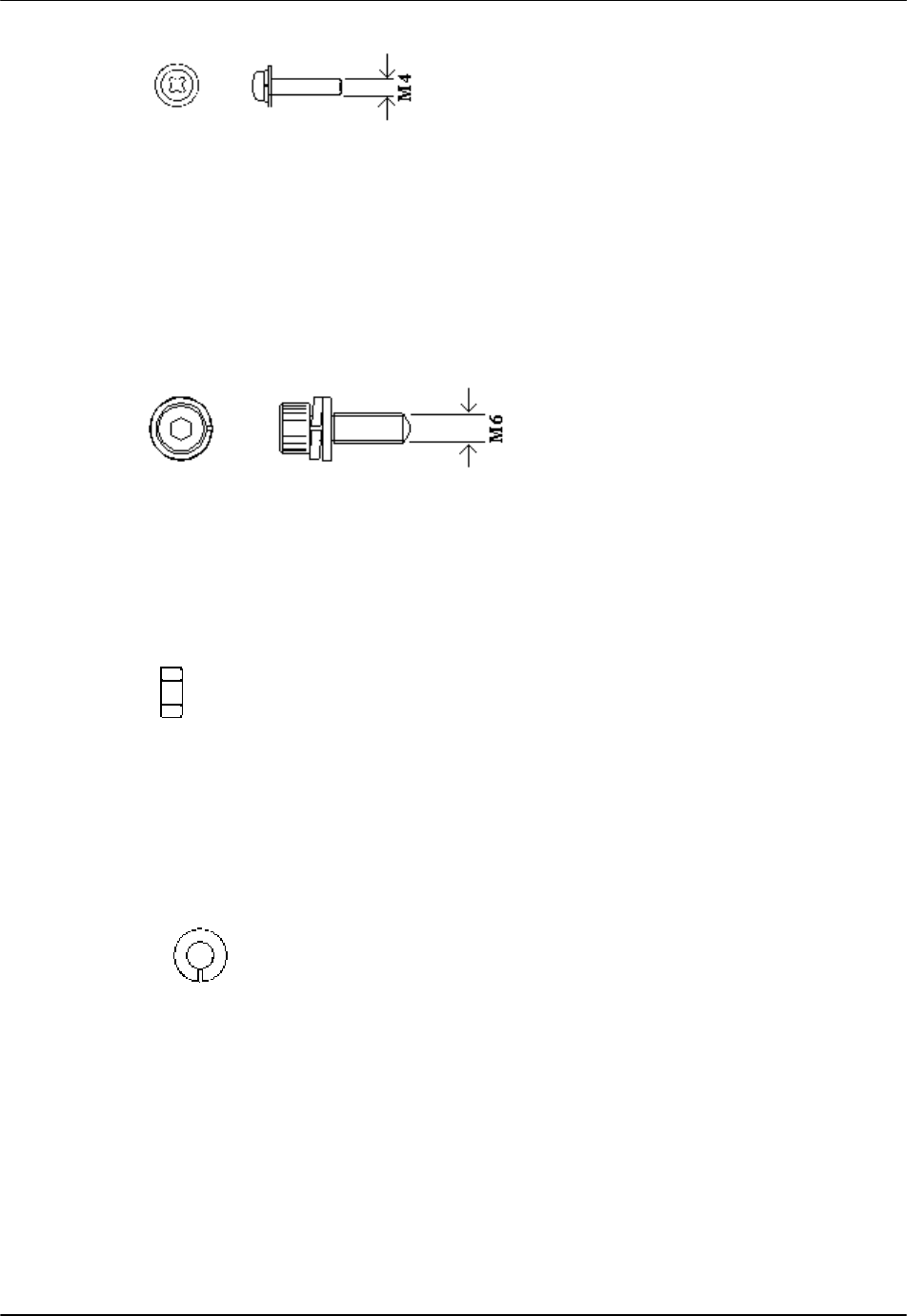

Figure 5: M4 Screw and Its Cross Head
1.1.2.4 M6 Screw
The M6 screw is used to mount the Mounting Plate onto the wall.
Figure 6: M6 Screw and Its Socket Head
1.1.2.5 M6 Spring Washer
Figure 7: M6 Spring Washer
1.1.2.6 M6 Plane Washer
Figure 8: M6 Plane Washer
