User Manual

How to put your
Leapers scope mount base
on your RWS/Diana rie

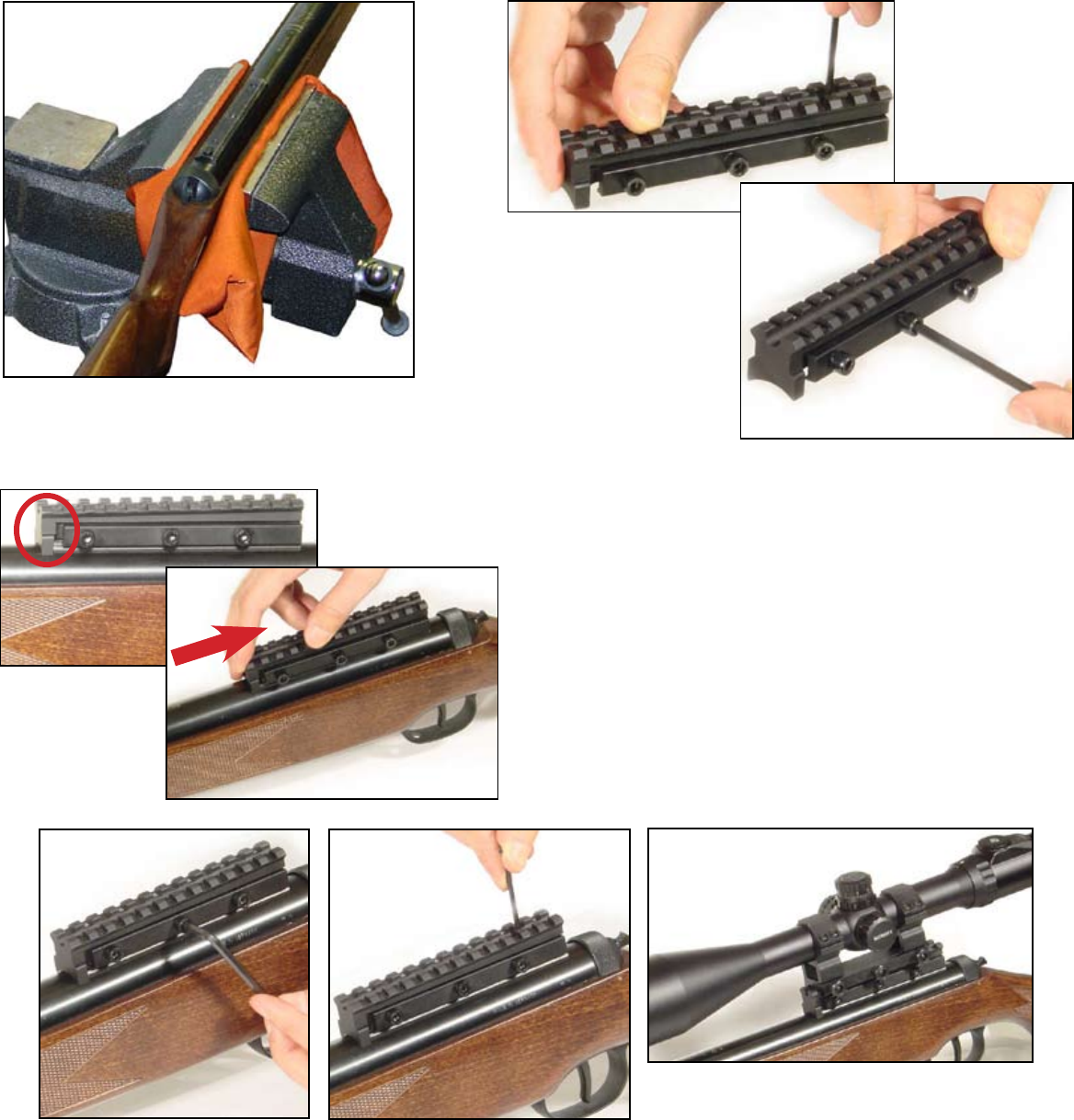

Place the airgun on a vise with pad-
ded jaws to protect the airgun.
1
2
Use the correct
included Allen
wrenches to loosen
the 3 side-locking
screws & the stop-
pin in the mount
base.
3
Hold the mount base in front of the dovetail.
Align the rear of the mount base with the
front end of the dovetail rail. Slide the mount
base backward on the dovetail rail until the
recoil stop shoulder of the mount base con-
tacts the front end of the dovetail rail.
4
Tighten the 3 side-lock-
ing screws to rmly lock
the mount base. Make
sure you don’t over-
tighten them.
5
Properly tighten the stop-
pin from the top of the
mount base.
6
The mount base is now available
for mounting a scope and either
1-piece or 2-piece mounts.
