- Product Summary
- Installation Guidelines
- Installation
- 1. Insert a slotted screwdriver into the slot at the top end of the unit and remove the cover by lifting it up (see Figure 2).
- 2. Using the flathead mounting screws, secure the base to the mounting surface either vertically or horizontally as required (see Figure 3).
- 3. Position the shock element and press it firmly into its socket.
- 4. If using the reed switch, use the two remaining screws to mount the magnet so its arrow is aligned with the arrow on the sensor case (see Figure 7).
- 5. Install the tamper switch as shown (see Figure 7).
- 6. Install the 4.7 k Ohm EOL resistor across the terminals of the external switch block.
- Setting the Detection Mode
- 1. Hold in the tamper spring. Continue to hold in while mov ing the DIP switches to their desired settings.
- 2. Set the DIP switches to the desired pulse count (see Table 1). The LED will start blinking once a DIP switch is moved.
- 3. Set the DIP Switches to the desired Gross Attack sensi tivity (See Table 2).
- 4. Release the tamper spring. The LED will flash quickly 3 times to indicate the settings have been programmed.
- 5. Repeat steps 1-4 each time you make a sensitivity change. It may then be necessary to reset the DIP switches to their proper device settings (See Sensor Set tings).
- Testing the Detection Modes
- Sensor Settings
- System Programming
- RF Testing
- Battery Replacement
- Specifications
1
,QVWDOODWLRQ,QVWUXFWLRQV
*(,QWHUORJL[
'
PRELIMINARY 10/1/03
Product Summary
The Learn Mode Shock Sensor has the following three main
functions:
• To detect the vibrations made by an intruder trying to
break a window or door.
• To detect a window or door opening.
• To detect tamper situations, such as an intruder remov-
ing the sensor cover or the sensor from the wall.
Vibrations cause a momentary open circuit in the shock ele-
ment of the sensor. The circuit closes again when the vibra-
tion stops. The sensor microcontroller “sees” the open/close
action as a pulse, causing the sensor to transmit an alarm
signal. The sensor has two different detection modes:
• Gross Attack - detect a violent blow sufficient in length to
trip sensor.
• Pulse Count - detect a sufficient number of less violent
blows (rapping or tapping).
The sensor includes an internal magnetic reed switch that
must be disabled if it is not used.
Extend the battery life of the sensor by adding a second 3-
volt lithium battery.
Installation Guidelines
• Learn the sensor before adjusting the shock sensitivity.
The sensor is shipped with the reed switch enabled and
open, and this is how it must be learned.
• Before permanently mounting the sensor, test it at the
intended location to make sure that the panel can
receive sensor signal transmissions. The sensor is an
RF device and there may be blind or non-operational
locations within the installation. Normally, these can be
overcome by moving the sensor or receiver.
• Always mount the shock sensor so that the detector is on
the frame and not on the glass. See Figure 2 for mount-
ing locations.
• Mount the sensor in a location where the structure can
transmit vibrations to the sensor.
• The sensor can be mounted on a vertical surface or on a
horizontal (flat) surface.
• Make sure the window fits snugly in the frame and
doesn’t move or rattle.
• Hold the sensor against the frame to make sure the sen-
sor base fits on the surface area of the frame and doesn’t
extend over the surface edges.

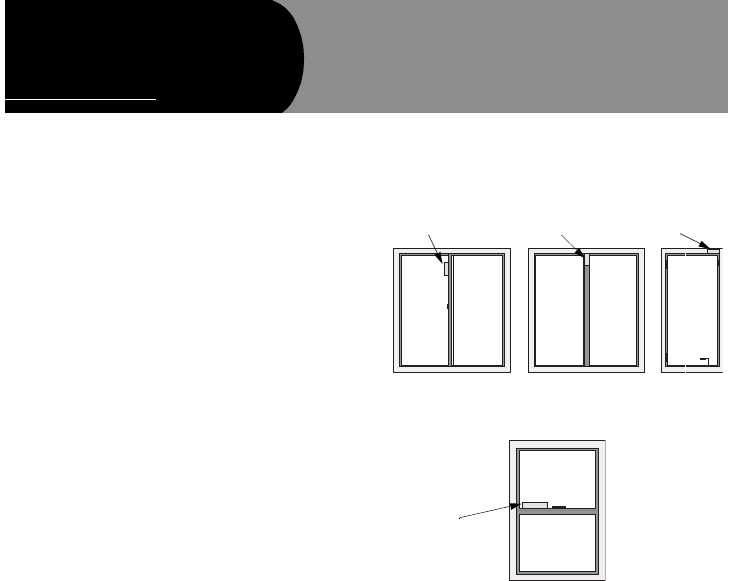

Figure 1. Mounting Options for Door/Window Sensor
Tools and Supplies
•
Control panel installation instructions
• Phillips screwdriver
• Slotted screwdriver (to pry off the cover)
• Two #6 x 2 cm flathead screws for mounting the sensor
(included)
• Two #6 x 1.5 cm screws for mounting the magnet
(included)
Vertical (Wall) Surface Mounting
Horizontal (Ledge) Surface Mounting
Shock Sensor
Shock Sensor
Shock Sensor
Shock Sensor
