2-25
Preparation before Use
The Large Capacity Feeder (1,500-sheet x 2) (Option)
The Optional cassettes will each hold plain paper, recycled paper or color paper.
The Large Capacity Feeder (1,500-sheet x 2) holds up to 3,000 sheets (1,500-sheet x 2) of plain paper
(80 g/m
2
) (or up to 3,500 sheets (1,750-sheet x 2) of 64 g/m
2
plain paper).
The following paper sizes are supported: A4, B5 and Letter.

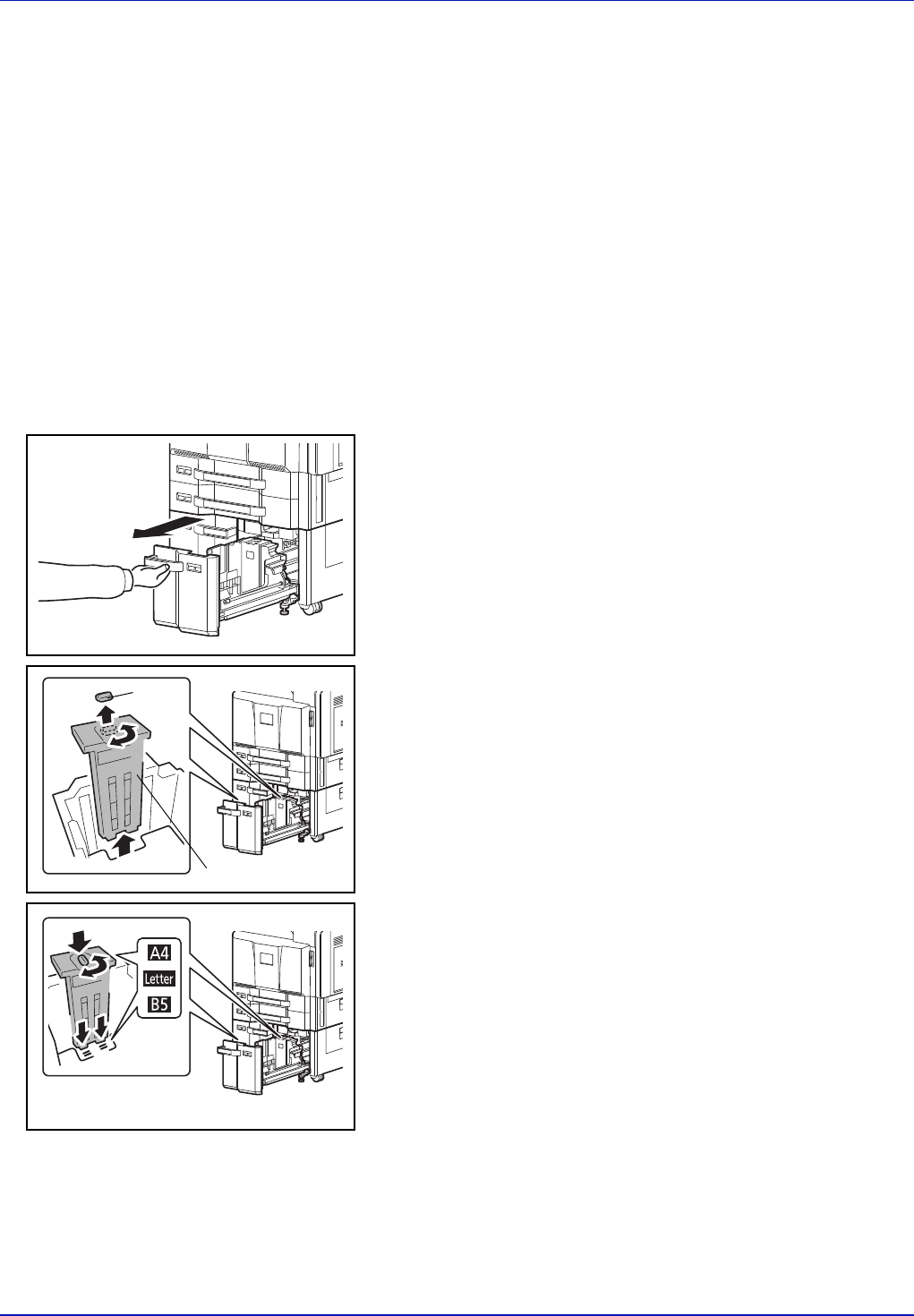

1 Pull the cassette out toward you until it stops.
2 Rotate the Paper Size Guide (A) clamp and remove. Pull the Paper
Size Guide (A) up and out.
3 Insert the Paper Size Guide (A) into the slot (bottom of cassette) for
the paper size to be used.
Make sure that the top of the paper size guide (A) matches the paper
size to be used, attach the clamp, and rotate the clamp to lock it.
Gently try moving the Paper Size Guide (A) to verify that it is fixed.
IMPORTANT
• When using media types other than plain paper (such as recycled or colored paper), always specify the media type and
paper weight settings. (Refer to Specifying Paper Size and Media Type for the Cassettes on page 2-30,Media Type Set.
(Paper type settings) on page 6-23.)
The cassettes can hold paper with weights up to 256 g/m
2
. If you are using a paper weight between 106 and 256 g/m
2
,
set the media type to Thick and set the weight of the paper you are using.
• Do not load thick paper that is heavier than 256 g/m
2
in the cassettes. Use the multi purpose tray for paper that is
heavier than 256 g/m
2
.
Paper Size Guide (A)
Clamp
