Preparation before Use
2-22
Loading Paper in the Cassettes
The standard cassettes
The 2 standard cassettes will each hold plain paper, recycled paper or color paper.
Cassette 1 and 2 hold up to 500 sheets of plain paper (80 g/m
2
) (or up to 550 sheets of 64 g/m
2
plain paper).
The following paper sizes are supported: A3, B4, A4, A4-R, B5, B5-R, A5-R, Ledger, Legal, Oficio II, 12 × 18",
Letter, Letter-R, Statement-R, Folio, 8K, 16K, 16K-R and 216 × 340 mm.

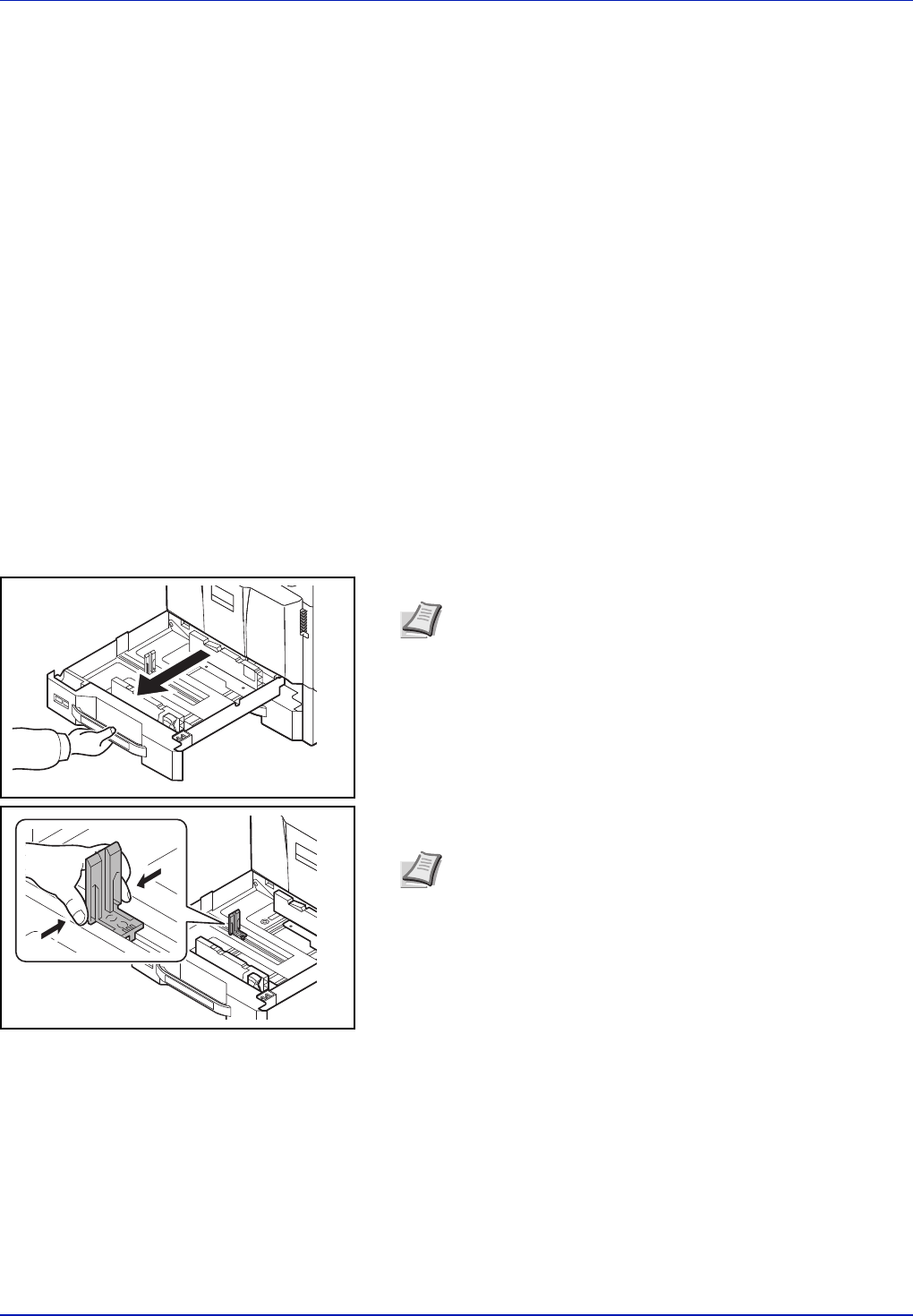

1 Pull the cassette out toward you until it stops.
2 Squeeze the ends of the bottom of the paper length guide and move
the guide to fit the length of the paper.
IMPORTANT
• When using media types other than plain paper (such as recycled or colored paper), always specify the media
type and paper weight settings. (Refer to Specifying Paper Size and Media Type for the Cassettes on page 2-30,
Media Type Set. (Paper type settings) on page 6-23.)
The cassettes can hold paper with weights between 60 and 256 g/m
2
. If you are using a paper weight between
106 and 256 g/m
2
, set the media type to Thick and set the weight of the paper you are using.
• Do not load thick paper that is heavier than 256 g/m
2
in the cassettes. Use the multi purpose tray for paper that is
heavier than 256 g/m
2
.
• If you wish to use 330 × 210 mm to 356 × 220 mm paper, contact a service technician.
Note Do not pull out more than one cassette at a time.
Note Paper sizes are marked on the cassette.
