Preparation before Use
2-14
Status Monitor
The Status Monitor shows a print system status message at the bottom right of the printing screen. You can also start
Embedded Web Server RX to check and change printer settings.
The Status Monitor is installed automatically during Printing System Driver installation.
Accessing the Status Monitor
Use either of the methods listed below to launch the Status Monitor.
• Launch when printing starts:
When you specify a printer and start a print job, one Status Monitor is launched for each printer name. If Status Monitor
startup is requested from multiple printers, Status Monitors are launched for each printer that issues the request.
• Launch from the Printing System Driver properties:
Click the Status Monitor button in the Advanced tab. Then click Open Status Monitor button in the Status Monitor
dialog box to launch the Status Monitor.
Exiting the Status Monitor
Use either of the methods listed below to exit the Status Monitor.
• Exit manually:
Right-click the Status Monitor icon in the taskbar and select Exit in the menu to exit the Status Monitor.
• Exit automatically:
The Status Monitor automatically shuts down after 5 minutes if it is not being used.
Screen Overview

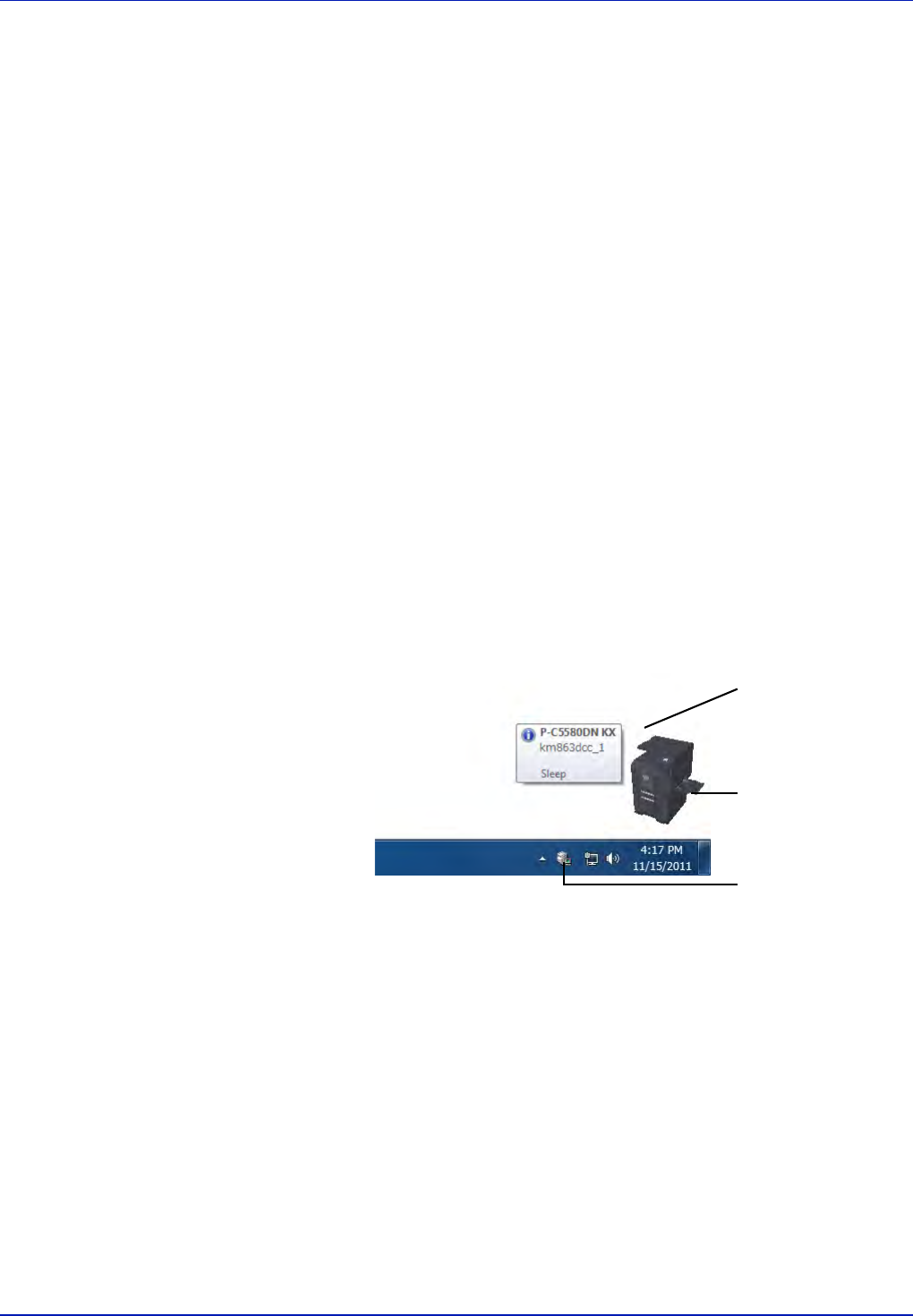

The screen overview of the Status Monitor is as follows.
Pop-up window
If an information notification event occurs, a pop-up window appears. This
window only appears when the 3D View is open on the desktop.
3D View
This shows the status of the monitored printer as a 3D image. You can
choose whether to show or hide the 3D view from the menu displayed
when you right-click the Status Monitor icon.
If an information notification event occurs, the 3D view and an alert sound
are used to notify you. For information on the sound notification settings,
refer to Notification Settings on page 2-16.
Pop-up window
3D View
Status Monitor icon
