Troubleshooting
8-34

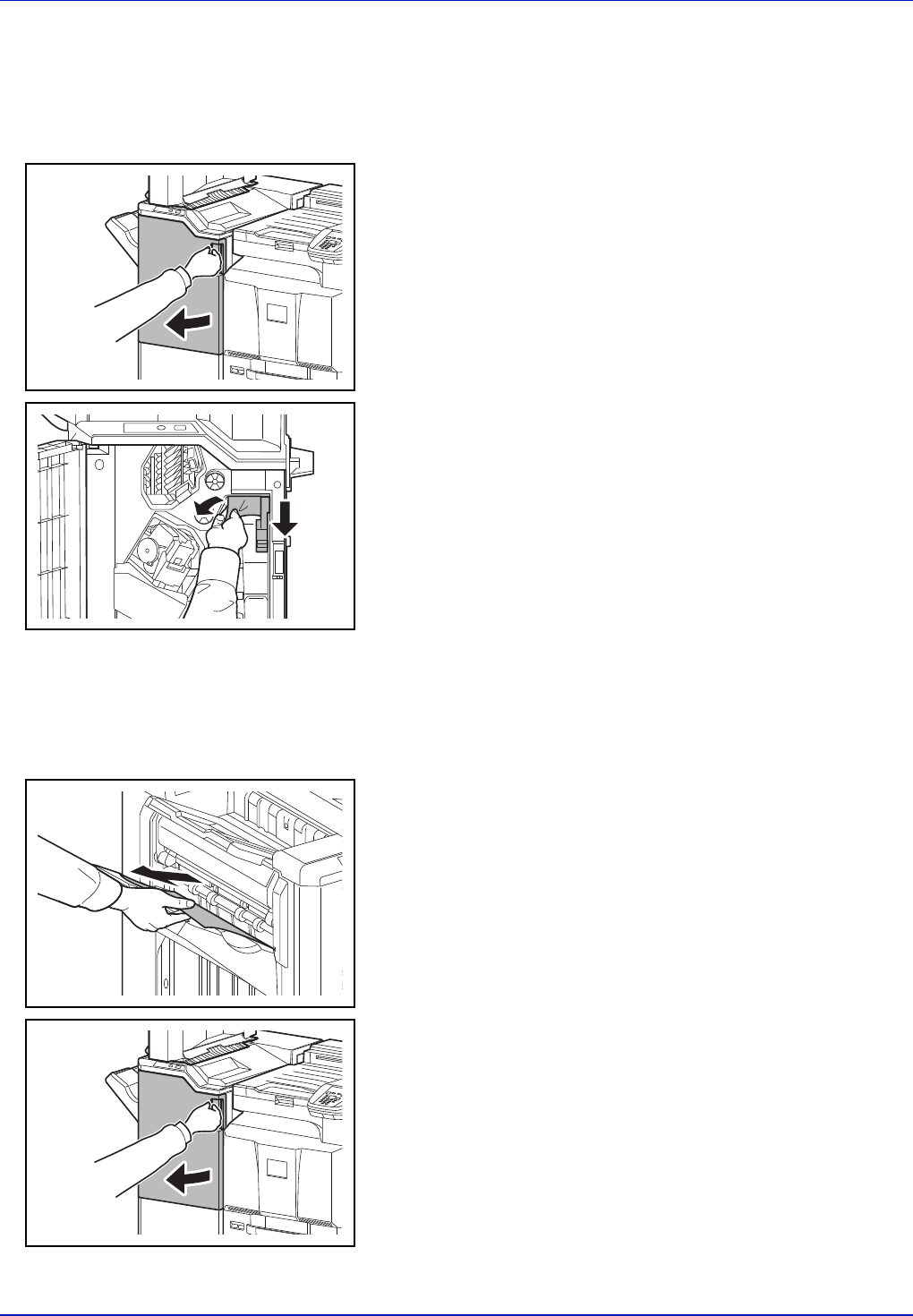

4,000-sheet Finisher (Option)
If a paper jam occurs in the optional 4,000-sheet finisher, follow the steps below to remove the jam.
Coupling Section
1 Open the front cover 1.
2 Open conveyor guide (D1) and remove the jammed paper.
3 Close the conveyor guide (D1) and front cover 1.
Tray A
1
If jammed paper is seen through the paper ejection slot, pull it toward
your side to remove it.
2 Open the front cover 1.
