Troubleshooting
8-16
Clearing Paper Jams
If paper jams in the paper transport system, or no paper sheets are fed at all, the Paper jam message appears and the
location of the paper jam (the component where the paper jam has occurred) is also indicated. Status Monitor or Embedded
Web Server RX can indicate the location of the paper jam (the component where the paper jam has occurred). Remove the
paper jam. After removing the paper jam, the printer will resume printing.
Possible Paper Jam Locations

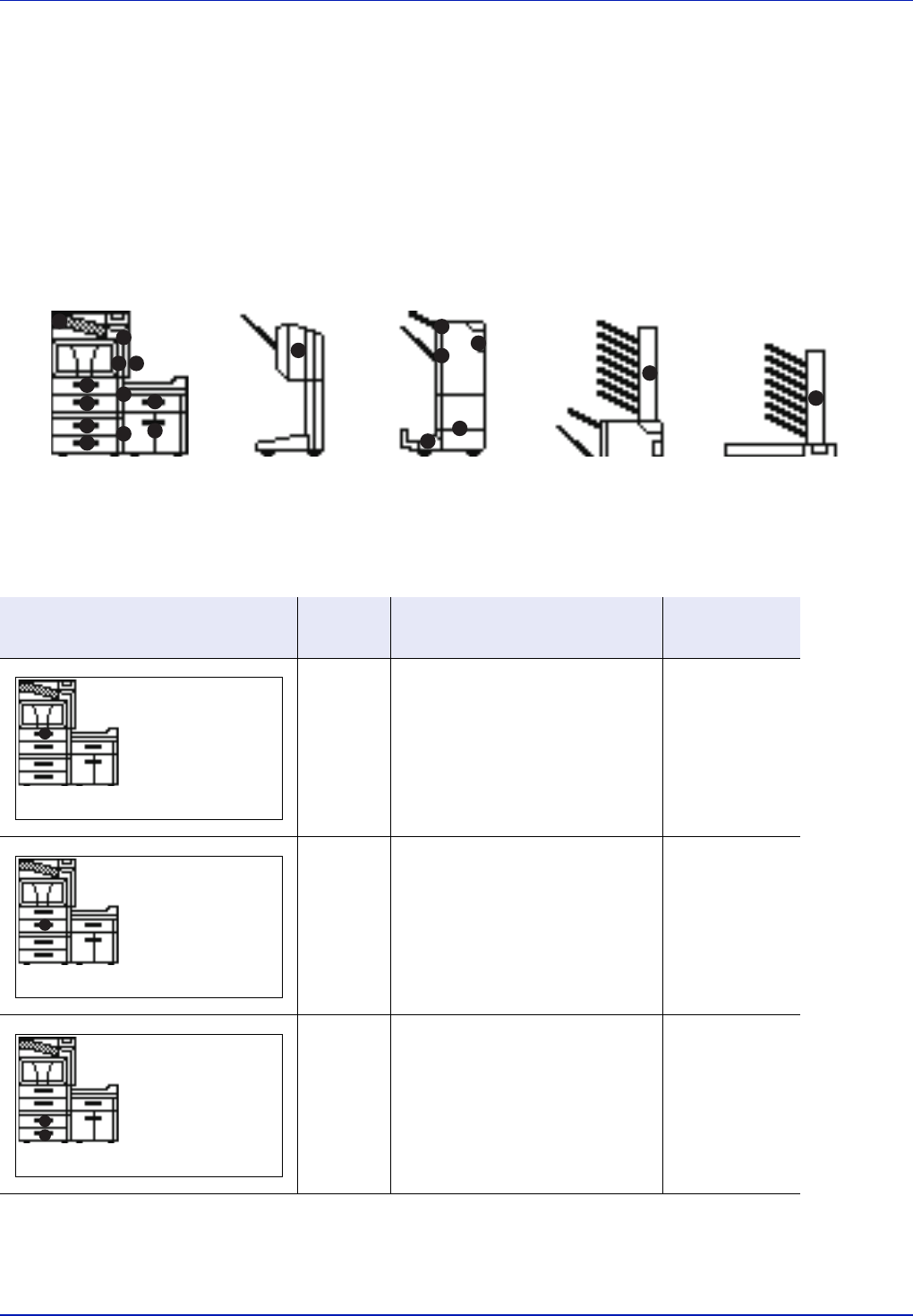

The figure below shows the printer's paper paths including the optional paper feeder. The locations where paper jams might
occur are also shown here, with each location explained in the table below. Paper jams can occur in more than one
component on the paper paths.
Paper Jam Message
Paper jam
location
Description
Reference
Page
A Paper is jammed at the paper
cassette (1).
page 8-19
B Paper is jammed at the paper
cassette (2).
page 8-20
C Paper is jammed at the optional
paper feeder cassette (3, 4).
page 8-21
H
H
H
H
H
H
I
I
A
B
D
J
K
F
G
E
E
E
C
C
1,000-sheet
Finisher
Mailbox (Installed
on the 4,000-
sheet Finisher)
Mailbox
(Installed on
the machine)
4,000-sheet
Finisher
Paper
jammed in
cassette 1.
[ Help ]
Paper
jammed in
cassette 2.
[ Help ]
Paper
jammed in
cassette #.
[ Help ]
