User's Manual

infiNET EX
™
LCD Handheld Remote Crestron MLX-2

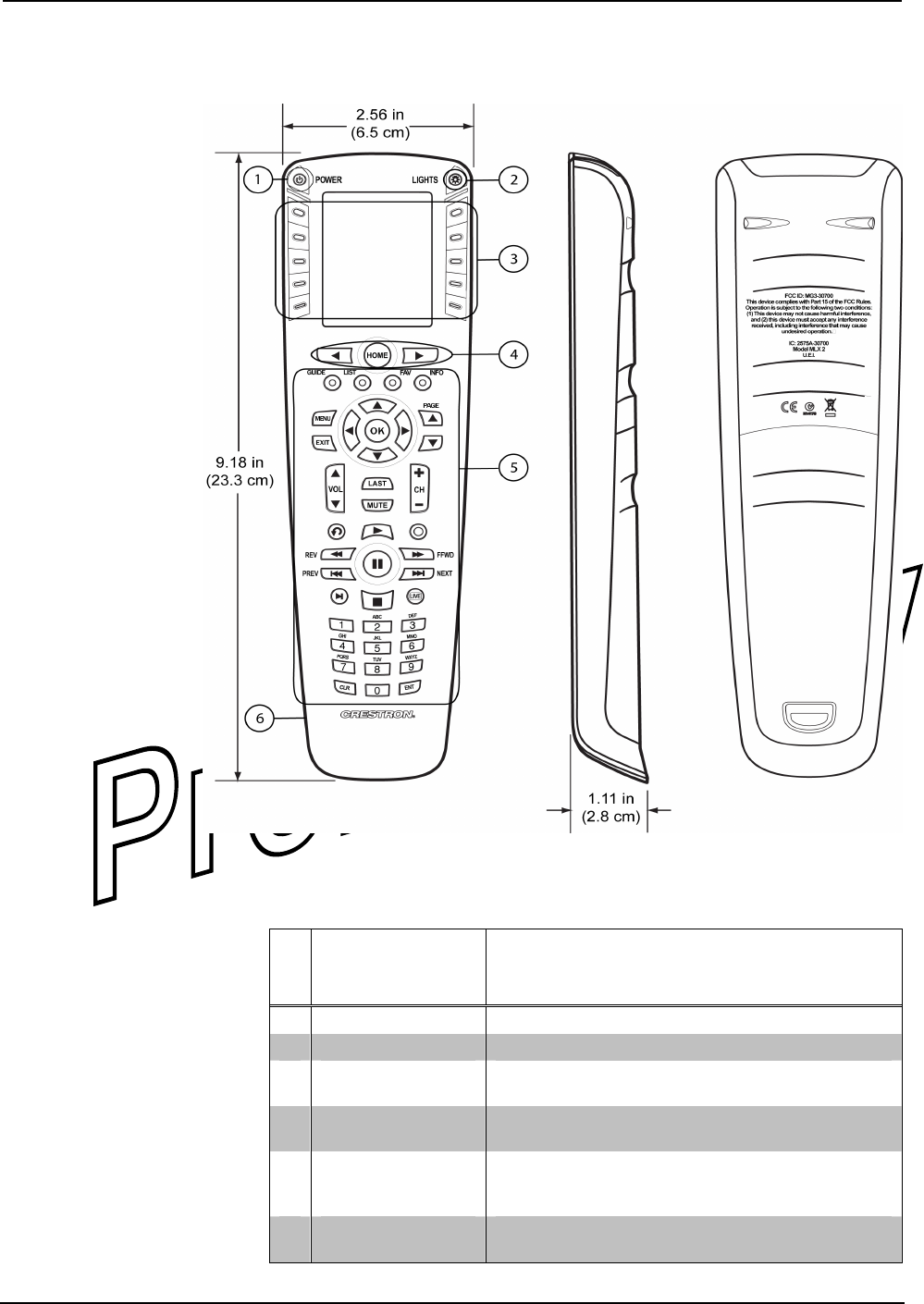

MLX-2 Overall Dimensions
MLX-2 Controls, Connectors, & Indicators
# CONNECTORS,
CONTROLS, &
INDICATORS
DESCRIPTION
1 POWER (1) programmable button for power functions.
2 LIGHTS (1) programmable button for lighting functions.
3
Menu Buttons (10) programmable buttons to actuate LCD menu
commands.
4 i, HOME, h
(3) programmable buttons to select LCD menu
pages
5 Device Control
(42) programmable function buttons labeled for
volume, mute, channel, onscreen menu navigation,
transport control, and alphanumeric entry.
6 USB Port
(1) USB port used for uploading programs, projects,
and firmware, using supplied USB cable.
4 • infiNET EX
™
LCD Handheld Remote: MLX-2 Operations & Installation Guide – DOC. 6739
