UAD Powered Plug-Ins Manual - 328 - Chapter 37: Nigel
Cabinet On/Off
Button
Enables or disables the Cabinet module within Preflex. The Cabinet is en-
gaged when the button indicator is bright red. You can use this switch to com-
pare the Cabinet settings to that of the original signal or bypass the entire
Cabinet section to reduce UAD DSP load.
Output Level
Meter
This LED-style VU meter displays the level of the signal at the output of the Cab-
inet. Just before the red ‘LED’ is illuminated, the signal is at 0dB. In order to
avoid overloading your host application signal path, adjust the Preflex output
level so that the signal is at or below 0dB.
Phasor Module
The Phasor is a frequency-variable comb-filter with low frequency oscillator
modulation. It is capable of producing dramatic sweeping and swooshing ef-
fects, including modern and classic sounds such as those produced by the
Mutron Bi-Phase, Small Stone and MXR series of phasors.
Sync Button This button puts the plug-in into Tempo Sync mode. See Chapter 8, “Tempo
Sync” for more information.
Rate Knob Sets the LFO modulation (sweep) rate of the Phasor. The available range is
from 0.03Hz to 10Hz.
Sweep Knobs The Sweep knobs determine the frequency range that will be affected by the
Phasor. The low and high frequency values can be independently adjusted.
This flexible arrangement allows the Phasor to affect a narrow or broad fre-
quency range, and also enables you to tune the frequency response charac-
teristic to match the signal if desired.

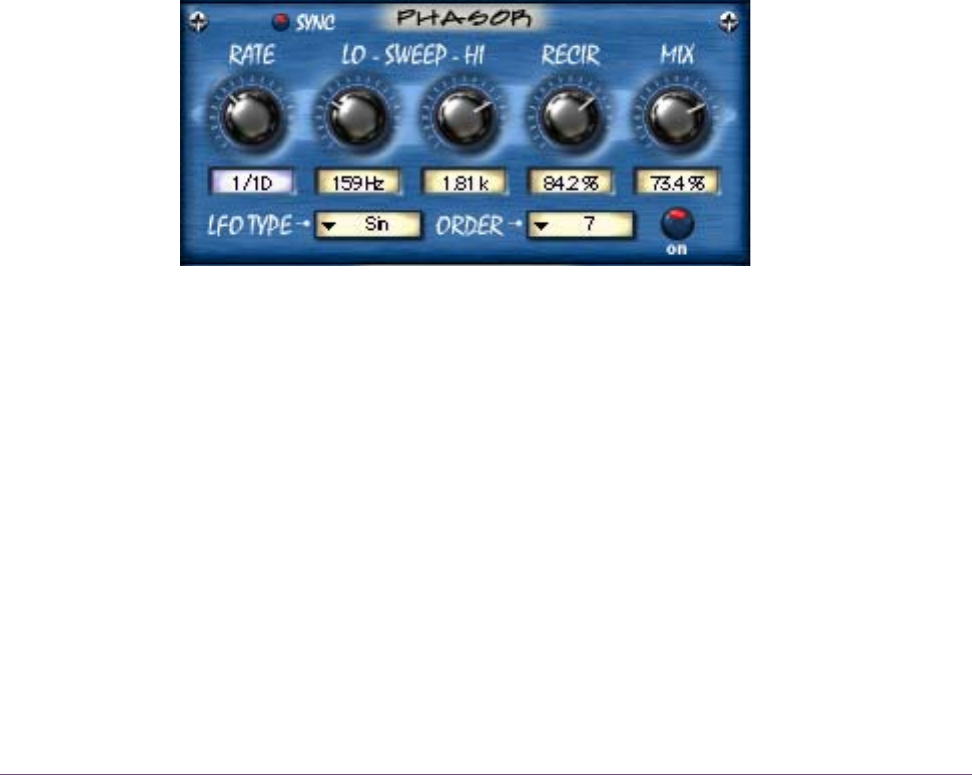

Figure 121. The Phasor plug-in window
