UAD Powered Plug-Ins Manual - 228 - Chapter 25: Neve 1081 Equalizer
The available low-mid band center frequencies are 220Hz, 270Hz, 330Hz,
390Hz, 470Hz, 560Hz, 680Hz, 820Hz, 1000Hz,1200Hz, and OFF.
When OFF is specified, the band is disabled. UAD CPU usage is not reduced
when the band is OFF.

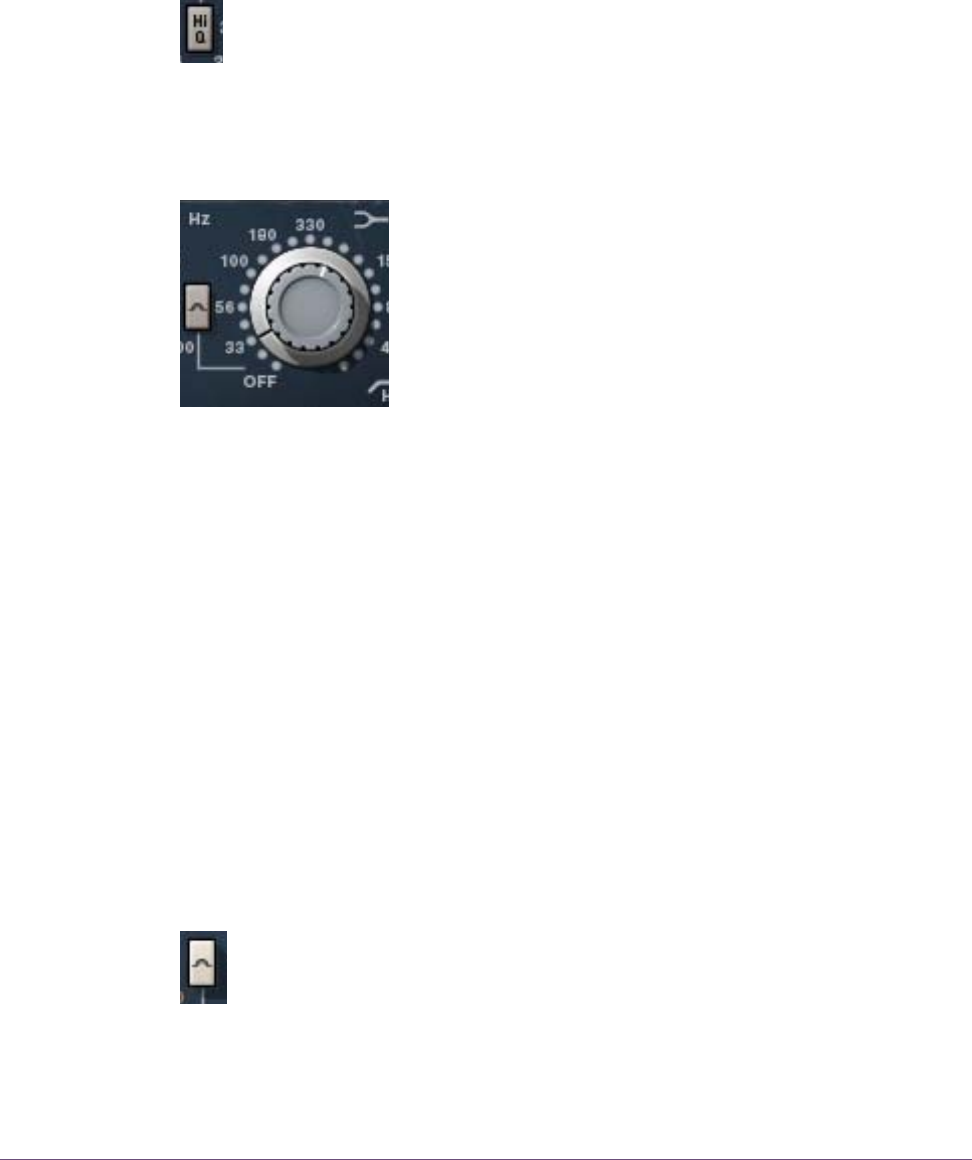

Low-Mid Q Select
The High Q button switches the response of the low-mid band from
“normal” to a narrower bandwidth for a sharper EQ curve. The band is
in normal mode by default; it’s in high Q mode when the button is
“down” (darker).
Low Band The low band delivers smooth low frequency shelving or
peak equalization. The inner knob controls the band
gain, and the outer ring selects the frequency or band
disable.
Low Gain
The equalization gain for the low band is selected with
the inner knob of the dual-concentric control. The available range is approx-
imately ±18dB.
Low Frequency
The low band frequency is selected with the outer ring of the dual-concentric
knob controls. The ring control can be dragged with the mouse, or click di-
rectly on the “silkscreen” text to specify a frequency or disable the band.
The available low band center frequencies are 33Hz, 56Hz, 100Hz, 180Hz,
330Hz, and OFF. When OFF is specified, the band is disabled. UAD CPU
usage is not reduced when the band is OFF.
Note: You can also click the shelving symbol above the knob to cycle through
the available values, or shift + click to step back one frequency.
Low Peak Select
The Low Peak button switches the low band from a shelving EQ to a
peaking EQ. The band is in shelf mode by default; it is in peak mode
when the button is “down” (darker).
