Owner's manual

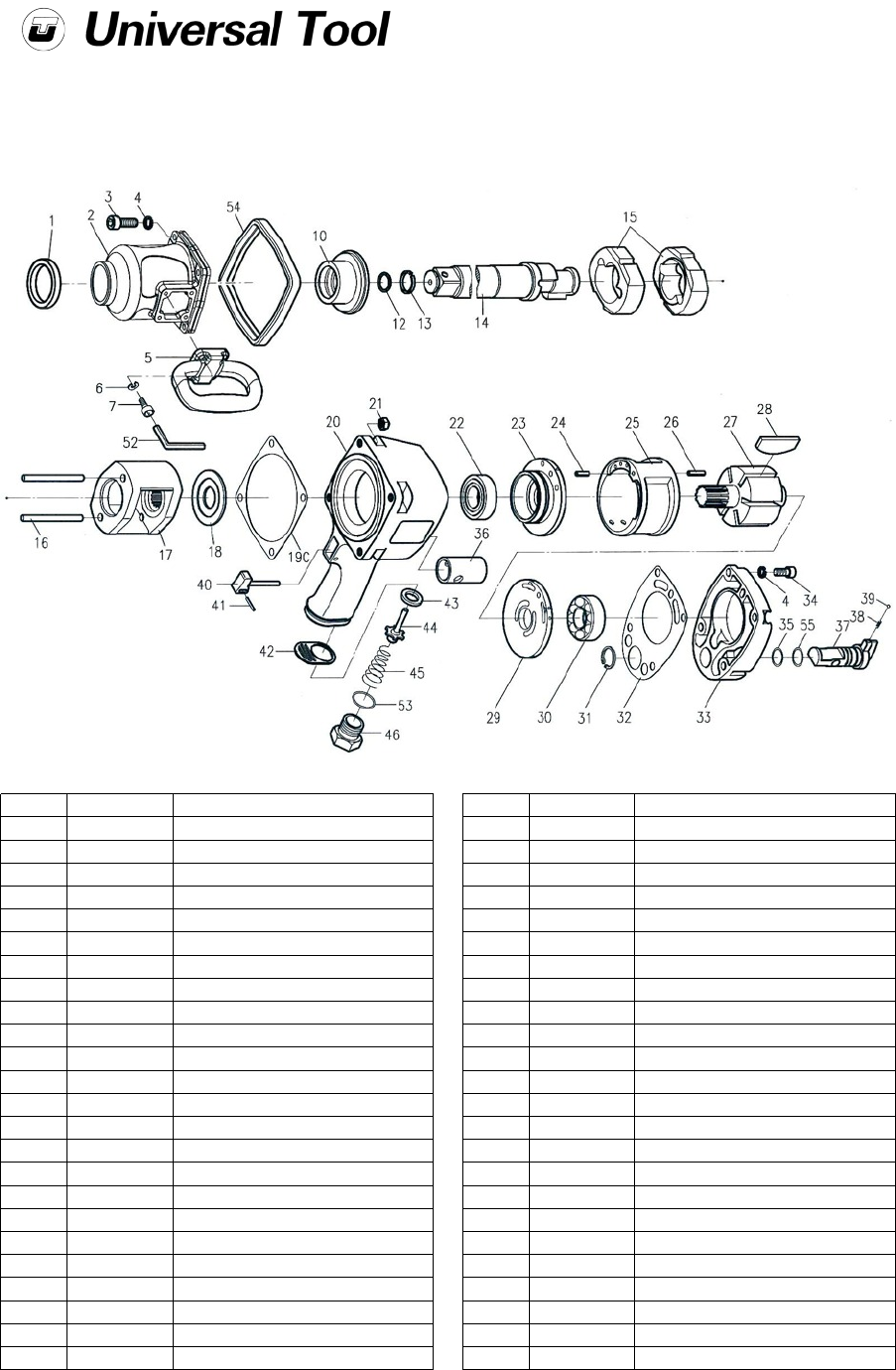

UT8423 1" Pistol Impact Wrench
Page No 3
Jul 2012 Ver 1.01
Ref No Part No Description
1 8423-01 Oil Seal
2 8423-02 Hammer Case
3 8423-03 Cap Screw (4)
4 8423-04 Spring Washer (8)
5 8423-05 D-Type Handle
6 8423-06 Spring Washer (4)
7 8423-07 Cap Screw (4)
10 8423-10 Anvil Bushing
12 8423-11 O-Ring
13 8423-12 Anvil Collar
14 8423-14S 2" Anvil
14 8423-14L 8" Anvil
15 8423-15 Hammer (2)
16 8423-16 Hammer Pin (2)
17 8423-17 Hammer Cage
18 8423-18 Rear Washer
19C 8423-19C Front Gasket
20 8423-20
Motor Housing (Inc. #36 Valve Sleeve)
21 8423-21 Lock Nut (4)
22 8423-22 Ball Bearing
23 8423-23 Front End Plate
24 8423-24 Spring Pin
25 8423-25 Cylinder
26 8423-26 Spring Pin
Ref No Part No Description
27 8423-27 Rotor
28 8423-28 Rotor Blade (6)
29 8423-29 Rear End Plate
30 8423-30 Ball Bearing
31 8423-31 Snap Ring
32 8423-32 Rear Gasket
33 8423-33 Rear Cover
34 8423-34 Cap Screw (4)
35 8423-35 O-Ring
36 8423-36 Valve Sleeve
37 8423-37 Reverse Valve
38 8423-38 Spring
39 8423-39 Steel Ball
40 8423-40 Trigger
41 8423-41 Spring Pin
42 8423-42 Exhaust Deflector
43 8423-43 Bushing
44 8423-44 Valve Stem
45 8423-45 Spring
46 8423-46 Air Inlet
52 8423-52 Hex. Wrench
53 8423-53 O-Ring
54 8423-54 Housing Band
55 8423-55 O-Ring
