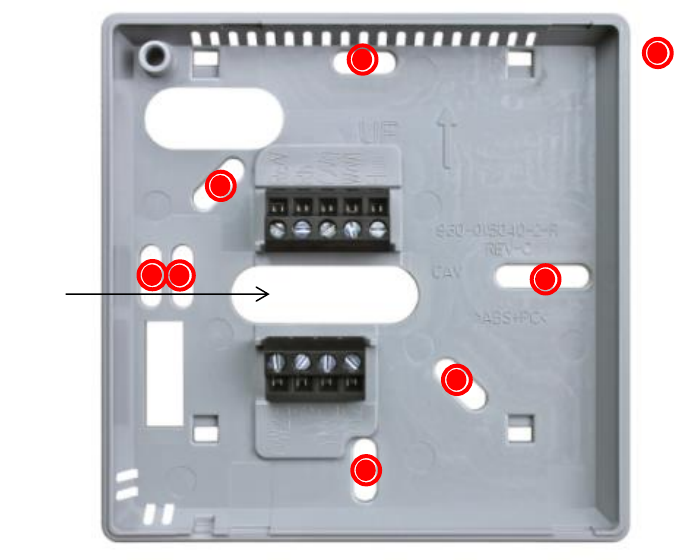

Fig. 4 -- Backplate Mounting

3. Drill 3/16--in. mounting holes in wall where marked. Thermostat may be mounted to a

standard junction box, if desired. Hole pattern on the Thermostat mounting base matches

junction box mounting holes.

4. Secure plastic mounting base to wall with screws and anchors provided. Use 2 screws

and 2 anchors provided for a secure attachment. Make sure all wires extend through hole

in mounting base.

5. Adjust length and routing of each wire to reach proper connector block and terminal on

mounting base with 1/4--in. (6 mm) extra wire.

6. Match and connect equipment wires to proper terminals of each connector block, being

careful not to over tighten the screws.
