10
A07166

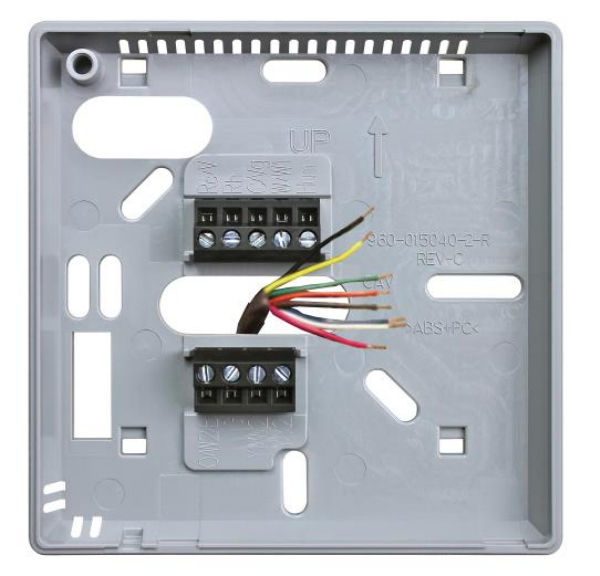

Fig. 5 -- Secure Wires to Terminal Strip
7. Push any excess wire into wall and against mounting base. Seal hole in wall to prevent air
leaks. Leaks can affect operation and cause incorrect temperature and/or humidity
measurement.
8. Reattach thermostat front to mounting base by first setting on at top of mounting base and
then push bottom corners of Display Module to snap into place. See Fig. 11.
