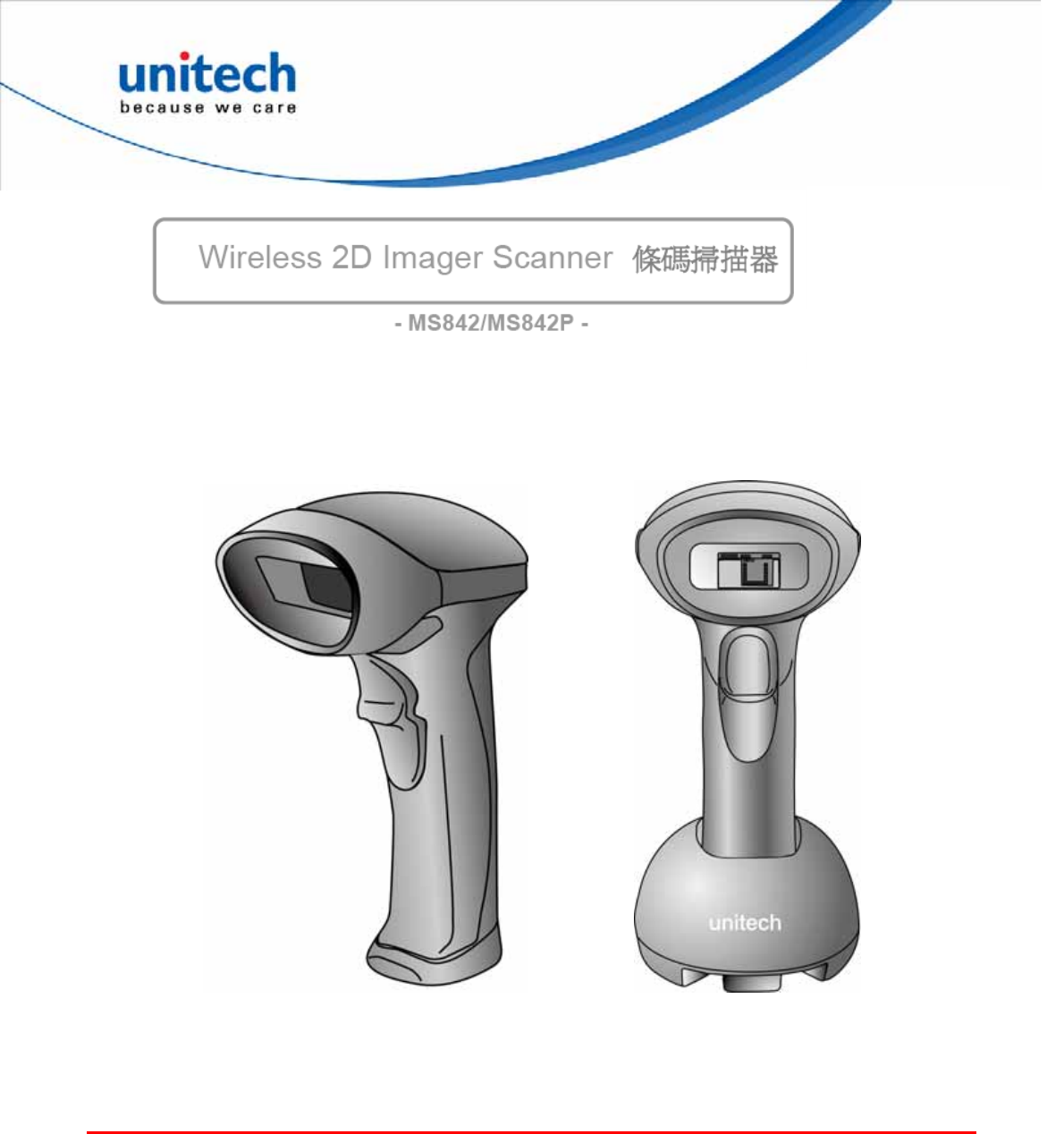

Wireless 2D Imager Scanner යᒘൿ༴ᕴ Epohmf!gps!NT95Y!xjsfmftt!tdboofs!! - MS842/MS842P !!!!!!!!!!! !!!!!!!!!!!!!!!NT95Y.3! User’s Manual Version 1.
Preface About This Manual This manual explains how to install, operate and maintain the MS842-series 2D scanners. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, such as photocopying, recording, or information storage and retrieval systems, without permission in writing from the manufacturer. The material in this manual is subject to change without notice. © Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved.
Regulatory Compliance Statements FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications.
European Conformity Statement Declaration of Conformity with regards to the R&TTE 1999/5/EC and EMC 89/336/ EEC directives. RoHS Statement This device conforms to RoHS (Reduction Of Hazardous Substances) European Union regulations that set maximum concentration limits on hazardous materials used in electrical and electronic equipment.
Table of Contents Preface About This Manual .................................................................................................................... i Regulatory Compliance Statements.................................................................................... ii FCC Warning Statement ......................................................................................................ii FCC Label Statement...................................................................................
Check Receive Errors ....................................................................................................... 24 Hardware Handshaking..................................................................................................... 24 Software Handshaking ...................................................................................................... 25 Host Serial Response Time-out ........................................................................................
UPC-A .................................................................................................................................. 45 Enable/Disable UPC-A...................................................................................................... 45 Transmit UPC-A Check Digit ............................................................................................. 45 UPC-A Preamble............................................................................................................
Convert UPC-E1 to UPC-A ................................................................................................. 52 Convert UPC-E1 to UPC-A (Enable/Disable) .................................................................... 52 Convert Code 39 to Code 32 .............................................................................................. 52 Convert Code 39 to Code 32 (Enable/Disable) ................................................................. 52 Convert I 2 of 5 to EAN-13..........
2D Symbologies.................................................................................................................. 60 PDF417............................................................................................................................. 60 MicroPDF417 .................................................................................................................... 61 Code 128 Emulation...............................................................................................
EAN-8 ............................................................................................................................... 72 UPC-A............................................................................................................................... 72 UPC-E............................................................................................................................... 72 Interleave 2 of 5 .....................................................................................
x Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Chapter 1 Introduction Introducing the MS842 Series Your new scanner has been configured at the factory with default settings. Since many host systems have unique formats and protocol requirements, Unitech provides a wide range of configurable features that may be selected using this barcode based configuration tool. Once the configuration is completed, the scanner stores the settings in nonvolatile memory (NOVRAM). NOVRAM saves the settings when the power is turned off.
Package Contents Please make sure the following contents are in the MS842 package box. If something is missing or damaged, please contact your Unitech representative.
[Scanner Body Aspect for MS842P] 1 2 3 4 5 6 1 LED indicator 2 Scanner Grip 3 Laser Exit Window 4 Trigger 5 Scanner Contact Points for Charge 6 Reset Pinhole 3 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
USB Interface This chapter describes how to set up the digital scanner with a USB host. The digital scanner connects directly to a USB host, or a powered USB hub, which powers it. No additional power supply is required. Note: Most computer monitors allow scanning the barcodes directly on the screen. When scanning from the screen, be sure to set the document magnification to a level where you can see the barcode clearly, and bars and/or spaces are not merging.
Connecting a USB Interface, Dongle Mode (for MS842P) Dongle Mode (with SCM support) In order to establish a proper connection between your computer and a scanner through a dongle, we suggest that you follow these step-by-step instructions: 1. Turn on your computer or laptop PC. 2. Insert a dongle into a USB port of the computer or laptop PC. 3. Scan the MAC address of the dongle by using the MS842P scanner. 4.
You can also connect the MS842P scanner optionally to another dongle by following the steps made below. 1. Scan the Disconnection barcode. 2. Insert another dongle into a USB port of the computer or laptop PC. 3. Scan the MAC address of the dongle by using the MS842P scanner. 4. When being successfully connected to the dongle, the scanner will beep shortly one time with a high tone. 6 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved.
Connecting a USB Interface, Cradle Mode (for MS842P) Cradle Mode (without SCM support) In order to establish a proper connection between your computer and a scanner through a cradle into which a dongle is inserted, we suggest that you follow these step-by-step instructions: 1. Turn on your computer or laptop PC. 2. Plug the adapter cable into the power socket on the cradle. 3. Plug the AC adapter cord into an electrical outlet. 4.
6. Scan the MAC address of the dongle by using the MS842P scanner. 7. When being successfully connected to the dongle, the scanner will beep shortly one time with a high tone. When being not used, the scanner can be also set on the cradle for battery charging. USB Host Parameters USB Device Type Select the desired USB device type. USB Virtual COM 8 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
USB Transmission Speed Parameters Use the following parameters to speed USB data transmission: USB Polling Interval - When using more current USB systems, use this parameter to set a lower interval in order to increase data transmission speed. Fast HID Keyboard - When configured as a USB HID keyboard device, use this parameter to increase the data transmission speed of printable (7-bit) ASCII characters.
Fast HID Keyboard This option transmits USB HID keyboard data at a faster rate. Note: Quick Emulation overrides Fast HID. USB Country Keyboard Types - Country Codes Scan the barcode corresponding to the keyboard type. This setting applies only to the USB HID Keyboard Emulation device. Note: When changing USB country keyboard types the decoder automatically resets and issues the standard startup beep sequences. 10 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved.
11 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
ASCII Character Set for USB USB Prefix/Suffix Values Full ASCII Code 39 Encode Char.
Full ASCII Code 39 Encode Char.acter Prefix/ Suffix Value Keystroke 1033 /A ! 1034 /B “ 1035 /C # 1036 /D $ 1037 /E % 1038 /F & 1039 /G ‘ 1040 /H ( 1041 /I ) 1042 /J * 1043 /K + 1044 /L , 1045 - - 1046 . .
Full ASCII Code 39 Encode Char.acter Prefix/ Suffix Value Keystroke 1068 D D 1069 E E 1070 F F 1071 G G 1072 H H 1073 I I 1074 J J 1075 K K 1076 L L 1077 M M 1078 N N 1079 O O 1080 P P 1081 Q Q 1082 R R 1083 S S 1084 T T 1085 U U 1086 V V 1087 W W 1088 X X 1089 Y Y 1090 Z Z 1091 %K [ 1092 %L \ 1093 %M ] 1094 %N ^ 1095 %O _ 1096 %W ` 1097 +A a 1098 +B b 1099 +C c 1100 +D d 1101 +E e 1102 +F f 14 Copyri
Full ASCII Code 39 Encode Char.acter Prefix/ Suffix Value Keystroke 1103 +G g 1104 +H h 1105 +I i 1106 +J j 1107 +K k 1108 +L l 1109 +M m 1110 +N n 1111 +O o 1112 +P p 1113 +Q q 1114 +R r 1115 +S s 1116 +T t 1117 +U u 1118 +V v 1119 +W w 1120 +X x 1121 +Y y 1122 +Z z 1123 %P { 1124 %Q | 1125 %R } 1126 %S ~ 1 The keystroke in bold transmits only if you enable Function Key Mapping. Otherwise, the unbolded keystroke transmits.
USB ALT Key Character Set ALT Keys Keystroke 2064 ALT 2 2065 ALT A 2066 ALT B 2067 ALT C 2068 ALT D 2069 ALT E 2070 ALT F 2071 ALT G 2072 ALT H 2073 ALT I 2074 ALT J 2075 ALT K 2076 ALT L 2077 ALT M 2078 ALT N 2079 ALT O 2080 ALT P 2081 ALT Q 2082 ALT R 2083 ALT S 2084 ALT T 2085 ALT U 2086 ALT V 2087 ALT W 2088 ALT X 2089 ALT Y 2090 ALT Z 16 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved.
USB GUI Key Character Set GUI Key Keystroke 3000 Right Control Key 3048 GUI 0 3049 GUI 1 3050 GUI 2 3051 GUI 3 3052 GUI 4 3053 GUI 5 3054 GUI 6 3055 GUI 7 3056 GUI 8 3057 GUI 9 3065 GUI A 3066 GUI B 3067 GUI C 3068 GUI D 3069 GUI E 3070 GUI F 3071 GUI G 3072 GUI H 3073 GUI I 3074 GUI J 3075 GUI K 3076 GUI L 3077 GUI M 3078 GUI N 3079 GUI O 3080 GUI P 3081 GUI Q 3082 GUI R 3083 GUI S 3084 GUI T 3085 GUI U 3086 GUI V 3087 GUI W 3088 GUI X
GUI Key Keystroke 3089 GUI Y 3090 GUI Z Note: GUI Shift Keys - The Apple™ iMac keyboard has an apple key on either side of the space bar. Windows-based systems have a GUI key to the left of the left ALT key, and to the right of the right ALT key.
USB Numeric Keypad Character Set Numeric Keypad Keystroke 6042 * 6043 + 6044 undefined 6045 - 6046 .
Extended Keypad Keystroke 7016 Down Arrow 7017 Left Arrow 7018 Right Arrow RS-232 Interface This chapter describes how to set up the digital scanner with an RS-232 host. Use the RS-232 interface to connect the digital scanner to point-of-sale devices, host computers, or other devices with an available RS-232 port (e.g., com port). Connecting an RS232 Interface Connect the digital scanner directly to the host computer. Note: Interface cables vary depending on configuration.
RS-232 Host Types To select an RS-232 host interface, scan one of the following barcodes. 1 Scanning Standard RS-232 activates the RS-232 driver, but does not change port settings (e.g., parity, data bits, handshaking). Selecting another RS-232 host type barcode changes these settings. The CUTE host disables all parameter scanning, including Set Defaults. If you inadvertently select CUTE, scan *Enable Parameter Barcode Scanning, and then change the host selection.
Baud Rate Baud rate is the number of bits of data transmitted per second. Set the digital scanner's baud rate to match the baud rate setting of the host device. Otherwise, data may not reach the host device or may reach it in distorted form. Note: The digital scanner does not support baud rates below 9600. 22 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Parity A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements. Select Odd parity to set the parity bit value to 0 or 1, based on data, to ensure that the coded character contains an odd number of 1 bits. Select Even parity to set the parity bit value is set to 0 or 1, based on data, to ensure that the coded character contains an even number of 1 bits. Select None when no parity bit is required.
Check Receive Errors Select whether or not to check the parity, framing, and overrun of received characters. The parity value of received characters is verified against the parity parameter selected above. Hardware Handshaking The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Disable Standard RTS/CTS handshaking to transmit scan data as it becomes available.
RTS/CTS Option 1: If you select RTS/CTS Option 1, the digital scanner asserts RTS before transmitting and ignores the state of CTS. The scanner de-asserts RTS when the transmission completes. RTS/CTS Option 2: If you select Option 2, RTS is always high or low (user-programmed logic level). However, the digital scanner waits for CTS to be asserted before transmitting data. If CTS is not asserted within Host Serial Response Time-out (default), the scanner issues an error indication and discards the data.
when a time-out occurs. ENQ: If you select this option, the digital scanner waits for an ENQ character from the host before transmitting data. If it does not receive an ENQ within the Host Serial Response Time-out, the digital scanner issues an error indication and discards the data. The host must transmit an ENQ character at least every Host Serial Response Time-out to prevent transmission errors. ACK/NAK with ENQ: This combines the two previous options.
Host Serial Response Time-out This parameter specifies how long the digital scanner waits for an ACK, NAK, or CTS before determining that a transmission error occurred. This only applies when in one of the ACK/NAK software handshaking modes, or RTS/CTS hardware handshaking mode. RTS Line State This parameter sets the idle state of the Serial Host RTS line. Scan a barcode below to select Low RTS or High RTS line state. 27 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved.
Beep on If you enable this parameter, the digital scanner issues a beep when it detects a character on the RS-232 serial line. indicates an illegal entry or other important event. Intercharacter Delay This parameter specifies the intercharacter delay inserted between character transmissions. 28 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
ASCII Character Set for Serial Hosts You can assign the values in the table made below as prefixes or suffixes for ASCII character data transmission.
Prefix/Suffix Value Full ASCII Code 39 Encode Character ASCII Character 1033 /A ! 1034 /B " 1035 /C # 1036 /D $ 1037 /E % 1038 /F & 1039 /G ‘ 1040 /H ( 1041 /I ) 1042 /J * 1043 /K + 1044 /L , 1045 - - 1046 . .
Prefix/Suffix Value Full ASCII Code 39 Encode Character ASCII Character 1068 D D 1069 E E 1070 F F 1071 G G 1072 H H 1073 I I 1074 J J 1075 K K 1076 L L 1077 M M 1078 N N 1079 O O 1080 P P 1081 Q Q 1082 R R 1083 S S 1084 T T 1085 U U 1086 V V 1087 W W 1088 X X 1089 Y Y 1090 Z Z 1091 %K [ 1092 %L \ 1093 %M ] 1094 %N ^ 1095 %O _ 1096 %W ` 1097 +A a 1098 +B b 1099 +C c 1100 +D d 1101 +E e 1102 +F f 31 Co
Prefix/Suffix Value Full ASCII Code 39 Encode Character ASCII Character 1103 +G g 1104 +H h 1105 +I i 1106 +J j 1107 +K k 1108 +L l 1109 +M m 1110 +N n 1111 +O o 1112 +P p 1113 +Q q 1114 +R r 1115 +S s 1116 +T t 1117 +U u 1118 +V v 1119 +W w 1120 +X x 1121 +Y y 1122 +Z z 1123 %P { 1124 %Q | 1125 %R } 1126 %S ~ 1127 Undefined 7013 ENTER 32 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved.
Chapter 2 Output Data Editing Transmit Code ID Character A Code ID character identifies the code type of a scanned barcode. This is useful when decoding more than one code type. In addition to any single character prefix already selected, the Code ID character is inserted between the prefix and the decoded symbol. Select no Code ID character, a Symbol Code ID character, or an AIM Code ID character.
Scan Data Transmission Format To change the scan data format, scan one of the following eight barcodes corresponding to the desired format. Note: If using this parameter, do not use ADF rules to set the prefix/suffix. To set values for the prefix and/or suffix, see Prefix/Suffix Values. 34 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
FN1 Substitution Values The wedge and USB HID keyboard hosts support a FN1 Substitution feature. Enabling this substitutes any FN1 character (0x1b) in an EAN128 barcode with a value. This value defaults to 7013 (Enter key). When using host commands to set the FN1 substitution value, set the key category parameter to 1, and then set the 3-digit keystroke value. See the ASCII character set table for the current host interface for the desired value. To select a FN1 substitution value via barcode menus: 1.
36 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Chapter 3 Barcode Setup Menu User Preferences Set Default Parameter You can reset the digital scanner to two types of defaults: factory defaults or custom defaults. Scan the appropriate barcode below to reset the digital scanner to its default settings and/or set its current settings as custom defaults. Set Defaults - Scan this barcode to reset all default parameters.
Beeper Tone To select a decode beep frequency (tone), scan one of the following barcodes. Beeper Volume To select a beeper volume, scan the Low Volume, Medium Volume, or High Volume barcode. Suppress Power-up Beeps Select whether or not to suppress the digital scanner’s power-up beeps. 38 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Beeper Preferences Scan a barcode below to select whether or not the digital scanner beeps after a good decode. If selecting Do Not Beep After Good Decode, the beeper still operates during parameter menu scanning and to indicate error conditions. Beeper Duration To select the duration for the beeper, scan one of the following barcodes. Trigger Modes Select one of the following trigger modes for the digital scanner: Standard (Level) - A trigger pull activates decode processing.
*Standard (Level) Auto Aim Low Power Mode This parameter determines whether or not the digital scanner enters low power mode after a decode attempt. If disabled, power remains on after each decode attempt. Time Delay to Low Power Mode This parameter sets the time the decoder remains active after decoding. After a scan session, the decoder waits this amount of time before entering Low Power Mode. Note: This parameter only applies when Power Mode is set to Low. 40 Copyright 2013 Unitech Electronics Co.
Video Mode In this mode the decoder behaves as a video camera as long as the trigger is active. Upon trigger release, the decoder returns to Decode Mode. Scan the Video Mode barcode to temporarily enter Video Capture Mode. Image File Format Selector Select an image format appropriate for the system (BMP, TIFF, or JPEG). The decoder stores captured images in the selected format. 41 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co.
Video View Finder Select Enable Video View Finder to project the video view finder while in Image Mode, or Disable Video View Finder to turn the video view finder off. 42 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Chapter 4 Barcode Symbologies Introduction This section allows you to change settings for each symbology. After selecting a symbology from the scanner settings section, you can change the options for that symbology. To change any attribute's setting, double click it in the settings workspace. Below is a list of supported symbologies with configurable settings. For in depth options for each symbology, please refer to the help file.
Symbol Code Identifiers The Symbol Code Characters are listed below in the table.
UPC-A Enable/Disable UPC-A To enable or disable UPC-A, scan the appropriate barcode below. Transmit UPC-A Check Digit The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate barcode below to transmit the barcode data with or without the UPC-A check digit. It is always verified to guarantee the integrity of the data. UPC-A Preamble Preamble characters are part of the UPC symbol, and include Country Code and System Character.
UPC-E Enable/Disable UPC-E To enable or disable UPC-E, scan the appropriate barcode below. Transmit UPC-E Check Digit The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate barcode below to transmit the barcode data with or without the UPC-E check digit. It is always verified to guarantee the integrity of the data. UPC-E Preamble Preamble characters are part of the UPC symbol, and include Country Code and System Character.
Code 39 Enable/Disable Code 39 To enable or disable Code 39, scan the appropriate barcode below. Code 39 Check Digit Verification Enable this feature to check the integrity of all Code 39 symbols to verify that the data complies with specified check digit algorithm. Only Code 39 symbols which include a modulo 43 check digit are decoded. Enable this feature if the Code 39 symbols contain a Modulo 43 check digit.
Code 39 Full ASCII Conversion Code 39 Full ASCII is a variant of Code 39 which pairs characters to encode the full ASCII character set. To enable or disable Code 39 Full ASCII, scan the appropriate barcode below. Note: You cannot enable Trioptic Code 39 and Code 39 Full ASCII simultaneously. Code 39 Full ASCII to Full ASCII Correlation is host-dependent, and is therefore described in the ASCII Character Set Table for the appropriate interface.
UPC-E1 Preamble Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are three options for transmitting a UPC-E1 preamble to the host device: transmit System Character only, transmit System Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to match the host system. EAN-13/JAN-13 Enable/Disable EAN-13/JAN-13 To enable or disable EAN-13/JAN-13, scan the appropriate barcode below.
Bookland ISBN Format If Bookland EAN is enabled, select one of the following formats for Bookland data: Bookland ISBN-10 - The decoder reports Bookland data starting with 978 in traditional 10-digit format with the special Bookland check digit for backward-compatibility. Data starting with 979 is not considered Bookland in this mode. Bookland ISBN-13 - The decoder reports Bookland data (starting with either 978 or 979) as EAN-13 in 13-digit format to meet the 2007 ISBN-13 protocol.
Code 128 Enable/Disable Code 128 To enable or disable Code 128, scan the appropriate barcode below. GS1-128 (formerly UCC/EAN-128) Enable/Disable GS1-128 To enable or disable GS1-128, scan the appropriate barcode below. ISBT 128 Enable/Disable ISBT 128 ISBT 128 is a variant of Code 128 used in the blood bank industry. Scan a barcode below to enable or disable ISBT 128. If necessary, the host must perform concatenation of the ISBT data. 51 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved.
Convert UPC-E to UPC-A Convert UPC-E to UPC-A (Enable/Disable) Enable this to convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). Disable this to transmit UPC-E decoded data as UPC-E data, without conversion. Convert UPC-E1 to UPC-A Convert UPC-E1 to UPC-A (Enable/Disable) Enable this to convert UPC-E1 decoded data to UPC-A format before transmission.
Convert I 2 of 5 to EAN-13 Convert I 2 of 5 to EAN-13 (Enable/Disable) Enable this parameter to convert 14-character I 2 of 5 codes to EAN-13, and transmit to the host as EAN-13. To accomplish this, the I 2 of 5 code must be enabled, and the code must have a leading zero and a valid EAN-13 check digit. Trioptic Code 39 Enable/Disable Trioptic Code 39 Trioptic Code 39 is a variant of Code 39 used in the marking of computer tape cartridges. Trioptic Code 39 symbols always contain six characters.
Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 To enable or disable Interleaved 2 of 5, scan the appropriate barcode below, and select an Interleaved 2 of 5 length. Set Lengths for Interleaved 2 of 5 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Set lengths for I 2 of 5 to any length, one or two discrete lengths, or lengths within a specific range. The range for Interleaved 2 of 5 lengths is 0 - 55.
Coabar Enable/Disable Codabar To enable or disable Codabar, scan the appropriate barcode below. Set Lengths for Codabar The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Set lengths for Codabar to any length, one or two discrete lengths, or lengths within a specific range. One Discrete Length - Select this option to decode only Codabar symbols containing a selected length.
Length Within Range - Select this option to decode a Codabar symbol with a specific length range. Select lengths using numeric barcodes in the appendix of Numeric Barcodes. For example, to decode Codabar symbols containing between 4 and 12 characters, first scan Codabar - Length Within Range. Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To correct an error or change the selection, scan Cancel.
Inverse 1D This parameter sets the 1D inverse decoder setting. Options are: Regular Only - the decoder decodes regular 1D bar codes only. Inverse Only - the decoder decodes inverse 1D bar codes only. Inverse Autodetect - the decoder decodes both regular and inverse 1D bar codes. Postal Code Symbologies US Postnet To enable or disable US Postnet, scan the appropriate barcode below. UK Postal To enable or disable UK Postal, scan the appropriate barcode below.
GS1 (Globe Standard 1) DataBar GS1 DataBar Limited GS1 DataBar Limited Security Level The decoder offers four levels of decode security for GS1 DataBar Limited barcodes. There is an inverse relationship between security and decoder aggressiveness. Increasing the level of security may result in reduced aggressiveness in scanning, so only choose the level of security necessary. Level 1 – No clear margin required.
Note: It may result in erroneous decoding due to Databar Limited and UPC symbologies. GS1 DataBar Expanded Netherlands KIX Code To enable or disable Netherlands KIX Code, scan the appropriate barcode below. Australia Post To enable or disable Australia Post, scan the appropriate barcode below. 59 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Composite Symbologies Composite CC-C Scan a barcode below to enable or disable Composite barcodes of type CC-C. Composite CC-A/B Scan a barcode below to enable or disable Composite barcodes of type CC-A/B. Note: If you enable this code type, also see the section -- UPC Composite Mode. Composite TLC-39 Scan a barcode below to enable or disable Composite barcodes of type TLC-39. 2D Symbologies PDF417 To enable or disable PDF417, scan the appropriate barcode below.
MicroPDF417 To enable or disable MicroPDF417, scan the appropriate barcode below. Code 128 Emulation Enable this parameter to transmit data from certain MicroPDF417 symbols as Code 128. AIM Code ID Character must be enabled for this parameter to work. Scan a barcode below to enable or disable Code 128 Emulation. Data Matrix To enable or disable Data Matrix, scan the appropriate barcode below. Data Matrix Inverse This parameter sets the Data Matrix inverse decoder setting.
Decode Mirror Images (Data Matrix Only) Select an option for decoding mirror image Data Matrix barcodes: Always - decode only Data Matrix barcodes that are mirror images Never - do not decode Data Matrix barcodes that are mirror images Auto - decode both mirrored and unmirrored Data Matrix barcodes. Maxicode To enable or disable Maxicode, scan the appropriate barcode below. QR Code To enable or disable QR Code, scan the appropriate barcode below. 62 Copyright 2013 Unitech Electronics Co., Ltd.
QR Inverse This parameter sets the QR inverse decoder setting. Options are: Regular Only - the decoder decodes regular QR barcodes only. Inverse Only - the decoder decodes inverse QR barcodes only. Inverse Autodetect - the decoder decodes both regular and inverse QR barcodes. MicroQR To enable or disable MicroQR, scan the appropriate barcode below. Aztec To enable or disable Aztec, scan the appropriate barcode below. 63 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved.
Aztec Inverse This parameter sets the Aztec inverse decoder setting. Options are: Regular Only - the decoder decodes regular Aztec barcodes only. Inverse Only - the decoder decodes inverse Aztec barcodes only. Inverse Autodetect - the decoder decodes both regular and inverse Aztec barcodes. Redundancy Level The decoder offers four levels of decode redundancy. Select higher redundancy levels for decreasing levels of barcode quality. As redundancy levels increase, the decoder’s aggressiveness decreases.
Redundancy Level 3 Code types other than the following must be successfully read twice before being decoded.
Security Level 3: If you selected Security Level 2 and misdecodes still occur, select this security level. Be advised, selecting this option is an extreme measure against mis-decoding severely out of spec barcodes. Selecting this level of security significantly impairs the decoding ability of the decoder. If you need this level of security, try to improve the quality of the barcodes. Intercharacter Gap Size The Code 39 and Codabar symbologies have an intercharacter gap that is typically quite small.
Macro PDF User Indications In this mode the decoder provides the following feedback.
By using Passthrough All Symbols mode every user decode is transmitted to the host where the host software can provide the appropriate feedback. Transmit Macro PDF Control Header When enabled, this activates transmission of the control header, which contains the segment index and the file ID, in Macro PDF symbols. For example, the field may be: \92800000\725\120\343. The five digits after the \928 are the segment index (or block index), and \725\120\343 is the file ID.
Escape Characters This enables the backslash (\) character as an Escape character for systems that can process transmissions containing special data sequences. Scan a barcode below to either format special data according to the GLI (Global Label Identifier) protocol, or to disable this parameter. This parameter only affects the data portion of a Macro PDF symbol transmission; the Macro PDF Control Header (if enabled) is always sent with GLI formatting.
70 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Appendix A Sample Barcodes 2D Barcodes Data Matrix Maxicode QR Code PDF417 MicroPDF417 71 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
US Postnet UK Postal 1D Barcodes EAN-13 3 045214 834123 EAN-8 8012 3453 UPC-A 0 47669 13716 6 UPC-E 99 0 123457 2 Interleave 2 of 5 0987654321 72 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Code 39 W+ E + D + G + E Code 128 Unitech 128 EAN 128 (01)054123456789(01)659344 Codabar A2 2 3 5 7 0 0 0 5 9 9 8 7 6 B MSI 1234558 GS1 Limited 73 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
74 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Appendix B Numeric Barcodes For parameters requiring specific numeric values, scan the appropriately numbered barcode(s). 75 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Cancel To correct an error or change a selection, scan the barcode below. 76 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Appendix C ASCII Character Sets ASCII Value Table ASCII Value Full ASCII Code 39 Encode Char Keystroke 1000 %U CTRL 2 1001 $A CTRL A 1002 $B CTRL B 1003 $C CTRL C 1004 $D CTRL D 1005 $E CTRL E 1006 $F CTRL F 1007 $G CTRL G 1008 $H CTRL H/BACKSPACE1 1009 $I CTRL I/HORIZONTAL TAB1 1010 $J CTRL J 1011 $K CTRL K 1012 $L CTRL L 1013 $M CTRL M/ENTER1 1014 $N CTRL N 1015 $O CTRL O 1016 $P CTRL P 1017 $Q CTRL Q 1018 $R CTRL R 1019 $S CTRL S 1020 $T CT
Full ASCII Code 39 Encode Char ASCII Value Keystroke 1029 %C CTRL ] 1030 %D CTRL 6 1031 %E CTRL - 1032 Space Space 1033 /A ! 1034 /B “ 1035 /C # 1036 /D $ 1037 /E % 1038 /F & 1039 /G ‘ 1040 /H ( 1041 /I ) 1042 /J * 1043 /K + 1044 /L , 1045 - - 1046 . .
Full ASCII Code 39 Encode Char ASCII Value Keystroke 1065 A A 1066 B B 1067 C C 1068 D D 1069 E E 1070 F F 1071 G G 1072 H H 1073 I I 1074 J J 1075 K K 1076 L L 1077 M M 1078 N N 1079 O O 1080 P P 1081 Q Q 1082 R R 1083 S S 1084 T T 1085 U U 1086 V V 1087 W W 1088 X X 1089 Y Y 1090 Z Z 1091 %K [ 1092 %L \ 1093 %M ] 1094 %N ^ 1095 %O _ 1096 %W ‘ 1097 +A A 1098 +B B 1099 +C C 1100 +D D 79 Copyright 2
ASCII Value Full ASCII Code 39 Encode Char Keystroke 1101 +E E 1102 +F F 1103 +G G 1104 +H H 1105 +I I 1106 +J J 1107 +K K 1108 +L L 1109 +M M 1110 +N N 1111 +O O 1112 +P P 1113 +Q Q 1114 +R R 1115 +S S 1116 +T T 1117 +U U 1118 +V V 1119 +W W 1120 +X X 1121 +Y Y 1122 +Z Z 1123 %P { 1124 %Q I 1125 %R } 1126 %S ~ The keystroke in bold transmits only if you enabled Function Key Mapping. Otherwise, the unbold keystroke transmits.
ALT Key Standard Default Tables ALT Keys Keystroke 2064 ALT 2 2065 ALT A 2066 ALT B 2067 ALT C 2068 ALT D 2069 ALT E 2070 ALT F 2071 ALT G 2072 ALT H 2073 ALT I 2074 ALT J 2075 ALT K 2076 ALT L 2077 ALT M 2078 ALT N 2079 ALT O 2080 ALT P 2081 ALT Q 2082 ALT R 2083 ALT S 2084 ALT T 2085 ALT U 2086 ALT V 2087 ALT W 2088 ALT X 2089 ALT Y 2090 ALT Z 81 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved.
USB GUI Key Character Set GUI Key Keystroke 3000 Right Control Key 3048 GUI 0 3049 GUI 1 3050 GUI 2 3051 GUI 3 3052 GUI 4 3053 GUI 5 3054 GUI 6 3055 GUI 7 3056 GUI 8 3057 GUI 9 3065 GUI A 3066 GUI B 3067 GUI C 3068 GUI D 3069 GUI E 3070 GUI F 3071 GUI G 3072 GUI H 3073 GUI I 3074 GUI J 3075 GUI K 3076 GUI L 3077 GUI M 3078 GUI N 3079 GUI O 3080 GUI P 3081 GUI Q 3082 GUI R 3083 GUI S 3084 GUI T 3085 GUI U 3086 GUI V 3087 GUI W 3088 GUI X
GUI Key Keystroke 3089 GUI Y 3090 GUI Z Note: GUI Shift Keys - The Apple™ iMac keyboard has an apple key on either side of the space bar. Windows-based systems have a GUI key to the left of the left ALT key, and to the right of the right ALT key.
F Keys Keystroke 5012 F 12 5013 F 13 5014 F 14 5015 F 15 5016 F 16 5017 F 17 5018 F 18 5019 F 19 5020 F 20 5021 F 21 5022 F 22 5023 F 23 5024 F 24 Numeric Key Standard Default Table Numeric Keypad Keystroke 6042 * 6043 + 6044 Undefined 6045 - 6046 . 6047 / 6048 0 6049 1 6050 2 6051 3 6052 4 6053 5 6054 6 6055 7 6056 8 6057 9 6058 Enter 6059 Num Lock 84 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved.
Extended Keypad Standard Default Table Extended Keypad Keystroke 7001 Break 7002 Delete 7003 Pg Up 7004 End 7005 Pg Dn 7006 Pause 7007 Scroll Lock 7008 Backspace 7009 Tab 7010 Print Screen 7011 Insert 7012 Home 7013 Enter 7014 Escape 7015 Up Arrow 7016 Dn Arrow 7017 Left Arrow 7018 Right Arrow 85 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
86 Copyright 2013 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Appendix D Worldwide Support Unitech’s professional support team is available to quickly answer questions or technical-related issues. Should a set of equipment problem occurs, please contact the nearest Unitech regional service representative. For complete contact information please visit the Web sites listed below: Region Web Site Global Operation Center http://www.ute.com Unitech Taiwan http://tw.ute.com Unitech Asia Pacific & Middle East http://apac.ute.com http://india.ute.
