2.6 TRANSMISSION
In Tx mode, as soon as pressing the PTT button, DTMF and 5-Tone ID are transmitted. At that
time, you can't communicate and the Rx/Tx lamp is lighted.
Note) If it is keyed continuously for longer than the programmed time, the transmission is inhibited. (BCLO, TOT feature)
2.7 RECEIVING
You can receive with PTT button released. DTMF or 5-tone sounds and display the caller's name
on LCD according to Transceiver.(See Call Mode section) Whether it is in bad condition or has a
different tone(CTCSS/DCS) in spite of same frequency, it can't be received. In normal, it can
receive all signals by pressing the monitor button and it continues the monitor mode by pressing
the button for 2 seconds. Press the monitor button again to release the monitor mode. Select
the channel for the call.
2.8 ACCESSORY CONNECTOR(PHONE JACK AND MIC JACK)
Provides accessibility for connection to remote accessories such as a speaker microphone.
NOTE : The accessory connector protects the accessory connector. This cover should
remain in place whenever The radio is not being used with an accessory.
2.9 ANTENNA
Helical(VHF) or Whip(UHF) with threaded base.
2.10 LED INDICATOR
A Tri-Colored Light-Emitting Diode(LED) Indicates scan operating status.
2.11 MULTI-FUNCTION LED INDICATORS
1) Transmit Mode(PTT Switch Depressed)
-. Continuous RED Light : Normal Transmission
-. Flashing RED Light : Low Battery
-. Flashing Pink : Selective Call
2) Receive Mode(PTT Switch Not Depressed)
-. Continuous Green(5 Seconds) : Channel monitor active
-. Flashing Pink : Selective Call or Call alert present
-. Flashing Green : with carrier, Incorrect Tone Detect.

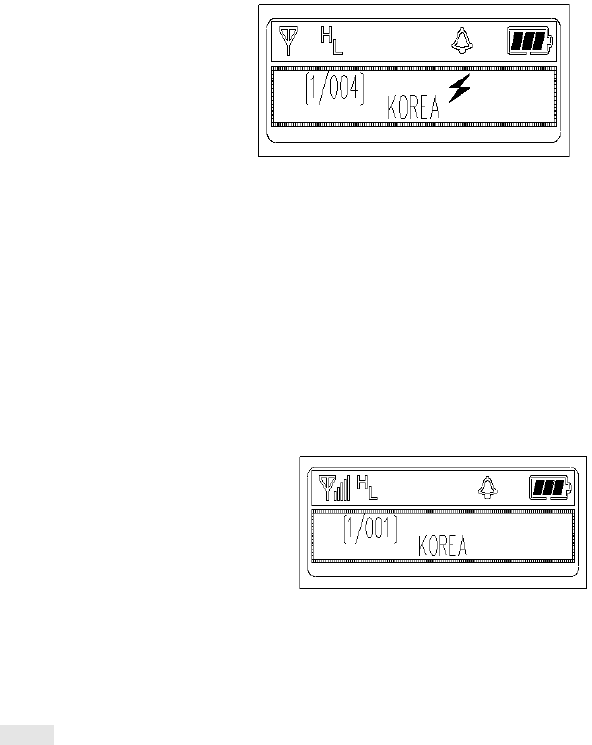

Fig.5 Receiving
Fig.4 Transmission
