7. Connect the Shield
(silver)
wire to the mike's ground
connection if
your
transceiver has
one.
If it
doesn't have a separate mike
or
ground
connection,
then connect it to the single
ground
along with
the brown wire.
(See
the next
step.)
8. Connect the brown wire
to the main
ground
on the
connector. This
ground
is the one used fbr thc
PTT and
receive audio. You
should connect the silver
Shield/Drain
wire
to this sround onlv if there
isn't a separate mike ground
as described in
the
previous
step.
Ifyou're
connecting a handheld
("handy-talkie")
transceiver to
your
PK-96, yoLr'll probably
nced a resistor
and/or capacitor
to
isolate
this connection from
the AFSK audio
(check
Appendix A).
Transceiver
Adi
ustments
Make sure
your
PK-96
and radio are
turned olT and all the cables are corectly wired and connected.
l.
Connect a dummy load to
your
radio
and be
prepared
to monitor
your
transmissions with another
nearbv radio.
such as a handheld transceiver.
Ncn'n:
If
you
don't hcpe
a spere receiver to use'os o monitor;
cL
"cluick'n'dirty"
wcty
to set
the 1200 bp.s AFSK
leveL is to turn
the 1200 LEVEL
pot
on tlrc back of the PK-96 halfway
between its stop.s. If
you
happen to
have
a deviation meter set the
1200 LEVEL's
pot
so the PK-96's
devicrtion is 3 KHz
peak.
(For
9600
bps
operation, see that
section later in this chapter)

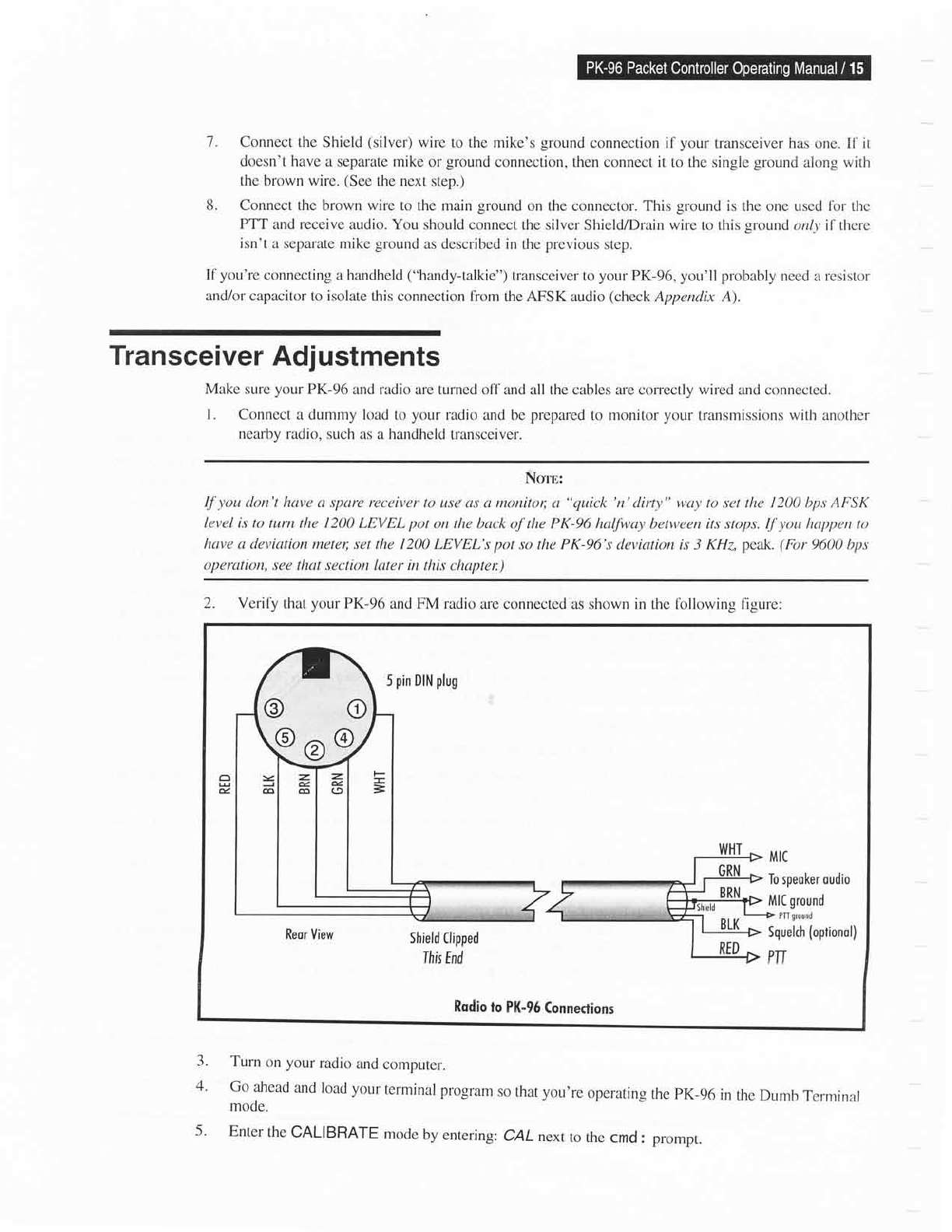

2.
Verify that
your
PK-96 and FM radio
are connected as shown in the lbllowing figure:
Turn
on
your
radio
and
computer.
Go ahead
and
load
your
terminal
program
so
that
you're
operating
the
pK-96
in
the
Dumb
Terminal
mode.
Enter
the
CALIBRATE
mode
by
entering:
CAL
nextto
rhe
cmd : prompr.
5
pin
DIN
plug
@o
9o9
WHT
Mrc
GRN
To
speoker
oudio
MIC
ground
BRN
BLK
Pfi
ground
Reor View
Shield
Clipped
Ihis fnd
Squekh
{optionol)
PTT
Rodio
lo
PK-95
Connections
a
J.
4.
5.
