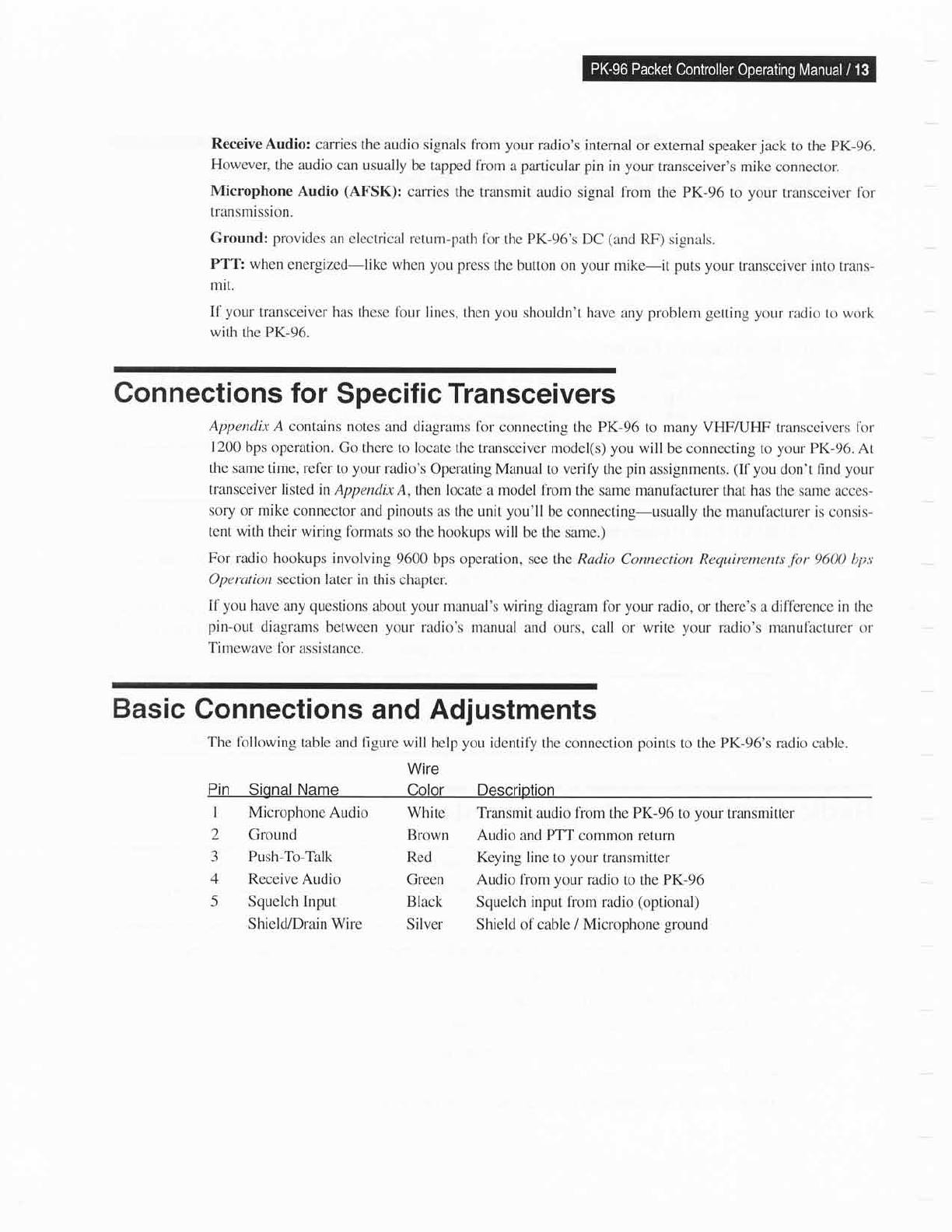

Receive
Audio:
carries the
audio signals from your
radio's internal
or
external speaker
jack
to the PK-96.
However,
the
audio can usually
be tapped
fiom a
particular
pin
in
your
transceiver's
mike
connector.
Microphone
Audio
(AFSK):
carries
the transmit audio
signal from the PK-96
to
your
transceiver fbr
transmission.
Ground: provides
an electrical return-path
fbr the PK-96's DC
(and
RF) signals.
PTT:
when
energized-like when you press
the button on
your
mike-it
puts
your
transceiver into
trans-
mit.
If
your
transceiver has
these fbur lines,
then
you
shouldn't have
any
problem getting
your radio
to
work
with
the PK-96.
Connections for
Specific Transceivers
Appendix
A contains notes
and diagrams fbr
connecting the PK-96 to
many VHFruHF transceivers lbr
1200
bps operation.
Go there
to
locate
the transceiver model(s)
you
will be connecting
to
your
PK-96. At
the same time, refer
to
your
radio's
Operating Manual
to
verify
the
pin
assignments.
(If
you
don't find
your
transceiver listed
in Appendix
A, then locate a model from
the same manufacturer that has
the same acces-
sory
or
mike
connector
and
pinouts
as
the
unit
you'll
be connecting-usually
the manufacturer is consis-
tent with
their wiring fbrmats
so the hookups will
be the same.)
For radio hookups
involving
9600 bps operation, see
the
Radio
Connection Requirements.fbr 9600 hps
Operation
section later in this chapter.
If
you
have
any
questions
about
your
manual's wiring diagram for
your
radio,
or there's a dif'l'erence
in
the
pin-out
diagrams
between
your
radio's
manual and ours,
call
or write your radio's manul'actr.rrer
or
Timewave
fbr assistance.
Basic
Connections
and
Adjustments
I
Microphone Audio
2
Ground
3
Push-To-Talk
4
Receive Audio
5 Squelch Input
Shield/Drain
Wire
The
fbllowing table
and figure will help you
identily the connection
points
to the PK-96's radio cable.
Wire
Pin Signal Name
Color Description
White Transmit
audio f'rom the PK-96 to
your
transmitter
Brown
Audio and PTT common return
Rcd Keying
line to
your
transmitter
Green Audio
from
your
radio to the PK-96
Black
Squelch input from radio
(optional)
Silver Shield of cable / Microphone
ground
