Specifications

[e-mail]
6
Measurement Operation
- Make sure the low Battery Display is not on, otherwise false readings may be provided.
- Pay extra attention to the
symbol, before carrying measurement, which is located besides the input
terminals of the meter.

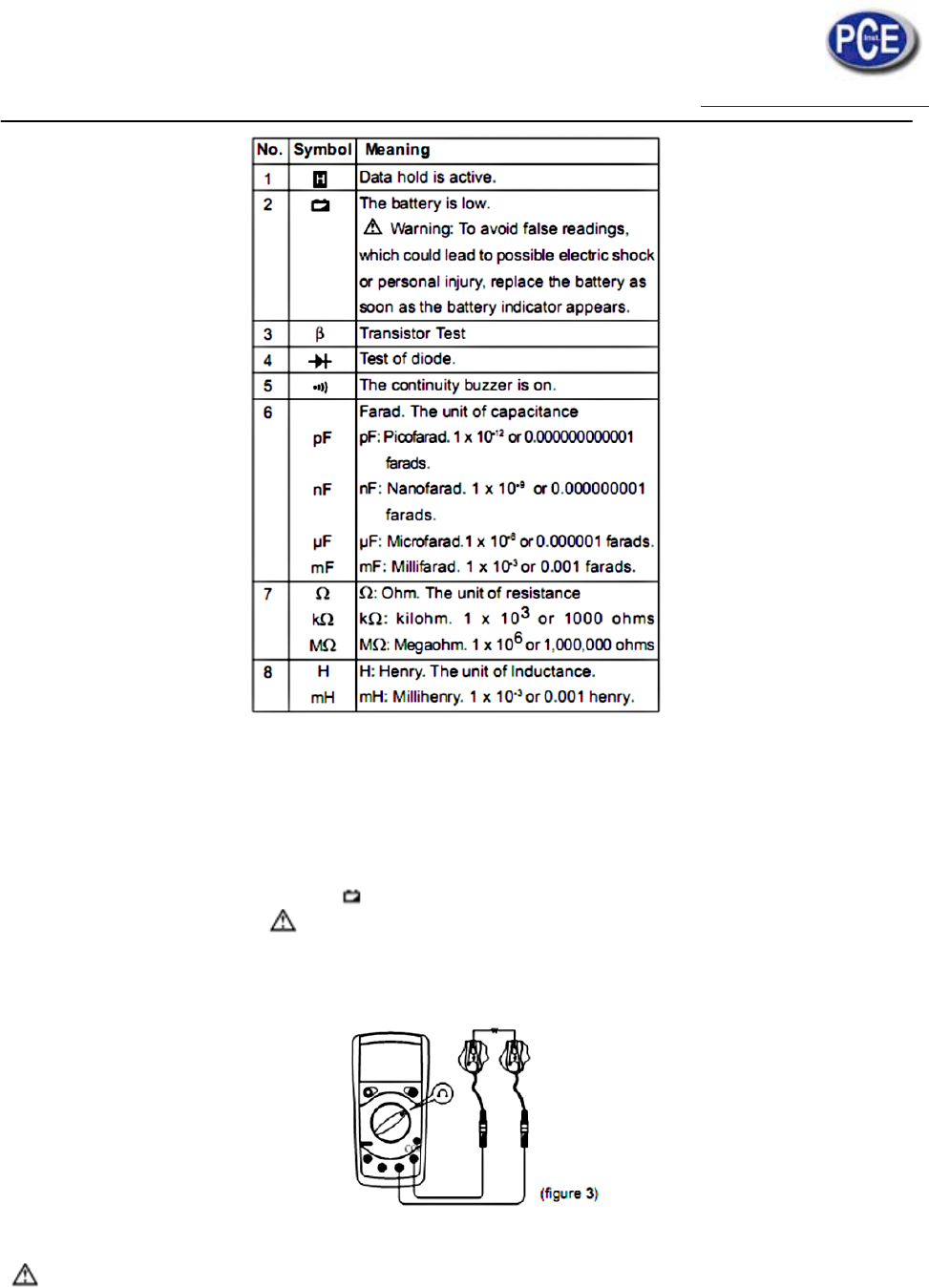

A. Measuring Resistance
Warning
To avoid damages to the Meter or to the devices under test, disconnect circuit power and discharge all
the high-voltage capacitors before measuring resistance.
The resistance ranges are 20Ω, 200Ω, 2kΩ, 20kΩ , 200kΩ, 2MΩ, 20MΩ, and 200MΩ.
To measure resistance, please connect the meter as follows:
1. Insert the red test clip into the Ω terminal and the black test clip into COM terminal.
2. Set the rotary switch to Ω range.
