DESCRIPTION
The METAL MAN Heavy Duty Single/Dual Bottle Welding Cart is designed for multiple uses as a
welding cart. First it can be used to hold portable wire welders, plasma cutters and TIG welders
along with the bottle of shielding gas needed for that application. Its unique Cylinder rack allows you
to configure it to carry one bottle of gas up to 10 inches in diameter and up to 300 cu. Ft.; or two
separate bottles of gas up to 7-1/2 inches in diameter or 150 cu. Ft each.
The second use for this welding cart could be to hold two separate welders or a welder and a
plasma cutter. The bottom shelf has an 18 inch clearance, giving able space to store one unit on the
top shelf and one unit on the bottom shelf. Two units, may require two bottles of shielding gas.
Simply configure the cylinder rack to the dual bottle cylinder configuration.
A third use for the Heavy Duty Single/Dual Bottle Welding Cart is as a power source and feeder cart.
The bottom shelf has an 18 inch clearance, giving able space to store a smaller, inverter-based
welding power source on the bottom shelf. The top shelf has ample space to fit a wire feeder. In
addition, the top of the cylinder securement rack can be removed to accommodate the wire feeder
spool holder and a large spool of wire.
This cart’s top shelf is approximately 25 inches from the floor, putting the machine controls at a
comfortable operating height. A 20 inch wide base, 8 inch rear wheels, locking front casters, and
fold down handle make this cart stable and easy to maneuver. This unit also has two sets of cable
wraps to organize all the welding cables safely.

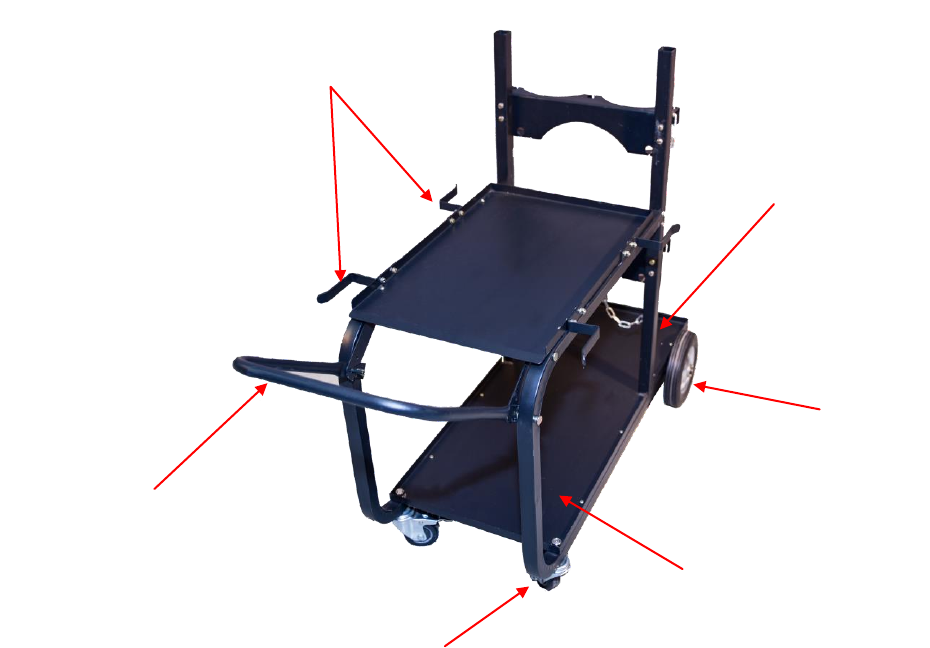

8 Inch
Wheels
Lockable
Front Caster
Fold Down
Handle
Bottom
Shelf
Cylinder
Rack
Cable
Wraps
