CONCEALED TANK SYSTEM INSTALLATION INSTRUCTIONS
— 11 —
Toilet Installation
L
L+6mm”

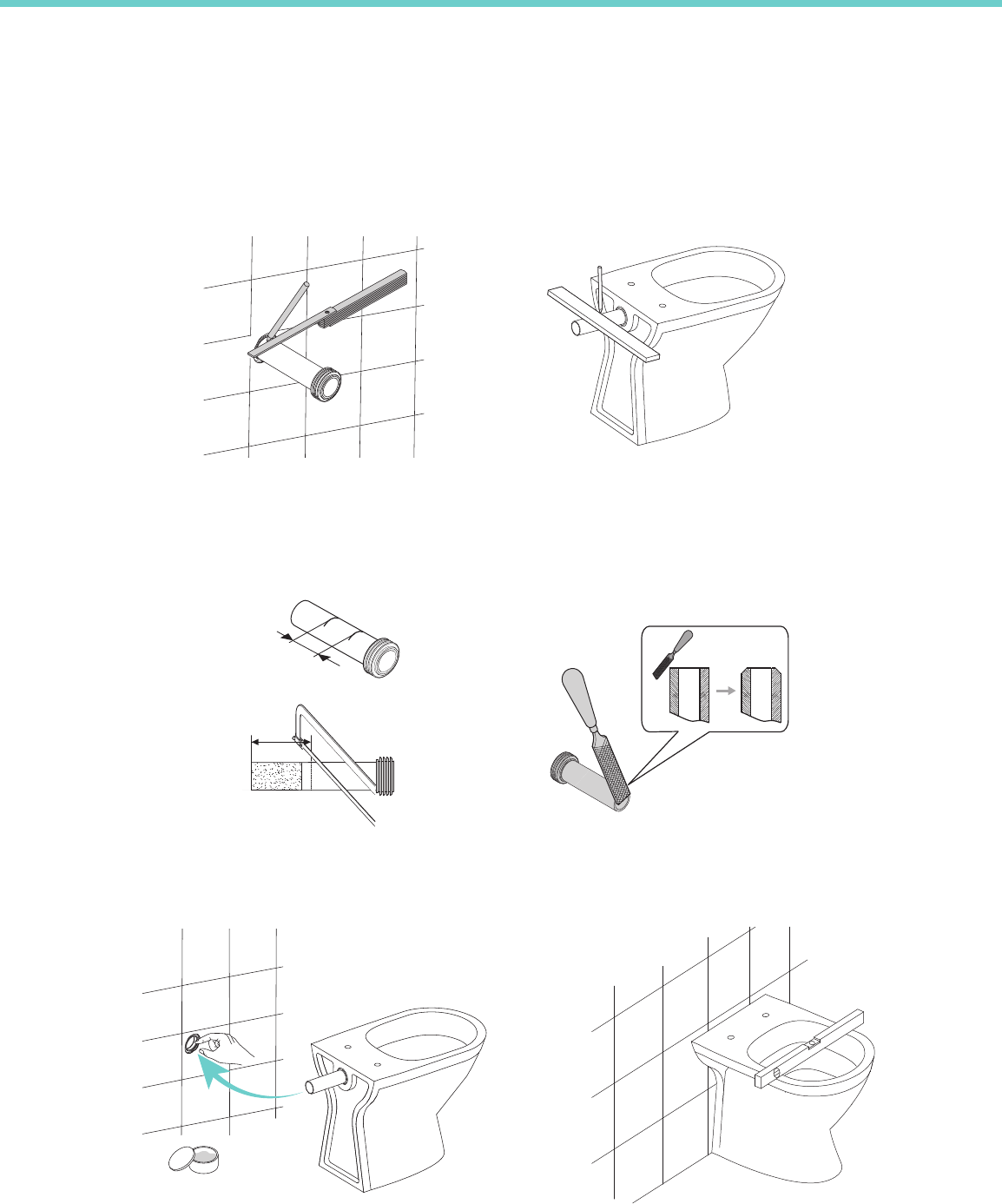

1. Fit Pipe
· Install pipe and make sure it is thouroughly inserted.
· With a ruler, mark a line on the pipe where it meets the finished wall.
· Remove from wall and install pipe in the back of the toilet and make sure it is thouroughly inserted.
· With a ruler, mark a line on the pipe where it meets the back of the bowl.
2. Cut Pipe
· Measure the distance between both marked lines on pipe.
· Cut pipes as shown below.
· After cutting, take a file and remove all burrs. Try and bevel pipe edge.
3. Install Toilet
· Insert pipe into bowl first, remember to apply grease where nesecssary.
· Install pipe into wall, make sure toilet is level.
