Sensor Configuration - Lynx
®
Configuring Sensors
It is possible to add and
congure sensors from the
Central computer running
Lynx.
All sensors must be physically
wired to the satellite controller
and communication between
the Central and satellite already
established.
Lynx can detect if a pressure and/or
temperature sensor is attached to the
board. However, the sensor must still
be congured.
Procedure
1. Click the New Board button.
2. Under the Satellite column, you
will see a satellite selection of
“Unassigned”. We have to assign
the Sensor Input Board (the new
board from step 1) to the correct satellite. Click the
“Unassigned” word and select the correct satellite from
the dropdown menu.
3. Now we need to specify which sensors are installed in
which inputs. Click Sensor Conguration.

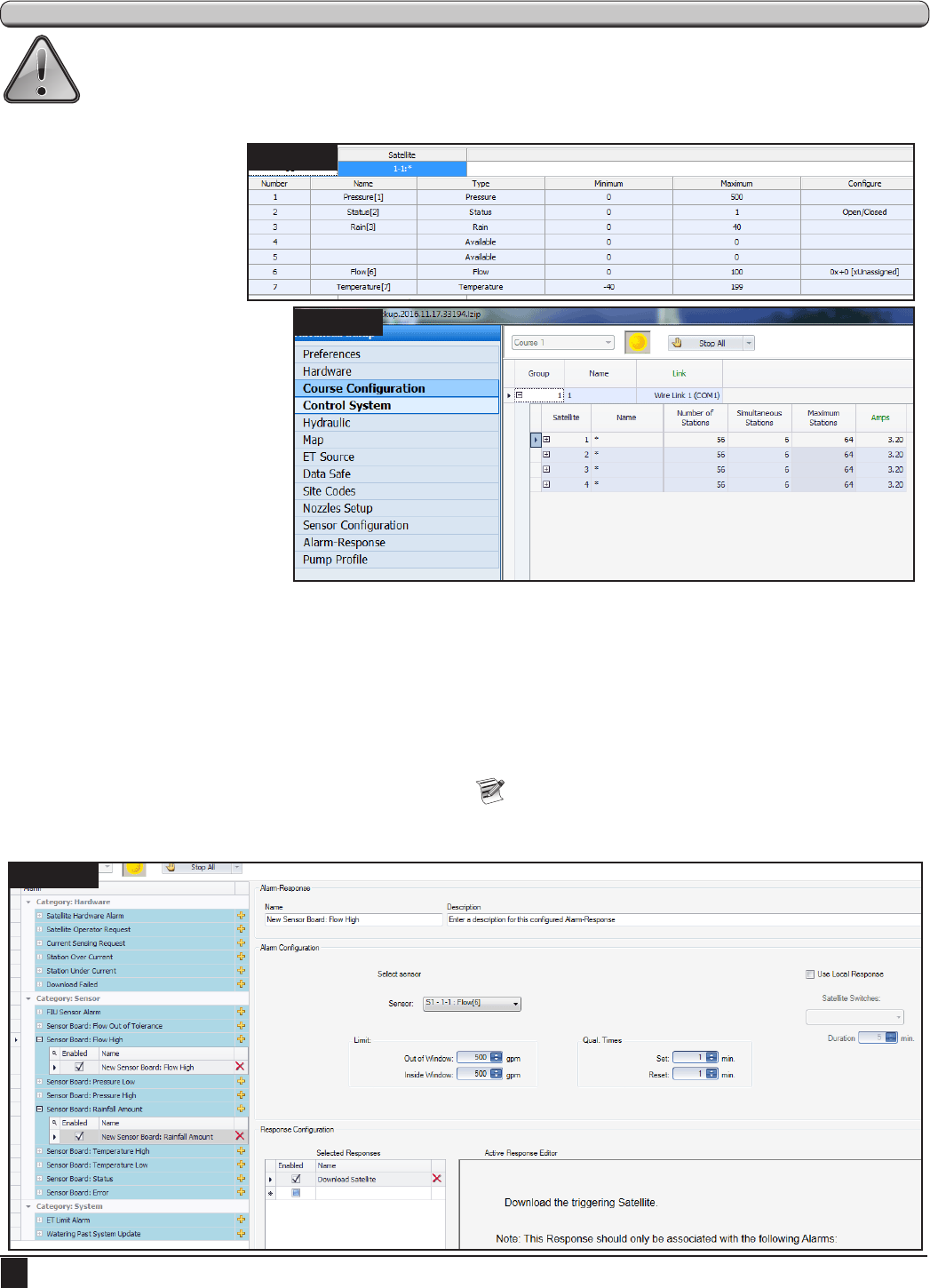

4. Simply click on a eld to change the value. In Figure
1, we have one of each type of sensor installed with
minimum and maximum values set.
5. Remember, a sensor input board takes up 8 stations.
We have to tell Lynx that the correct satellite from step
2 now has 8 fewer stations. Click on Control System,
nd the desired satellite, and enter the correct number
of stations (Figure 2).
6. Click Alarm-Response to set up alarm conditions for
the various sensors.
7. Select the desired sensor from the dropdown list.
Enter the various limits and Qualication times (Figure
3). For an explanation of these terms, please see the
Sensor Conguration section above.
Checking the Use Local Response checkbox turns on
a switch in the satellite containing the sensor board for
a timed duration.
Figure 2
Figure 1
Figure 3
!
Sensor conguration can either be done at the satellite in Local Mode or at a Central computer
running Lynx. If communication is established between a satellite and a Lynx system, the Lynx
system will overwrite all locally dened sensor conguration information. Meaning, if operating a
Lynx system, the sensors must be congured with Lynx.
