range from 0 to 255.
6. Set password, in “LED Build Software” light sculpt window, click

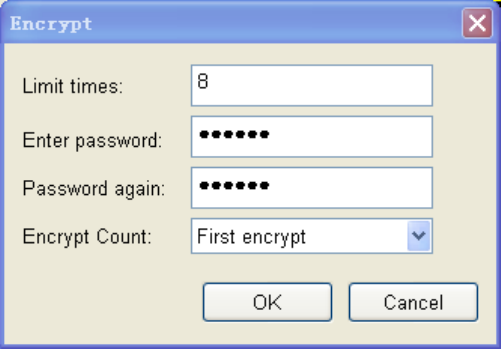

“Setting”—“encrypt controller ”, pop up the encryption dialog box,
the encryption method is to limit the number of power-on time.
Ⅳ. Special Explanation
1. For P9813 and LPD6813, H803SA controls maximum 6144 pixels.
Output eight ports, each port controls maximum 768 pixels; output
four ports, each port controls maximum 1536 pixels.
2. Port number must be eight or four, which means select “eight line
with a slave” or “four line with a slave” in software.
3. LD151x and LD153x only support 8-bit mode.
4. For chips that grayscale level is more than 256, controller has
executed GAMMA disposal, for chips that grayscale level is less than
256, you must set GAMMA in software. LPD6812 is 1024 grayscale
level; LPD1886, TLS3001, BS0901 and BS0815 are 4096 grayscale
level; DM412 and MBI6024 are 65535 grayscale level.
