H803SA Instructions

Ⅰ.Introduction

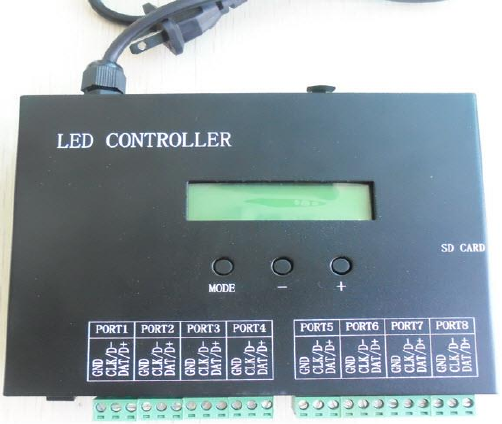

H803SA has eight output ports, controls maximum 8192 pixels. Three

buttons and LCD screen are convenient for operation. Can be

synchronized with AC power supply and connected to DMX console.

H803SA can drive the following chips: LPD6803，LPD8806，LPD6812,

LPD6813，LPD1882，LPD1889，LPD1883, LPD1886, DMX512，HDMX,

APA102, APA104, P9813, P9823, LD1510, LD1512, LD1530, LD1532,

UCS6909, UCS6912，UCS1903，UCS1909，UCS1912，WS2801，

WS2803，WS2811，DZ2809，SM16716，TLS3001, TLS3002, TM1812，

TM1809，TM1804，TM1803, TM1914, TM1926, TM1829, TM1906,

INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413 ，

DM114，DM115，DM13C，DM134，DM135，DM136，74HC595，

6B595, MBI6023, MBI6024, MBI5001，MBI5168，MBI5016，MBI5026，

MBI5027, TB62726， TB62706， ST2221A， ST2221C, XLT5026，

Summary of content (7 pages)

PAGE 1
H803SA Instructions Ⅰ.Introduction H803SA has eight output ports, controls maximum 8192 pixels. Three buttons and LCD screen are convenient for operation. Can be synchronized with AC power supply and connected to DMX console.
PAGE 2
ZQL9712，ZQL9712HV, etc. Auxiliary software is “LED Build Software”. For three lines and four lines chips, H803SA can only output four ports, each port controls maximum 2048 pixels. For single line and double lines chips, H803SA can output eight or four ports, each port controls maximum 1024 pixels when output eight ports, but control 768 pixels when control P9813 and LPD6813; each port controls maximum 2048 pixels when output four ports, but control 1536 pixels when control P9813 and LPD6813.
PAGE 3
6. Support encryption by limiting the number of power-on time. Ⅲ. Operation Instructions 1. SD card must be formatted into FAT32 or FAT16 after times of deleting or adding files. Supports SDHC (high capacity SD card), the maximum capacity is 64G bytes, stores up to 64 DAT files, which are played based on the file name in alphabetic order. 2. Eight output ports, controls maximum 8192 pixels. Each port controls maximum 1024 pixels.
PAGE 4
1) FileX: X is the sequence number and refers to the playing DAT file name. Press “+” to jump to the next file, press “-” to jump to the previous file. 2) Clk Rate: Refers to the clock scanning frequency, the range is 0.1M—12.5M. 3) Speed： Play speed ranges from 1 to 100 frames per second, the playing speed must be set to the same when multiple controllers are synchronized with AC power supply. 4) Bright: The brightness range is 0—15. For P9813, LPD6813, the brightness can not be adjusted.
PAGE 5
range from 0 to 255. 6. Set password, in “LED Build Software” light sculpt window, click “Setting”—“encrypt controller ”, pop up the encryption dialog box, the encryption method is to limit the number of power-on time. Ⅳ. Special Explanation 1. For P9813 and LPD6813, H803SA controls maximum 6144 pixels. Output eight ports, each port controls maximum 768 pixels; output four ports, each port controls maximum 1536 pixels. 2.
PAGE 6
5. Clock of LPD6812, LPD1883, and LPD1886 must be set to 1.13M or 1.04M; clock of TM1812, LPD1882, WS2811, TM1829, TM1926 and TM1914 and some other same time sequence chips must be set to 0.78M, 0.73M or 0.39M. Ⅴ. Special function and LCD prompt 1. Encode for DMX512 lamp. Clock is fixed and standard clock, so LCD doesn’t display clock setting, but display “－Stop + Encode”, means press “+” to start encoding, press “－”to stop encoding. 2.
PAGE 7
GND CLK4 DAT4 GND LAT4 OE4 GND CLK3 DAT3 GND LAT3 OE3 GND CLK2 DAT2 GND LAT2 OE2 GND CLK1 DAT1 GND LAT1 OE1 GND CLK1 DAT1 GND CLK2 DAT2 GND CLK3 DAT3 GND CLK4 DAT4 GND CLK5 DAT5 GND CLK6 DAT6 GND CLK7 DAT7 GND CLK8 DAT8 GND D-1 D+1 GND D-2 D+2 GND D-3 D+3 GND D-4 D+4 GND D-5 D+5 GND D-6 D+6 GND D-7 D+7 GND D-8 D+8 port number error or pixel number is too much. 10. “Init…..” means reading SD card successfully and initiating. Ⅵ.
