INF35-6 CONVERSION UPGRADES
MODELS DESCRIPTION
• INF35-6-3134
• INF35-6-3537
• INF35-6-3134E
• INF35-6-3537E
INF35-6 w/31–34 Nozzles
(33 Nozzle Installed)
INF35-6 w/35–37 Nozzles
(35 Nozzle Installed)
INF35-6 w/31–34 Nozzles
(33 Nozzle Installed), Effluent
INF35-6 w/35–37 Nozzles
(35 Nozzle Installed), Effluent
INF55-6 CONVERSION UPGRADES
MODELS DESCRIPTION
• INF55-6-5154
• INF55-6-5558
• INF55-6-59
• INF55-6-5154E
• INF55-6-5558E
• INF55-6-59E
INF55-6 w/51–54 Nozzles
(53 Nozzle Installed)
INF55-6 w/55–58 Nozzles
(55 Nozzle Installed)
INF55-6 w/59 Nozzle Installed
INF55-6 w/51–54 Nozzles
(53 Nozzle Installed), Effluent
INF55-6 w/55–58 Nozzles
(55 Nozzle Installed), Effluent
INF55-6 w/59 Nozzle Installed Effluent
SPECIFICATIONS
Operational
• Inlet:
- INF35-6: 1” ACME
- INF55-6: 1½” ACME
• Radius:
- INF35-6: 42’ – 92’
- INF55-6: 52’ – 100’
• Flow Rate:
- INF35-6: 7.1 – 45.3 gpm
- INF55-6: 13.9 - 61.1 gpm
• Precipitation Rates:
- INF35-6: Minimum - .37”/hr;
Maximum - .53”/hr
- INF55-6: Minimum - .43”/hr;
Maximum - .60”/hr
• Pilot Valve: Selectable at 50, 65,
80 and 100 psi
• Recommended Operating
Pressure Range: 65-100 psi
(maximum -150 psi and
minimum - 40 psi)
• Activation types – Electric
Valve-in-Head:
- Standard Solenoid:
n
24 VAC, 50/60 Hz
n
Inrush: 0.30 A
n
Holding 0.20 A
- Spike Guard Solenoid:
n
24 VAC, 50/60 Hz
n
Inrush: 0.12 A
n
Holding 0.10 A
- Nickel-Plated Spike Guard
Solenoid:
n
24 VAC, 50/60 Hz
n
Inrush: 0.12 A
n
Holding 0.10 A
- DC Latching Solenoid (DCLS):
n
Momentary low voltage pulse
- Integrated Lynx Smart
Module with DCLS:
n
Momentary low voltage pulse

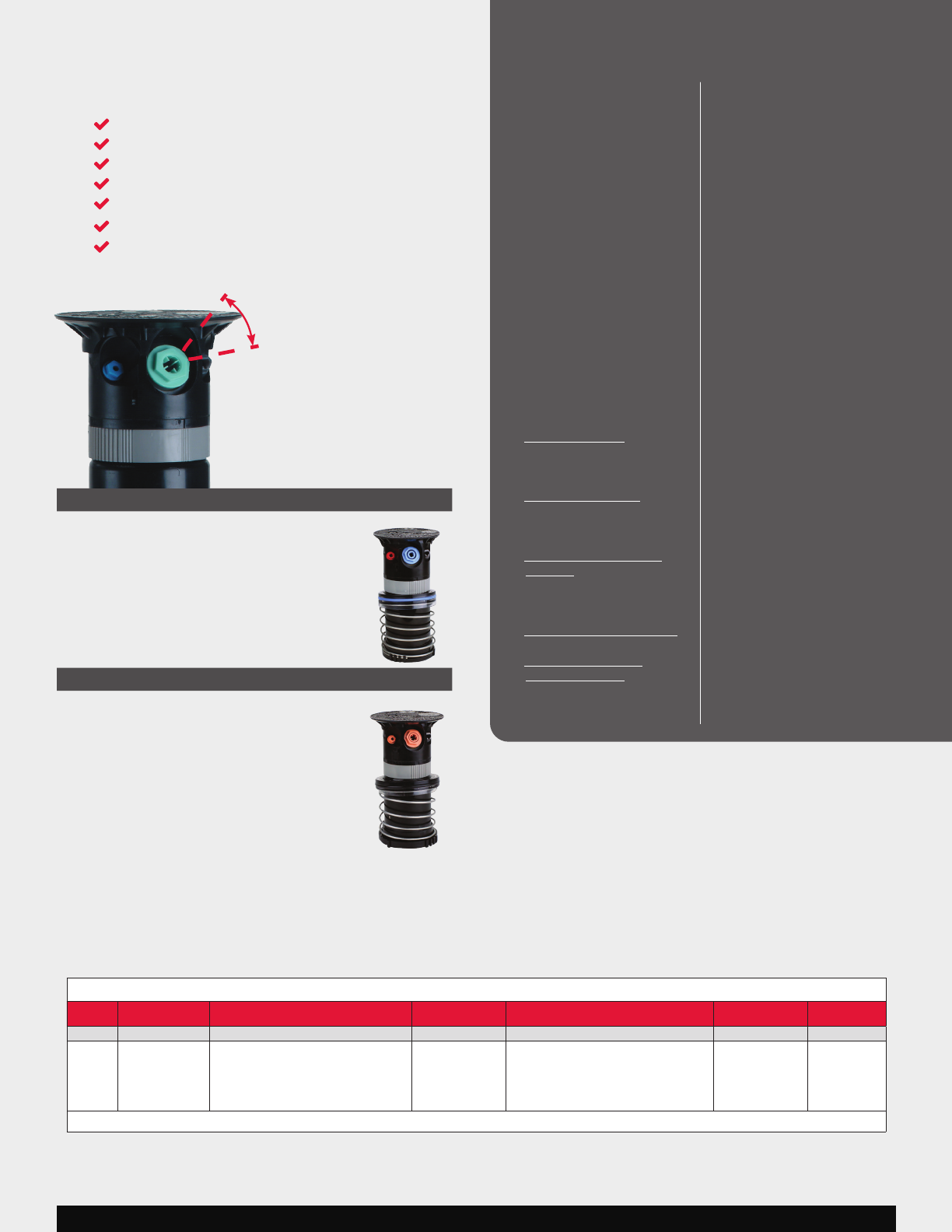

• Trajectory: 24 positions from 7°
- 30° in 1° increments
Trajectory – 24 Positions
From 7° - 30° in 1° increments
put water where you want
it. Adjust from the top of the
sprinkler in seconds, wet or dry.
This flexibility lets you tackle
every obstacle on the course;
wind, trees, bunkers, mounds
and more.
7°
30°
Specifying Information—INFINITY 35-6 & INFINITY 55-6
INFX5-XXX-X6-X
Body
Inlet
Arc Nozzle
Pressure
Regulation*
Activation Type Trajectory Optional
INFX 5 X X X X 6 X
3—1"
5—1
1
⁄2"
5—Part-circle and
Full-circle
In One
INF35—30, 31, 32, 33, 34, 35, 36, 37
INF55—51, 52, 53, 54, 55, 56, 57, 58, 59
6—65 psi
8—80 psi
1—100 psi
1—Standard Solenoid
2—Spike Guard
™
Solenoid
3—Nickel-plated Spike Guard Solenoid
4—DC Latching Solenoid (DCLS)
6—Integrated Lynx Smart Module w/DCLS
6—24-position
TruJectory
7—Effluent
Example: When specifying an INF35-6 Series Sprinkler with #34 nozzle, pressure regulation at 65 psi and Spike Guard you would specify: INF35-346-26
Note: Not all models available. * All sprinklers are equipped with the selectable pilot valve that allows settings at 50, 65, 80 and 100 psi.
Smart Access
®
Provides top accessibility to all critical components.
No digging or unsightly turf repair scars
No buried wire splices or ground faults
Pilot valve removable with water “ON”
Lower long term cost of ownership
Customizable marker
Replaceable cover if damaged
Increased labor eciency
Additional Features
• INF35-6 has eight nozzle
variations (30, 31, 32, 33,
34, 35, 36 and 37)
• INF55-6 has nine nozzle
variations (51, 52, 53, 54,
55, 56, 57, 58 and 59)
• Four in-line nozzles,
rotating stream pattern
• One back nozzle position
• Stator variations: INF35-6 – 3
and INF55-6 – 3
• Ratcheting riser
• Nozzle base clutching
Dimensions
• SMART ACCESS® Cover and
Compartment Diameter:
- INF35-6: 7
5
/8”
- INF55-6: 7
5
/8”
• Body height:
- INF35-6: 10”
- INF55-6: 11
3
/8”
• Weight:
- INF35-6: 4.31 lbs.
- INF55-6: 5.13 lbs.
• Weight – Intergrated with
Lynx Smart Module:
- INF35-6: 5.00 lbs.
- INF55-6: 5.82 lbs.
• Pop-up height to nozzle: 3¼”
Warranty
• Three years
• Five years when installed
with Toro Swing Joints
