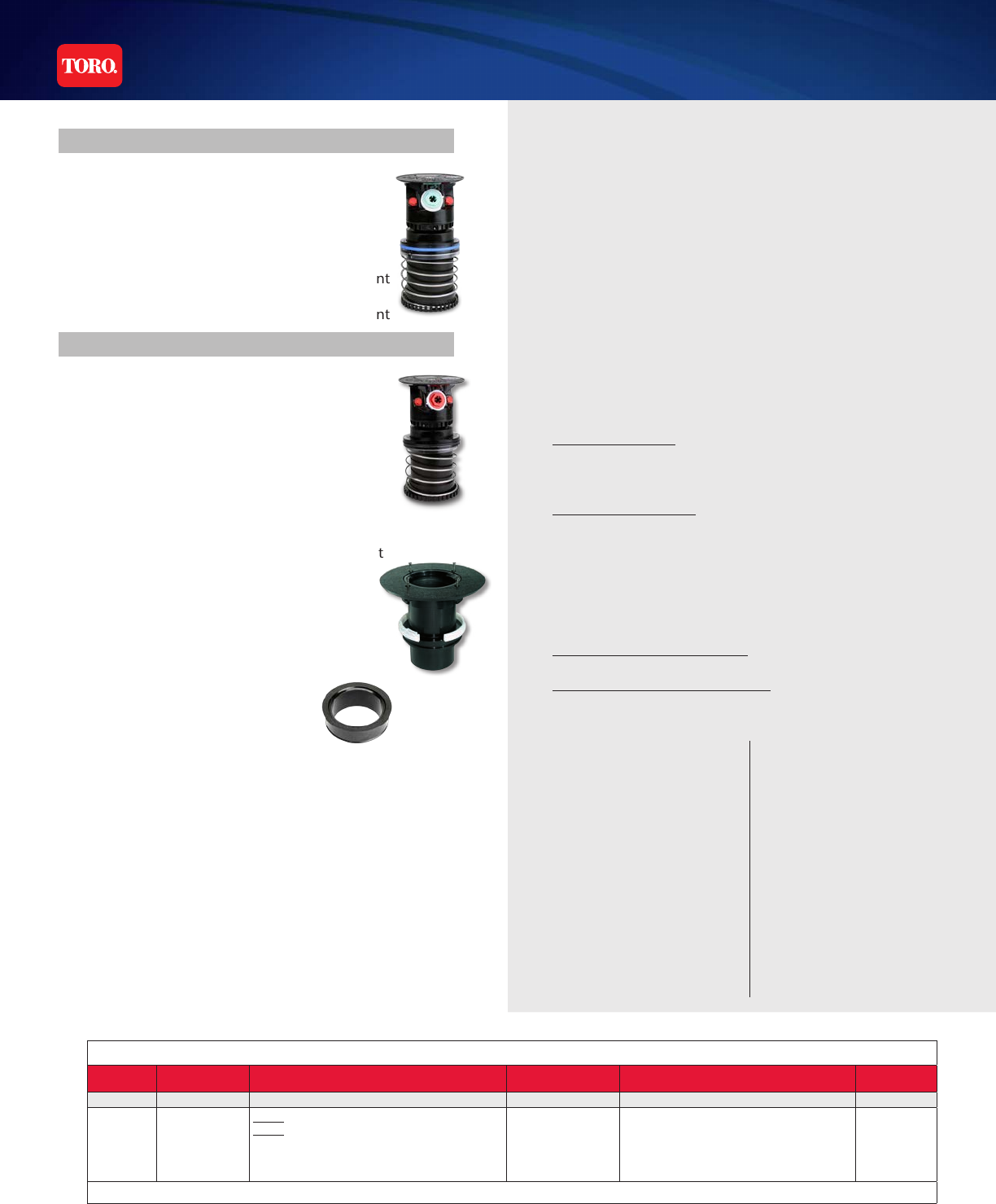

FLX34 Conversion Upgrades
Models Description
• FLX34-3134
• FLX34-3537
• FLX34-3134E
• FLX34-3537E
FLX34 w/31–34 Nozzles
(#3 Nozzle Installed)
FLX34 w/35–37 Nozzles
(#5 Nozzle Installed)
FLX34 w/31–34 Nozzles
(#3 Nozzle Installed), Effluent
FLX34 w/35–37 Nozzles
(#5 Nozzle Installed), Effluent
FLX54 Conversion Upgrades
Models Description
• FLX54-5154
• FLX54-5558
• FLX54-59
• FLX54-5154E
• FLX54-5558E
• FLX54-59E
• 102-5011
• 102-0950
FLX54 w/51–54 Nozzles
(#3 Nozzle Installed)
FLX54 w/55–58 Nozzles
(#5 Nozzle Installed)
FLX54 w/59 Nozzle
FLX54 w/51–54 Nozzles
(#3 Nozzle Installed), Effluent
FLX54 w/55–58 Nozzles
(#5 Nozzle Installed), Effluent
FLX55 w/59 Nozzle, Effluent
690 Adapter allows you
to upgrade any 690
with FLX54 conversions
Required to Upgrade all
1.5” Series Sprinklers (650,
670, 680, 750, and 780)
Specifying Information—FLEX800 34 & FLEX800 54
FLXX4-XXX-X7
Body
Inlet
Arc Nozzle
Pressure
Regulation*
Activation Type Optional
FLXX 4 X X X X 7
3—1"
5—1
1
⁄2"
4—Full Circle
FLX34—31, 32, 33 , 34, 35, 36, 37
FLX54—51, 52, 53, 54, 55, 56, 57, 58, 59
6—65 PSI
8—80 PSI
1—100 PSI
1—Standard Solenoid
2—Spike Guard
™
Solenoid
3—Nickel-plated Spike Guard Solenoid
4—DC Latching Solenoid (DCLS)
5—Integrated GDC Module w/DCLS
7—Effluent
Example: When specifying an FLX34 Series Sprinkler with #34 nozzle, pressure regulation at 65 PSI and Spike Guard
™
Solenoid you would specify: FLX34–346–2
Note: Not all models available. * All sprinklers are equipped with the selectable pilot valve that allows settings at 50, 65, 80 and 100 PSI.
Dimensions
• Body Flange Diameter:
- FLX34: 6
1
/2”
- FLX54: 7
1
/2”
• Body height:
- FLX34: 10”
- FLX54: 11
3
/8”
• Weight:
- FLX34: 2.87 lbs.
- FLX54: 3.55 lbs.
• Weight–Integrated GDC
- FLX34: 3.56 lbs.
- FLX54: 4.24 lbs.
• Pop-up height to nozzle: 3¼”
Operating Specifications
• Inlet:
- FLX34: 1” ACME
- FLX54: 1½” ACME
• Radius:
- FLX34: 52’ – 91’
- FLX54: 52’ – 99’
• Flow Rate:
- FLX34: 13.0 – 46.9 GPM
- FLX54: 13.2 - 61.8 GPM
• Precipitation Rates:
- FLX34: Minimum - .33”/hr; Maximum - .55”/hr
- FLX54: Minimum - .33”/hr; Maximum - .61”/hr
• Pilot Valve: Selectable at 50, 65, 80 and 100 PSI
• Recommended Operating Pressure Range: 65-100 PSI
(maximum-150 PSI and minimum-40 PSI)
• Activation types – Electric Valve-in-Head:
- Standard Solenoid:
n
24 VAC, 50/60 Hz
n
Inrush: 0.30 A
n
Holding 0.20 A
- Spike Guard Solenoid:
n
24 VAC, 50/60 Hz
n
Inrush: 0.12 A
n
Holding 0.10 A
- Nickel-Plated Spike Guard Solenoid:
n
24 VAC, 50/60 Hz
n
Inrush: 0.12 A
n
Holding 0.10 A
- DC Latching Solenoid (DCLS):
n
Momentary low voltage pulse
- Integrated GDC Module w/DCLS:
n
Momentary low voltage pulse
• Trajectory: 25° or 15°
Warranty
• Three years
• Five years when installed
with Toro Swing Joints
FLEX800
™
34/54 SERIES GOLF ROTORS
