FLEX800
™
34/54 SERIES GOLF ROTORS

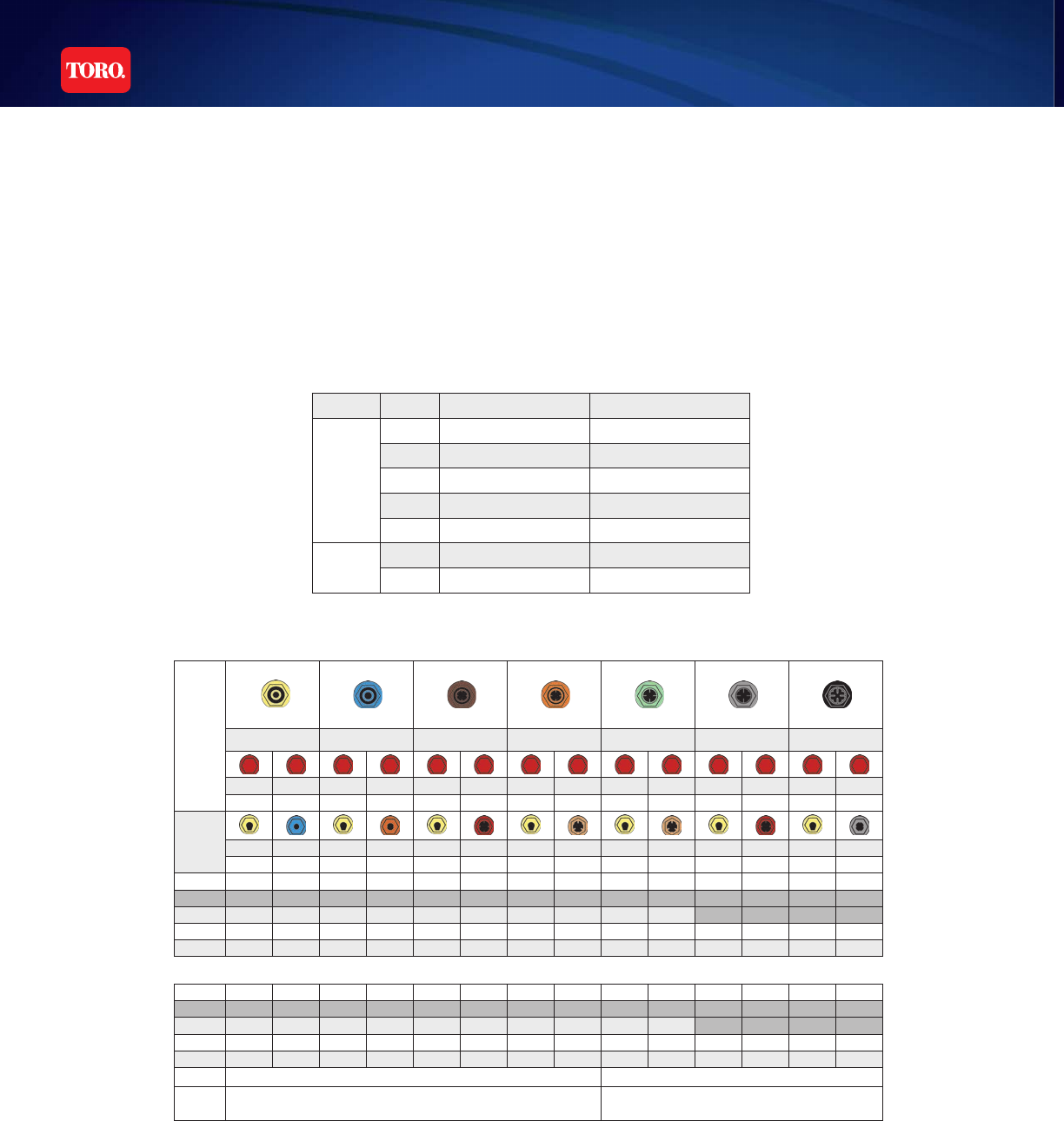

FLX34 Series Performance Chart—25°
Front
Nozzle
Positions
Nozzle Set 31
(Yellow)
Nozzle Set 32
(Blue)
Nozzle Set 33
(Brown)
Nozzle Set 34
(Orange)
Nozzle Set 35
(Green)
Nozzle Set 36
(Gray)
Nozzle Set 37
(Black)
102-0725 102-7001 102-0727 102-7002 102-6908 102-0730 102-4261
Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug Red Plug
102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335 102-4335
Back
Nozzle
Positions
Yellow Blue Yellow Orange Yellow Red Yellow Beige Yellow Beige Yellow Red Yellow Gray
102-6937 102-2925 102-6937 102-2926 102-6937 102-2928 102-6937 102-2929 102-6937 102-2929 102-6937 102-6944 102-6937 102-6945
PSI Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM
50 57 13.0 58 15.5 64 21.9 68 24.4 — — — — — —
65 58 14.6 60 18.0 68 24.4 72 28.1 76 32.2 — — — —
80 60 16.2 63 20.5 72 26.9 76 31.1 80 35.6 83 38.2 85 41.5
100 62 17.9 66 23.4 75 29.8 79 34.9 84 39.3 88 43.4 91 46.9
FLX34 Series Performance Chart—15°
Stator 102-6929 Blue 102-1940 White
Conver-
sions
FLX34-3134 FLX34-3537
■
Not recommended at these pressures. Radius shown in feet.
Toro recommends the use of a 1
1
⁄4" swing joint at flows over 25-GPM (95-LPM).
Sprinkler radius data collected in Toro’s zero wind test facility per ASAE standard S398.1.
Actual site conditions must be considered when selecting the appropriate nozzle.
All sprinklers are equipped with the selectable pilot valve that allows settings at 50, 65, 80 and 100 PSI.
PSI
Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM Radius GPM
50 52 12.9 53 15.6 60 21.7 62 25.5 — — — — — —
65 53 14.4 54 17.1 61 24.2 64 28.0 67 32.1 — — — —
80 56 16.0 57 19.0 65 26.6 69 31.0 73 35.5 76 38.0 77 41.3
100 57 17.5 59 20.5 67 29.5 71 33.9 75 38.4 80 43.1 81 46.8
FLX34 Nozzle Apex
Pressure Nozzle Apex at 15˚ Apex at 25°
65 PSI
31 6’ @ 51’ 13’ @ 54’
32 6’ @ 51’ 11’ @ 64’
33 7’ @ 59’ 13’ @ 68’
34 8’ @ 63’ 15’ @ 74’
35 9’ @ 66’ 15’ @ 76’
80 PSI
36 8’ @ 75’ 18’ @ 83’
37 9’ @ 74’ 19’ @ 82’
