User Manual

FLF3_EVO Brushed flight controller integrated FLSKY RX

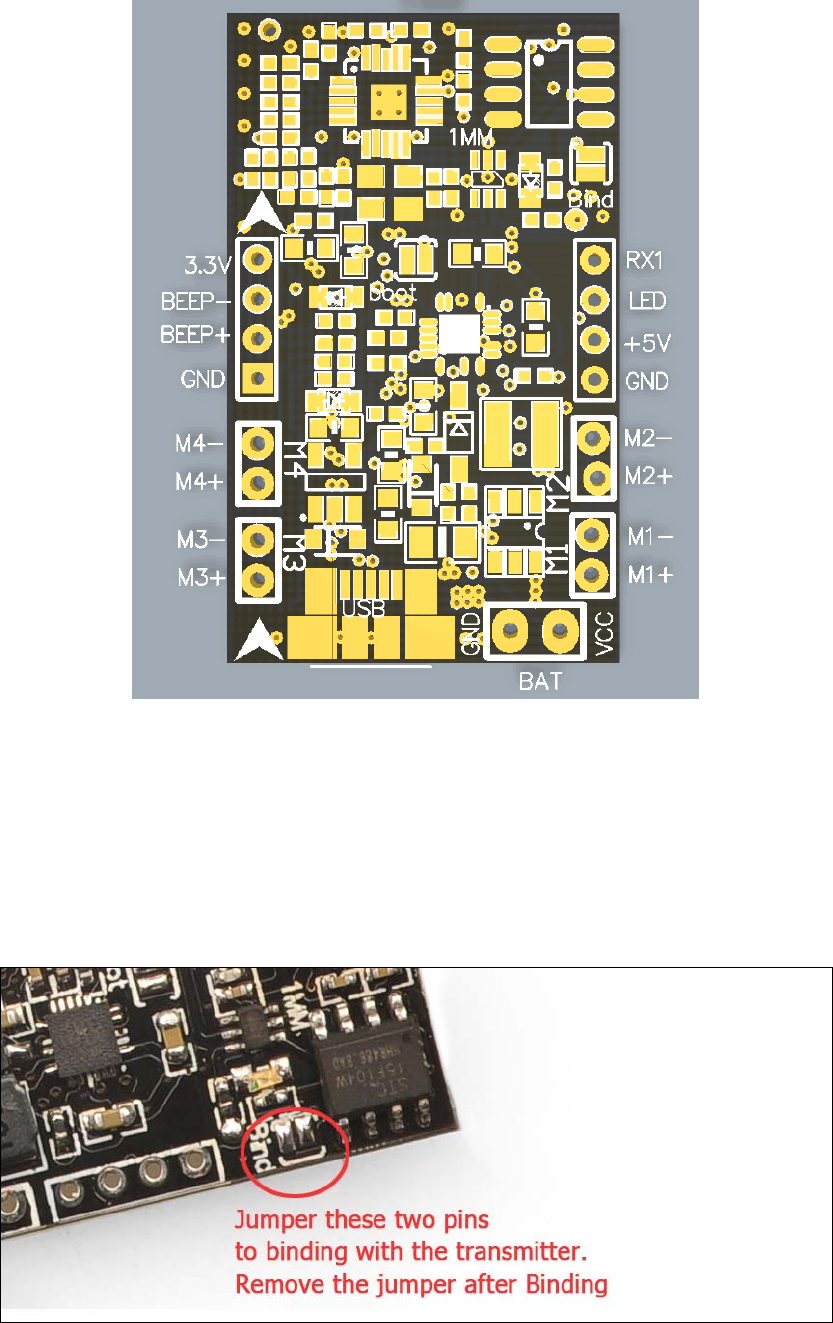

Connection Diagram:

M1/M2/M3/M4 connect to the coreless motor

BAT connect to the battery (1S 3.7V Lipo battery)

BEEP connect to the buzzer

LED +5V GND connect to the WS2812 LED

Binding procedure:

1. Connect the battery to the flight controller while Jumped the two “BIND” pins on the board,

the Blue LED will blinking fast, this indicates the receiver get into the binding mode

PAGE 1
FLF3_EVO Brushed flight controller integrated FLSKY RX Connection Diagram: M1/M2/M3/M4 connect to the coreless motor BAT connect to the battery (1S 3.7V Lipo battery) BEEP connect to the buzzer LED +5V GND connect to the WS2812 LED Binding procedure: 1.
PAGE 2
. Select RX setup to AFHDS Mode, turn on the transmitter while holding the bind button, use the Flysky I6 as an example. The Blue led on the flight controller will getting to be solid ,this indicates binding successful 3. Reconnect the battery, the green LED on the receiver flash fast again, this indicates Receiver and Transmitter are all works ARM/DISARM the motor 1. Turn on the transmitter and move to the AUX. Channels interface, Set “SWA” or “SWB” switch etc.
PAGE 3
. Toggle the Switch SWA or SWB and the blue LED on the flight controller will get be solid, this indicate the motor was armed ,enjoy yourself now and be careful ! 4. If you flashed the firmware, don’t forget to configure the receiver.
