4. Select the type of image you are scanning by clicking on the arrow to the right of the Document Type
field and choosing one of the available document types from the drop-down menu.
5. Select the desired resolution by clicking on the arrow to the right of the Resolution field and choosing
one of the presets from the drop-down menu.
6. Select a scanning intensity level (brightness) by clicking on the arrow to the right of the Brightness
field and choosing the desired brightness level fro the drop-down menu.
7. Indicates the type of material the original image is printed on. Select either Reflective or Transmissive
by clicking the arrow to the right of the Original field.
8. Select the size of the original image by clicking on the arrow to the right of the Scan Area field.
9. Click the OK button to save the Scan push button configuration settings. These settings will be used
whenever you press the Scan button on the front of the scanner.
NOTE: You can also click the Default button to return the values in each field to the default settings.
Then click OK.

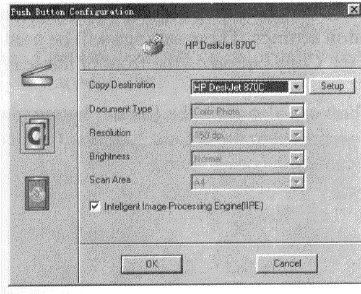

Configuring the Copy Button Values
1. Click the Copy icon to open the window that contains the variables you are adjusting.
2. Select the printer driver you want to use to print the copies, by clicking on the arrow to the right of the
Copy Destination field. Choose one of the available printers that is connected to your computer from
the drop-down menu.
3. Select the type of image you are scanning by clicking on the arrow to the right of the Document Type
field and choosing one of the available document types from the drop-down menu.
4. Select the desired resolution by clicking on the arrow to the right of the Resolution field and choosing
one of the resolution presets from the drop-down menu.
5. Select a scanning intensity level (brightness) by clicking on the arrow to the right of the Brightness
field and choosing the desired brightness level fro the drop-down menu.
6. Original indicates the type of material the original image is printed on. Select either Reflective or
Transmissive by clicking the arrow to the right of the Original field.
7. Select the file size for the scanned image by clicking on the arrow to the right of the Scan Area field
and choosing the desired dimensions from the drop-down menu.
37
