Specifications

3. Click outside of a selected area to save the frame. To create other frames, repeat steps 1 and 2 until
you have created all the desired frames.
4. After you create a frame, the Single Frame tool is automatically selected so you can resize or move the
frame you just created.
To select one of the fames you created, double-click on the desired frame. The frame border of the active
frame changes to a marquis style frame (dotted lines). Once a frame is selected, double-click on a frame to
display the Job Information window for that image, which contains the image information.
To remove a selected frame:

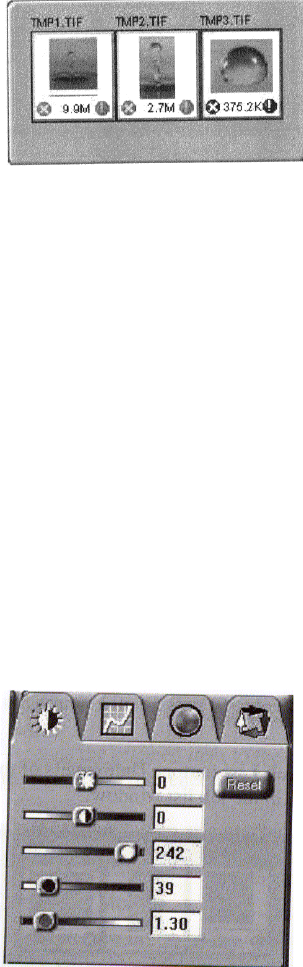

1. Click on the Job List button. Thumbnails of the selected frames appear in the job list window.
2. Click on the thumbnail of the frame you want to remove. A red box appears around the selected
thumbnail. The frame in the Preview window associated with the thumbnail, changes to a dashed
outline.
3. Click on the “X” button, located in the bottom-left corner of the thumbnail, to remove the frame.
Using the Color Adjustment Features
The Color Adjustment features allow you to make adjustments to the colors and/or tones in an image. The
following lists the color adjustment settings you can modify:
• Brightness, contrast, highlights, shadows, and gamma
• Image tones
• Color balance
• Rotation/Invert
Adjusting Image Brightness, Contrast, Highlights, and Shadows
When you click on the Brightness/Contrast tab from the Color Adjustment panel a series of slide bars
appear. Adjust the associated tones by dragging the slider in one of the bars to the left or the right.
28
