Page 10 of 13

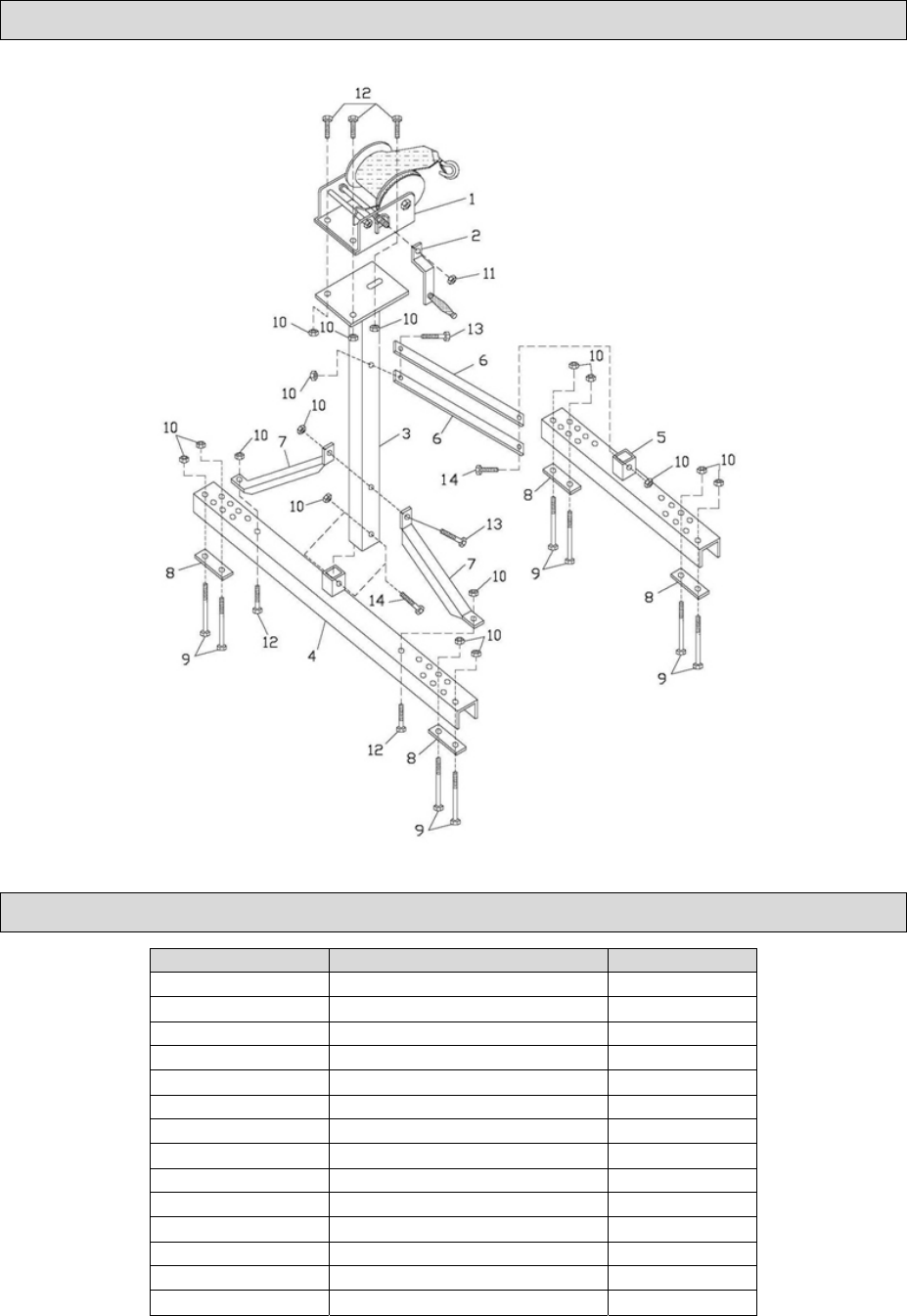

Parts Diagram

Parts List

Reference No. Description Qty

1 Hand Winch Assembly 1

2 Handle 1

3 Stand 1

4 Back Mounting Bracket 1

5 Front Mounting Bracket 1

6 Plate 2

7 Support Plate 2

8 Support Board 4

9 Hex Bolt M10x190 8

10 Lock Nut M10 17

11 Lock Nut M12 1

12 Hex Bolt M10x25 5

13 Hex Bolt M10x65 2

14 Hex Bolt M10x60 2
