Version 1.1 rev Jan 2013
Page 91
iXon Ultra
Hardware
4.3.1 - Thermoelectric cooler
The iXon Ultra range makes use of a four-stage Peltier cooling assembly, which utilizes the thermoelectric effect to
rapidly cool the sensor down to the stable operating temperature. TE coolers have a cold end (in contact with the
sensor) and a hot end. Heat must be efciently dissipated from the TE cooler for effective cooling of the sensor.
The iXon Ultra is designed to yield maximum heat dissipation, via either forced air cooling (in-built fan) or water cooling
which, in combination with Andor’s UltraVac
TM
vacuum process, results in market-leading cooling performance. A
recirculator or a chiller can be purchased from Andor Technology to provide convenient and effective heat dissipation
through water cooling.
The iXon Ultra camera also contains temperature control components, which regulate the cooling of the camera and
ensure that a stable temperature is maintained between and throughout measurements.

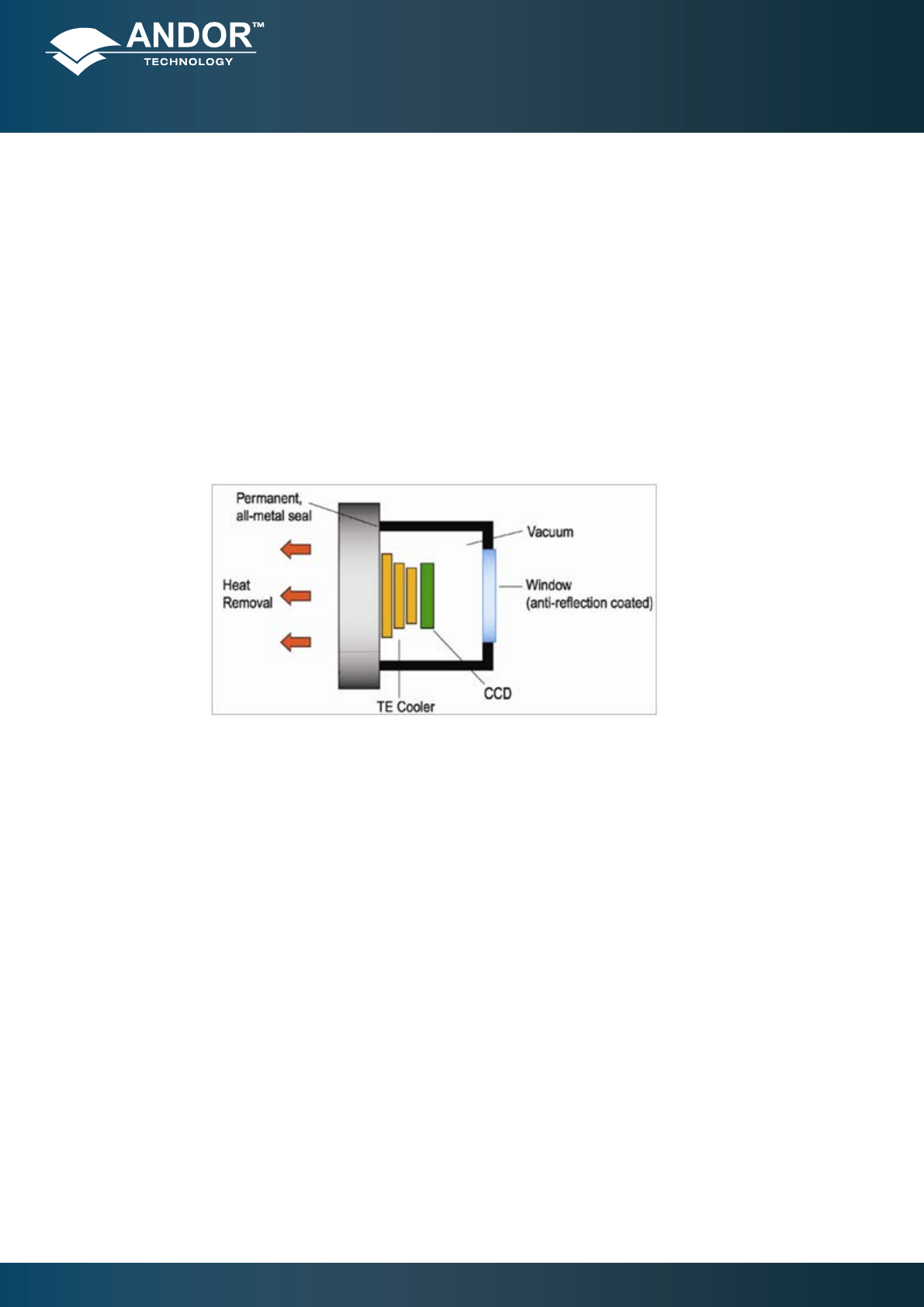

Figure 39: Ultravac
TM
metal hermetic vacuum sealing
