3.10.1 - Photon Counting by Post-Processing
As a post-processing analysis, the user holds the exibility to ‘trial and error’ photon counting a pre-recorded kinetic
series, trading-off temporal resolution vs SNR by choosing how many images should contribute to each photon counted
accumulated image.
For example, a series of 1,000 images could be broken down into groups of 20 photon counted images, yielding 50 time
points. If it transpires that better SNR is required, the original dataset could be re-treated using groups of 50 photon
counted images, yielding 20 time points.

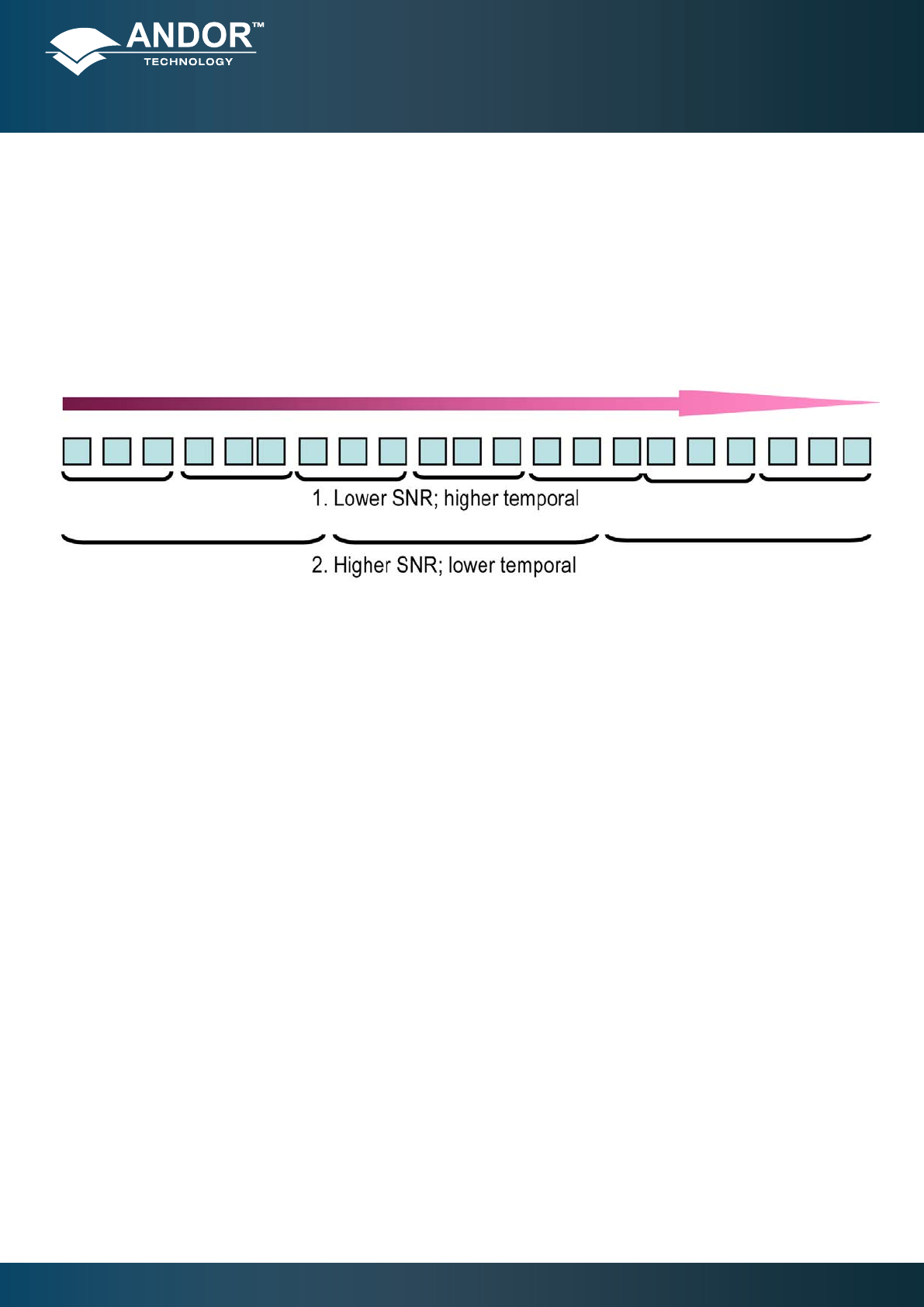

Figure 38: Schematic illustration of how photon counting can be applied to a kinetic series as a post processing step, affording increased
exibility in ‘trial and error’ trading temporal resolution vs SNR.
Time
