3.5.2.3 - External Exposure (NFT)
This mode is distinct from the triggering modes discussed previously, in that the exposure period is fully controlled by
the width of the external trigger pulse. The exposure period starts on the positive edge and concludes on the negative
edge. The exposure is physically ended by shifting the Image area into the Storage area. The Storage area is then
readout in the normal manner.
On completion of the readout, the external Keep Clean Cycle is started again.

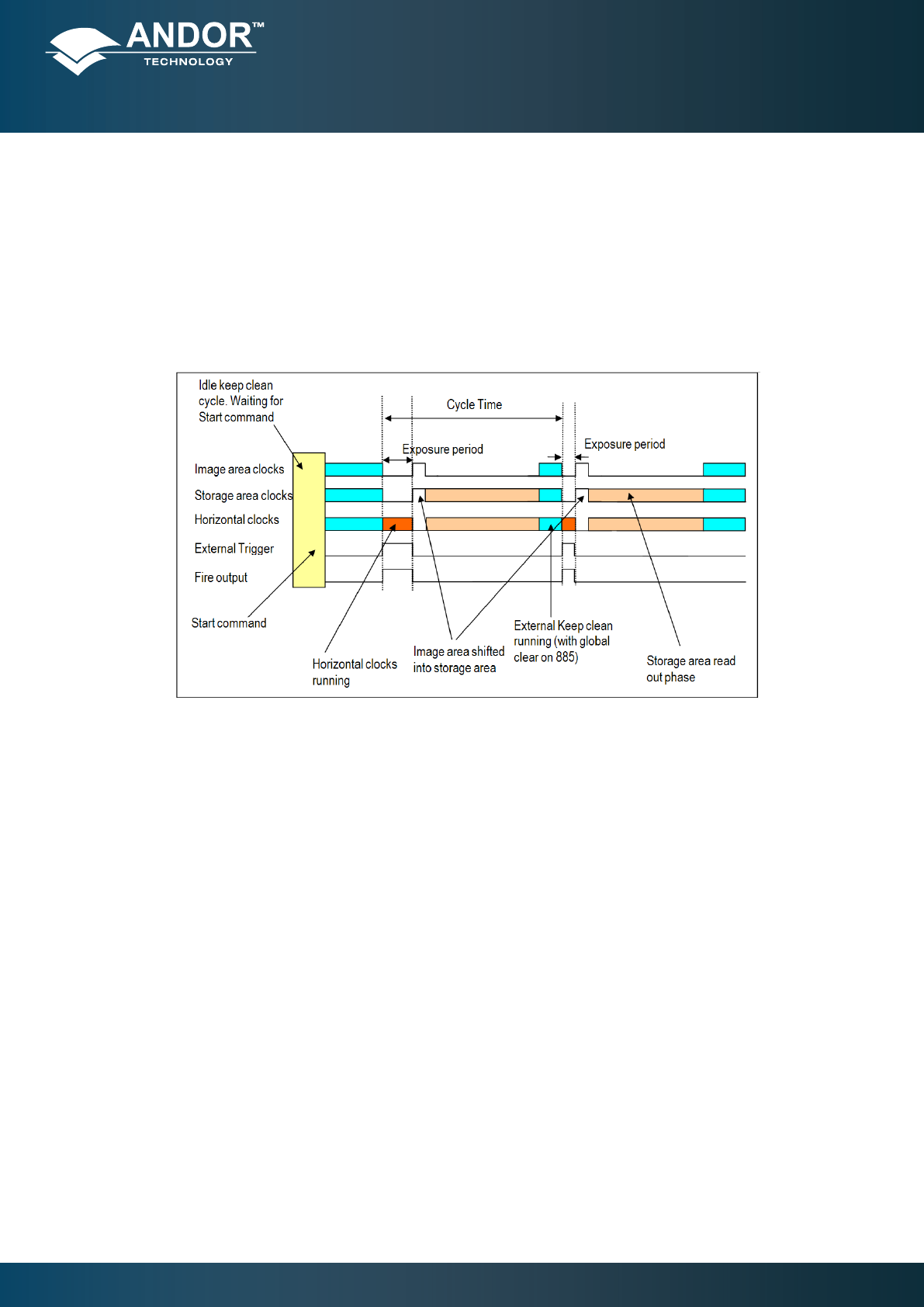

Figure 30: External Exposure Trigger in Non-Frame Transfer mode
