iXon Ultra
, Features and Functionality
Since all iXon Ultra cameras have iCam technology, the rising edge of the external trigger can occur before the end of
the previous read out, provided that the falling edge of the Fire pulse occurs after the readout has completed, i.e. the
External Trigger is only accepted up to the ‘User Dened Delay Period’ before the end of the readout. This enhanced
trigger mode will result in a higher frame rate (see Figure 26 below):

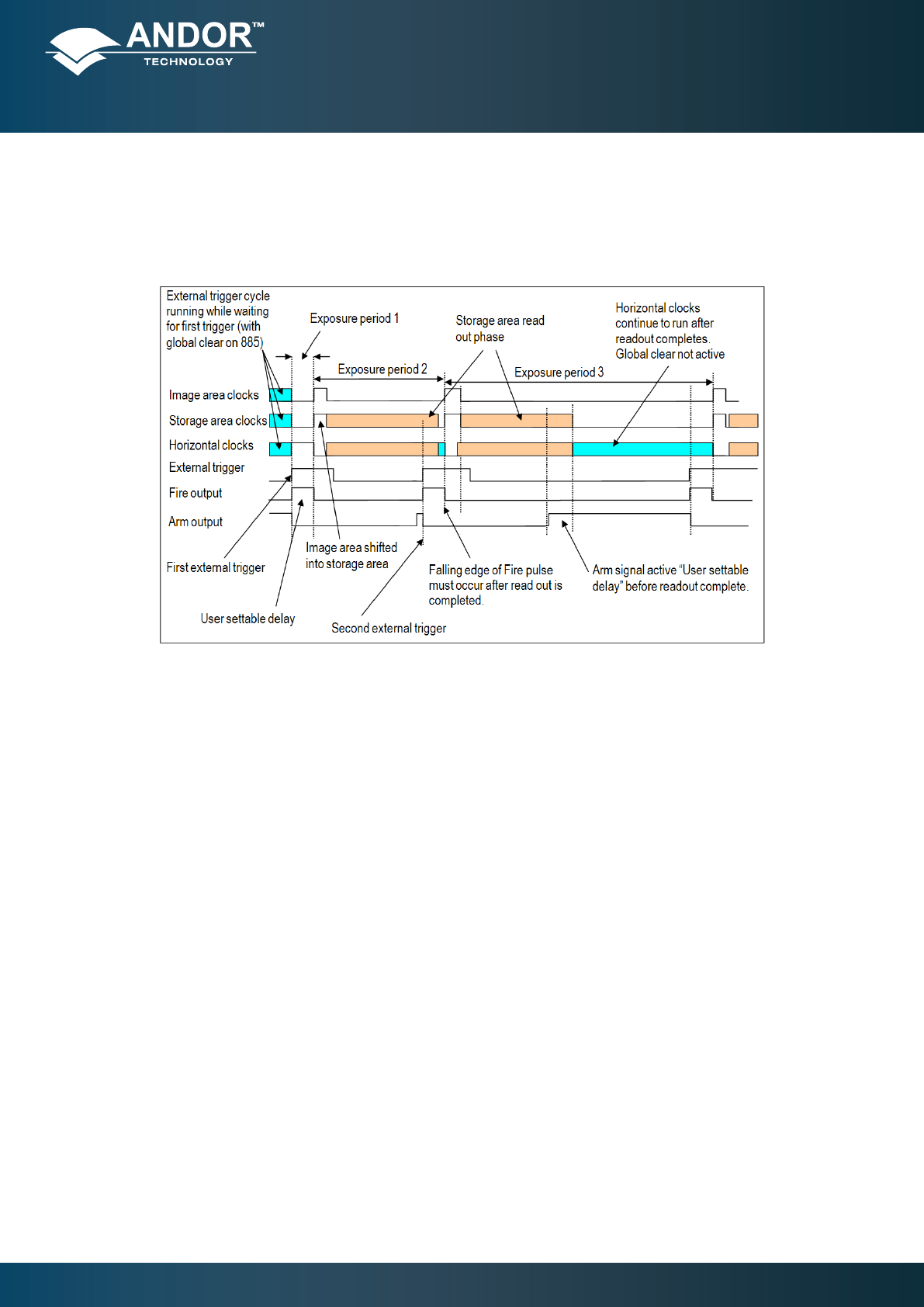

Figure 26: ‘iCam-enhanced’ External Trigger in Frame Transfer mode
