Version 1.1 rev Jan 2013
Page 47
iXon Ultra
, Features and Functionality
3.1.8 - Gain and signal restrictions
Part of the measures taken to prevent premature ageing of the sensor has been to use temperature compensated real
gain limits, coupled with signal intensity feedback (after EM amplication). This ensures that the user is unable to apply
excessive gain and/or signal, any more than is necessary to render the read noise oor negligible for a given signal
intensity and readout speed. Secondly, when not actually acquiring data, as for example during “keep clean” cycles
or when outside a selected sub-image area, Andor EMCCDs have been internally congured to prevent any unwanted
signal entering the EM Gain register. Together, these measures ensure that the rate of EM Gain ageing is signicantly
reduced.
3.1.9 - EMCAL
TM
Andor has developed, in the iXon Ultra, a unique and patented method of user-initiated EM Gain self-recalibration -
EMCAL
TM
.
The reduction in EM Gain over time can be corrected by using the EMCAL
TM
self-recalibration process, which is very
easily initiated by the user. Please check the Andor website for the latest EMCAL
TM
routine.
This process uses the iXon Ultra in-built temperature compensated linear gain scales to reset the EM Gain calibration to
reect the true values requested on the software scale, giving the RealGain
TM
values. This means optimal signal to noise
ratio, maximum dynamic range and prolonged system longevity (See Figure 15).

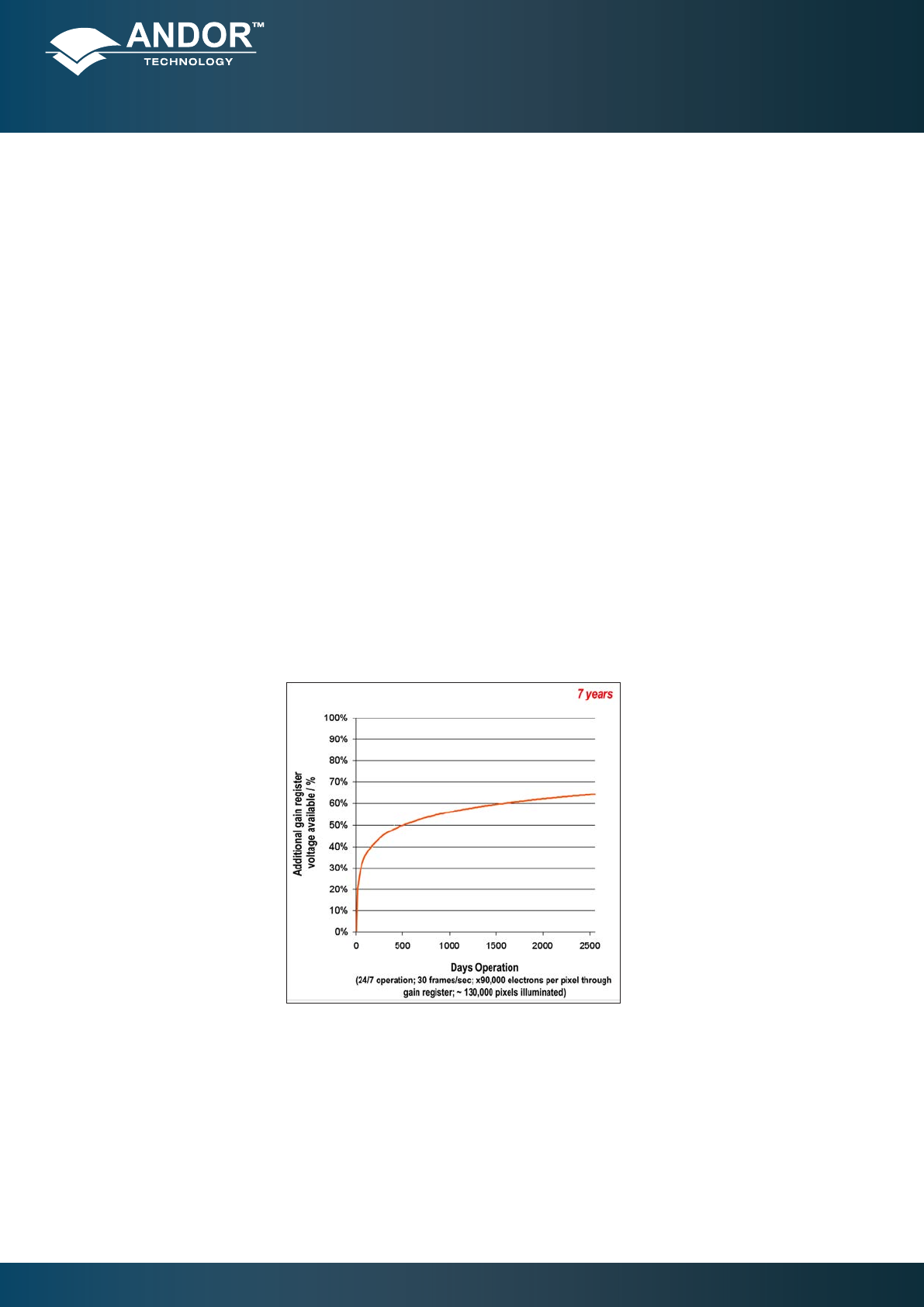

Figure 15: Ageing prole of an Andor backlit EMCCD. Test conditions: 24/7 operation; 30 frames/sec; x90,000 electrons per pixel through gain
register; ~ 200,000 pixels illuminated
