iXon Ultra
Installation
2.6 - MOUNTING POSTS
• Mountingpostscanbettedonallfoursidesofthecamera.Thesecanbeusedtomountthecameraifthe
C-Mount is not used, or to mount accessories.
NOTE: A bag containing two Ø1/2" x 80 mm long x 1/4-20 UNC posts is included with all kits.
• Thereare4pairsofholesforthemountingposts,eachwith2.0"spacing.

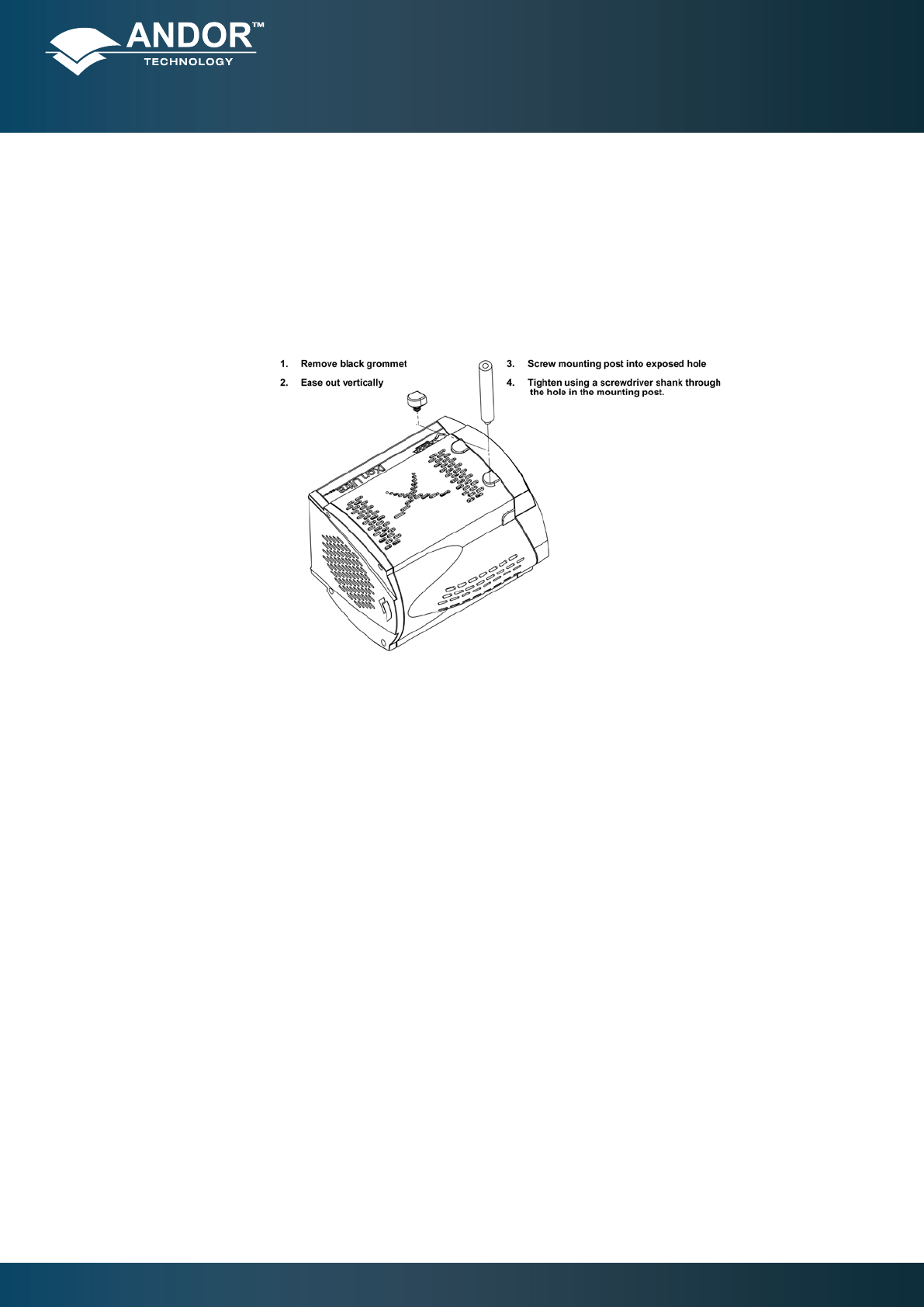

Figure 6: Mounting post installation
