Version 1.1 rev Jan 2013
Page 30
iXon Ultra
Installation
2.3 - NEW HARDWARE WIZARD

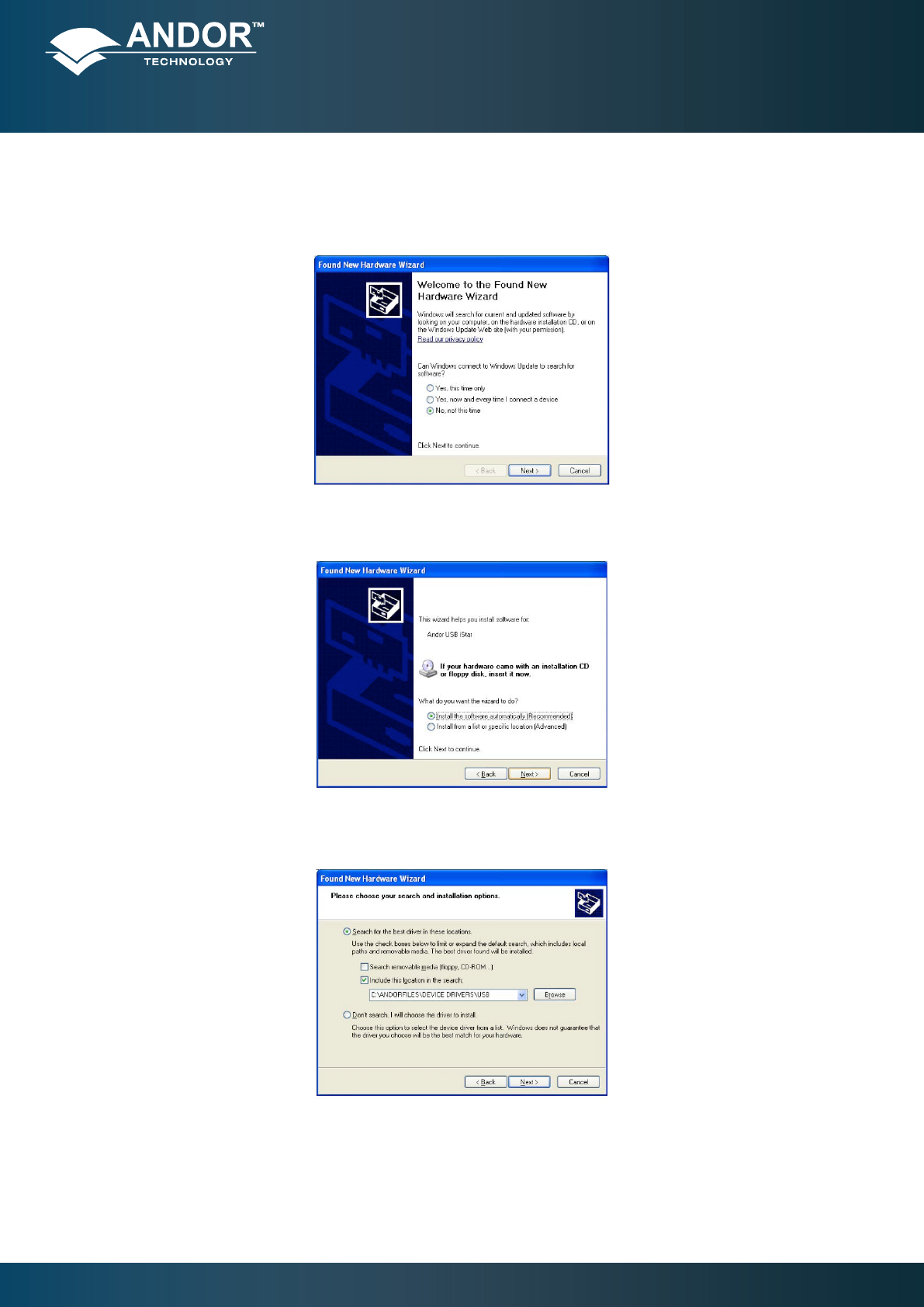

When the rst iXon Ultra camera is connected to a PC for the rst time, the Found New Hardware Wizard screen will
appear, e.g.:
1. Select the ‘No, not this time only’ option then click Next> and the following screen appears:
2. Select the ‘Install from a list or specied location (Advanced)’ option then click Next>. The following screen
appears:
3. Navigate to the directory where the Andor Solis software was installed to on the PC, then click Next>
