iXon Ultra
Installation
2.2 - INSTALLING ANDOR SOLIS SOFTWARE -
WINDOWS O/S(XP/VISTA/SEVEN)
1. Terminate and exit any programmes that are running on the PC.
2. Insert the Andor CD. The InstallShield Wizard now starts. If it does not start automatically, run the le setup.exe

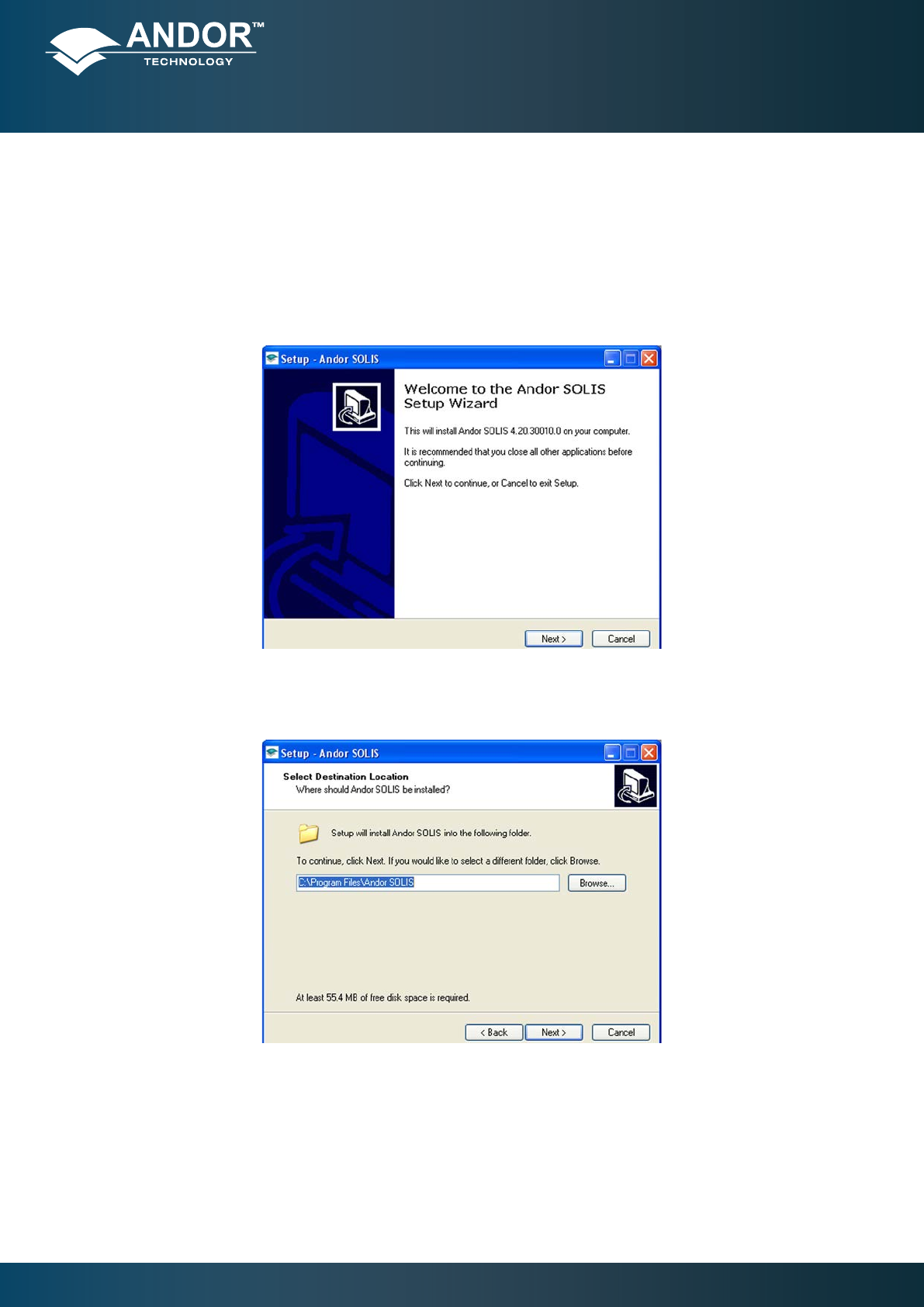

directly from the CD then follow the on-screen prompts e.g.:
3. Click Next > and the following dialog box appears:
4. Click Next > (alternatively, click on Browse…, choose your own le destination then click Next >).
