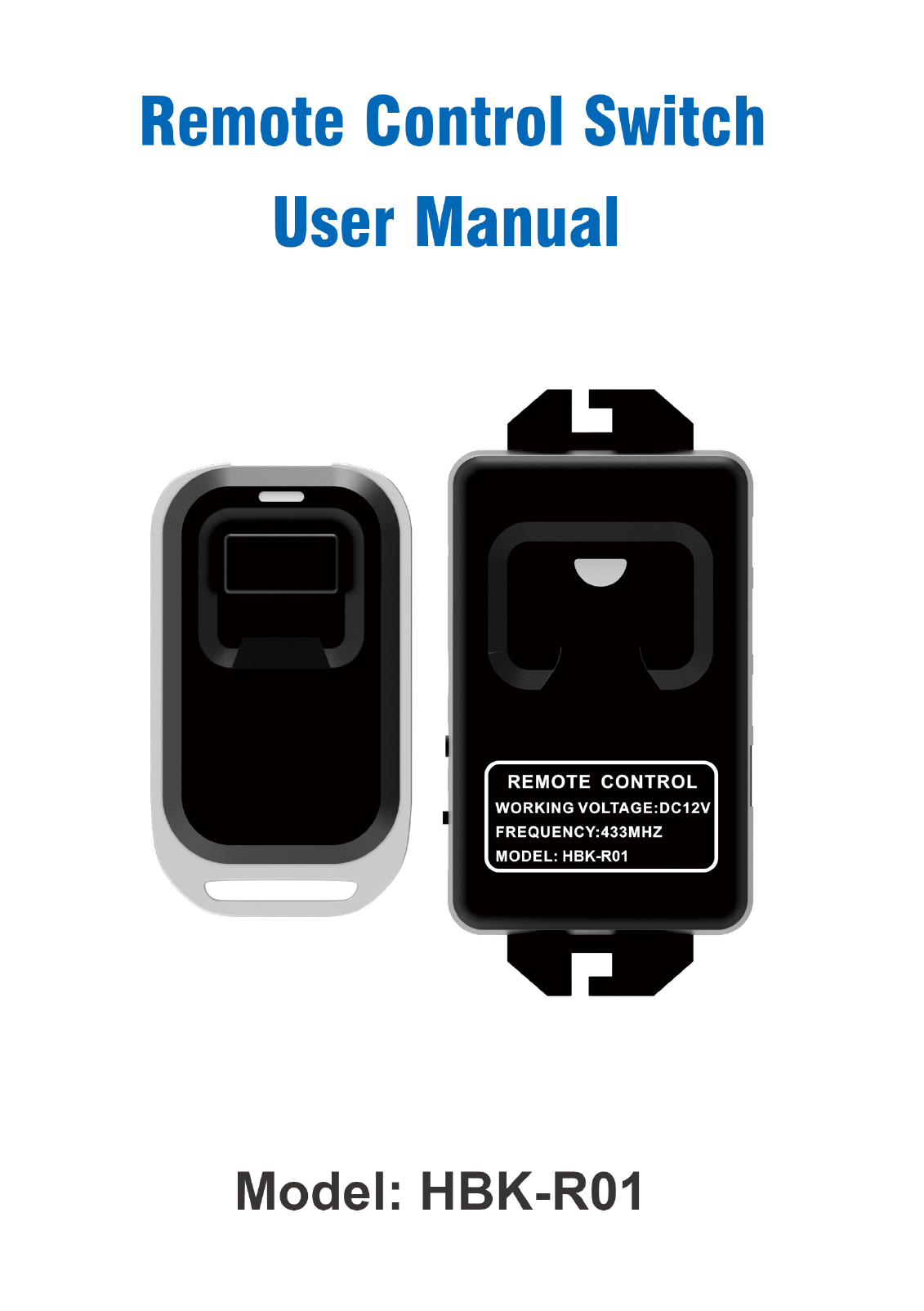

Thank you for choosing the wireless remote control switch provided by us. Our goal is to provide the best products and service to all of you! PRECAUTION For avoidance of damage to the product or injury to the people, please carefully read this manual before use and keep it for future reference. Warnings A » For avoidance of damage to the product, do not expose the product to rain or damp. + This product is only for indoor use.
MAIN FEATURES « Specialized for the access control system and unable to be applied to other fields. » The number of the remotes which can be connected to one receiver and the receiving range of the receiver meters. » 0/5/10 seconds locking delay time is adjustable, and default is 5 seconds. » Toggle switch makes: it more convenient to choose your desired operating mode (Toggle, latched and momentary). » Support connecting external access keypad and 12VDC active buzzer.
components Model Manufacturer Meu STMESDOAF2E sT Linear Regulator SPX1117-3.3 SIP EX RF Transceiver Chip SYNCHRONY SYNONYMY Relay G50 MORON MAIN COMPONENTS OPERATING SETTINGS aR 5) 1. Lock Mode Select gl NO: Fail-Secure Lock “SY NC: Fail-Safe Lock > 2. Operating Mode Select Rel, Toggle bs SURE |: Latched Marin KAR pend Momentary 3. Time Delay Select Support 0/5/10 seconds locking delay time, default is'5 seconds. 4.
WIRING DIAGRAM 1.
TROUBLESHOOTING 1. Q: Why does not the transmitters LED light up when | press the button oh it? A: The battery power may be exhausted. Please replace the battery. 2. Q: Why can't the lock be unlocked after pressing the transmitter? A: Please check the issue by the following steps: a: Check whether the remote control receiver and transmitter are paired successfully. b. Check whether there is any metal object around the remote control receiver as it may shield the signal. 3.
