User Manual

Introduction

Thank you for purchasing the Ubiquiti Networks

™

RocketDish

™

an airMAX

™

Carrier Class 2x2 PtP Bridge Dish Antenna. This Quick

Start Guide is designed to guide you through the installation of

the antenna. This Quick Start Guide also includes the warranty

terms and is for use with the RocketDish, model RD-5G34.

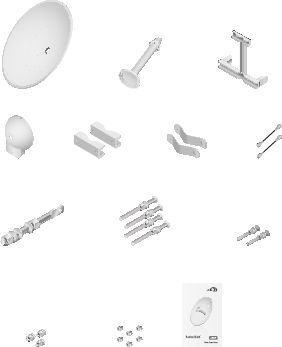

Package Contents

Dish Reflector Antenna Feed Main Mounting Bracket

Protective

Shroud

Pole Clamps

(Qty. 2)

Stabilizer Brackets

(Qty. 2)

RF Cables

(Qty. 2)

Elevation Rod M12x180 Carriage Bolts

(Qty. 4)

M10x100 Bolts

(Qty. 2)

airMAX

™

Carrier Class

2x2 PtP Bridge Dish Antenna

Model: RD-5G34

M10x25 Carriage Bolts

(Qty. 3)

M4 Bolts

(Qty. 6)

Quick Start

Guide

Products may be different from pictures and are subject to change without notice.

and earth grounding must be used as conditions of product warranty. TOUGHCable is designed

for outdoor installations. It is the customer’s responsibility to follow local country regulations,

including operation within legal frequency channels, output power, and Dynamic Frequency

Selection (DFS) requirements.
