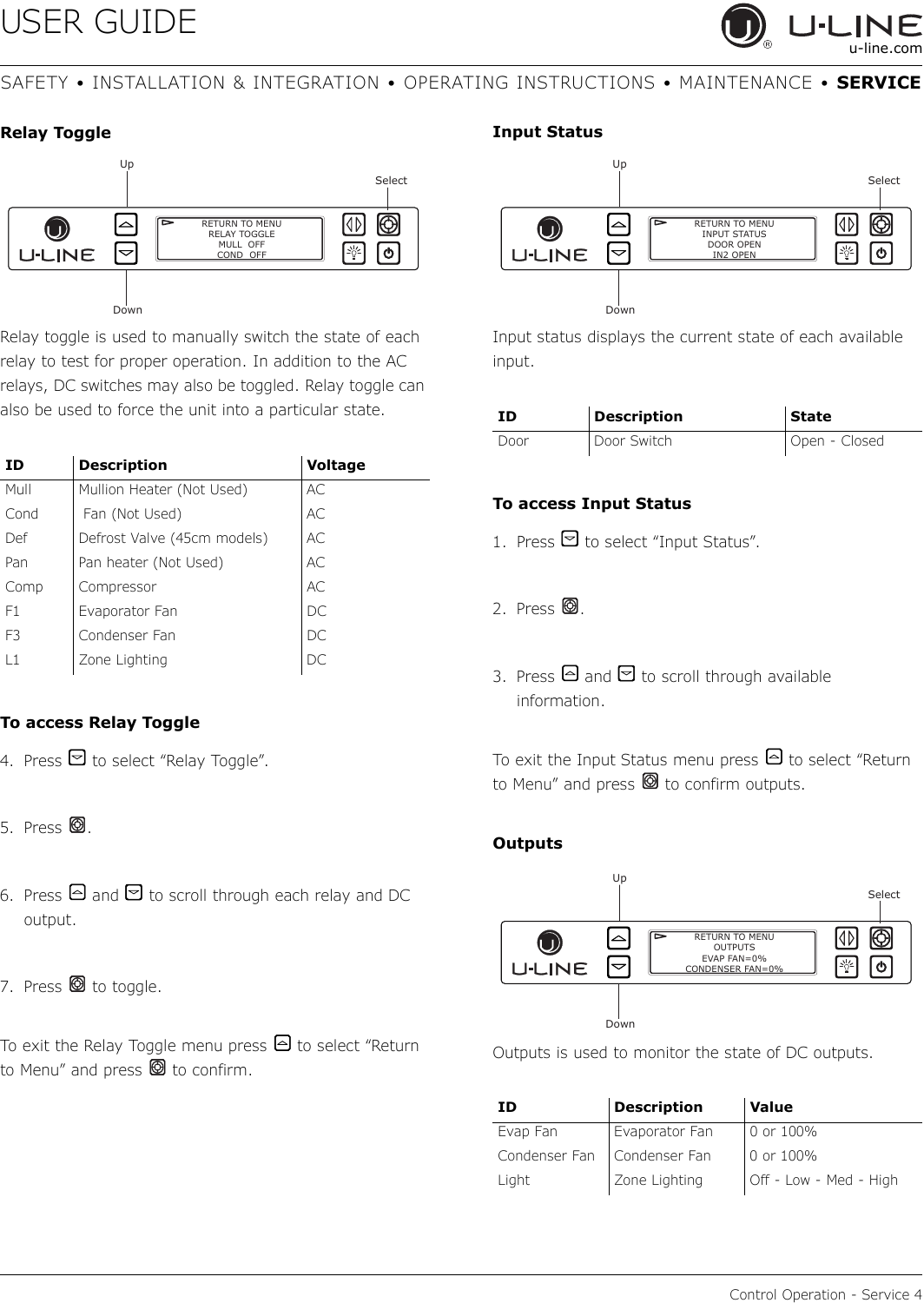

Relay Toggle
Relay toggle is used to manually switch the state of each
relay to test for proper operation. In addition to the AC
relays, DC switches may also be toggled. Relay toggle can
also be used to force the unit into a particular state.
To access Relay Toggle
4. Press to select “Relay Toggle”.
5. Press .
6. Press and to scroll through each relay and DC
output.
7. Press to toggle.
To exit the Relay Toggle menu press to select “Return
to Menu” and press to confirm.
Input Status
Input status displays the current state of each available
input.
To access Input Status
1. Press to select “Input Status”.
2. Press .
3. Press and to scroll through available
information.
To exit the Input Status menu press to select “Return
to Menu” and press to confirm outputs.
Outputs
Outputs is used to monitor the state of DC outputs.
ID Description Voltage
Mull Mullion Heater (Not Used) AC
Cond Fan (Not Used) AC
Def Defrost Valve (45cm models) AC
Pan Pan heater (Not Used) AC
Comp Compressor AC
F1 Evaporator Fan DC
F3 Condenser Fan DC
L1 Zone Lighting DC
Up
Select
Down
RETURN TO MENU
RELAY TOGGLE
MULL OFF
COND OFF
ID Description State
Door Door Switch Open - Closed
ID Description Value
Evap Fan Evaporator Fan 0 or 100%
Condenser Fan Condenser Fan 0 or 100%
Light Zone Lighting Off - Low - Med - High
Up
Select
Down
RETURN TO MENU
INPUT STATUS
DOOR OPEN
IN2 OPEN
Up
Select
Down
RETURN TO MENU
OUTPUTS
EVAP FAN=0%
CONDENSER FAN=0%
