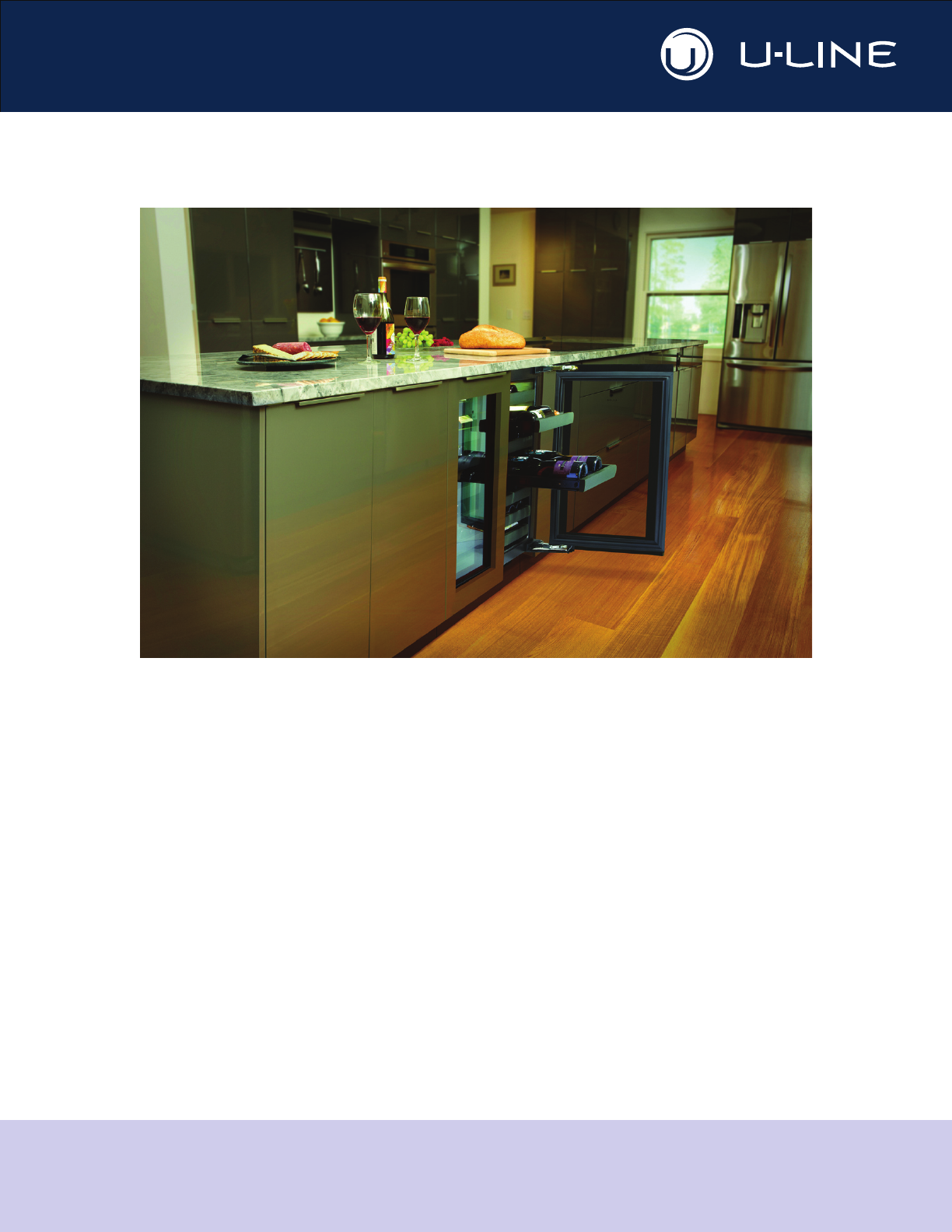

® USE AND CARE GUIDE MODULAR 3000 SERIES MODELS: U-3018RFOL-00 U-3018RFOL-01 U-3018RFS-00 U-3018RFS-01 U-3018RGLOL-00 U-3018RGLOL-01 U-3018RGLS-00 U-3018RGLS-01 U-3018WCOL-00 U-3018WCOL-01 U-3018WCS-00 U-3018WCS-01 U-3036BVWCOL-00 U-3036BVWCS-00 U-3036RRGLOL-00 U-3036RRGLS-00 U-3036RROL-00 U-3036RRS-00 U-3036WCWCOL-00 U-3036WCWCS-00 The Built-In Undercounter Leader Since 1962 U-LINE.
Introduction Please Record Your Model Information Building on 45 years, U-Line has captivated those with an appreciation for the finer things with exceptional design, inspired innovations and attention to even the smallest details. U-Line is synonymous with premium built-in under counter ice making, refrigeration and wine storage appliances, the U-Line Corporation is committed to luxury under the counter. U-Line is known and respected for unwavering dedication to product innovation, quality and selection.
1 Table of Contents Introduction Read and save this Use and Care Guide............................................................................................................ i Please Record Your Model Information ............................................................................................................ i Safety Precautions Safety Alert Definitions.........................................................................................................................................
2 Safety Precautions General Precautions IMPORTANT • PLEASE READ all instructions before installing, operating, or servicing the appliance. • Proper installation procedures must be followed when completing an installation or relocation of a unit. Consult the installation guide before any installation begins. U-Line contact information appears on the rear cover of this guide.
3 3000 Series Product Features Refrigeration Centers (Glass Door) Glass Door: Standard with energy efficient, Low-E coated, argon filled glass doors. Door(s) are available in stainless steel wrap or overlay. Adjustable Shelving: 3000 Series Features: Advanced OLED control system: State of the art OLED control system display. 3018: 3 removable/adjustable tempered glass shelves, 1 fixed lower shelf. 3036: 6 removable/adjustable tempered glass shelves, 3 per zone, and 2 fixed lower shelves, 1 per zone.
Zone Control 3036 Models 4 Product Operation 3036 Models have a single control module for both zones. Each side of the control refers to a specific zone. See Below. Air Flow Left Zone Right Zone IMPORTANT The unit requires proper air flow to perform at its highest efficiency. Do not block the front grille, internal fans or vents at any time, or the unit will not perform as expected. Do not install the unit behind a door.
3018 Model Food Storage Chart Zone Food Types Up Select Deli Meats, Fish, Cheeses, Dairy, Butter, Garlic, Oils, Nuts, Condiments Market Fruits, Vegetables, Berries, Lettuce Pantry Dry Goods, Breads, Baking Items, Spices, Seasonings Root Power U-Select Lighting Down Root Vegetables, Potatoes, Onions, Lemon, Lime, Melon, Peppers, Beans, Cucumber, Cut Vegetables 1. To begin, press U-Select Lighting to enter the lighting menu. 2.
Actual Temps Sabbath Mode Up Up Select Select RETURN TO MENU SABBATH MODE OFF RETURN TO MENU ACTUAL TEMPS LEFT ZONE = 38°F RIGHT ZONE = 38°F 3036 Model Display Shown Down Down The Actual Temps option displays the actual temperature of each zone, evaporator, as well as ambient temperature. 1. To view Actual Temps first select Actual Temps from the customer menu. 2. Use Up or Down to scroll through available information. Return to Menu. 3.
Sound Level Help Up Up Select Select RETURN TO MENU Help Model 3018WC 1-800-779-2547 RETURN TO MENU SOUND LEVEL HIGH Down Down Audible alarms and alert tones support four different Sound Level settings, High, Medium, Low, and Off. To select a new sound level, enter the Sound Level menu from the Customer Menu. 1. Use Up 2. Press Select 3. Use Up 4. Use Select or Down to select the current sound level. • Model. • U-Line Contact Phone Number. • Software version.
Electronic Control Quick Guide Task Press Power ON/OFF Select Zone (3036 Models Only) Select Zone Type Fine Tune Temperature Set Point Adjust Cabinet Lighting Display Comment OFF Display will begin a 5 second countdown To Power Off. RED WINE 55 OF RED WINE 55 OF RED WINE 55 OF SET U-SELECT LIGHTING LIGHTING LEVEL HIGH DOOR ONLY U-Line Product Operation Display will show The selected zone. Zone will flash during selection. Continue to press Select button to cycle through all available zones.
5 U-Line Wine Guide Matching Food and Wine Looking Behind the Label To most, wine is a delicious mystery. We purchase it, uncork it, and savor its taste and beauty. But there is so much more to true wine appreciation. Many secrets are simply too good to keep bottled up. Wine Selections Suggestions Selecting the right wine for the right occasion can sometimes be a seemingly awkward or difficult task for the beginning wine enthusiast.
The Cork: A Mystery on Its Own. Ideal Wine Storage Considerations Cork Presentation. The ritual of the presentation of the cork has a rich and fascinating history dating back to the late 1800's. A phylloxera (root louse) devastation to the vineyards severely limited the supply of great wines. Restaurateurs would remove labels on inferior wines and replace them with labels from superior wines.
Wine Stocking Recommendation Specially designed horizontal wine racks properly positioned the bottles so the wine remains in contact with the cork and assure the cork does not become dry. Stock the unit as follows: 1. Stock the wine racks beginning with the lowest rack, at the back, and working forward. Stagger the bottles as shown. 2. Repeat Step 1 to stock the next higher rack, and continue until all racks are filled. 3. Larger diameter bottles may be stored on the bottom 2 shelves.
Removing and Installing Grille 6 3000 Series Maintenance WARNING Leveling • Disconnect electrical power to the unit before removing the grille. • Edges of sheet metal may be sharp IMPORTANT Unit must be level for proper door operation 1. Use a level to check the levelness of the unit from front to back and from side to side. Place the level along top edge and side edge as shown (1). 2.
Adjusting Interior Shelves Wine Rack Removal and Installation Models equipped with glass shelves have an adjustable mounting system. To adjust or simply remove shelves for cleaning, follow the instructions below. Wine cabinets are equipped with full extension wine racks. To remove your wine racks for cleaning follow the instructions below. Removing / Installing Glass Shelves. To remove a rack from the cabinet: 1. Remove any bottles stored on the rack. 1. Remove all product from shelf. 2.
Refrigerator Bin Installation & Removal. Refrigerator bins are easily removed for cleaning and sanitizing. To remove your bin follow the instructions below. 1. Fully extend the bin you wish to remove from the cabinet. 2. Lift the front lip of the bin and raise the bin of the racks. 3. Lift the rear of the bin off it’s seat on the rack. 4. Pull the bin up and away from the racks. To Reinstall 5. Fully extend the empty rack from within the cabinet. 6. Set the rear of the bin over the rear of the slide. 7.
4. Gently pull bottom of wrap away from door. 7 3000 Series Doors Door Alignment and Adjustment 5. The Wrap hinges on top of the door. Carefully pull wrap away and then up. See Below. Align and adjust the door if it is not level, or is not sealing properly. If the door is not sealed the unit may not cool properly, or excessive frost or condensation may form in the interior.
Defrosting 8 Cleaning Exterior Cleaning • Stainless door panels, and handles can discolor when exposed to chlorine gas, pool chemicals, saltwater or cleaners with bleach. • Keep your stainless unit looking new by cleaning with a good quality all-in-one stainless steel cleaner polish monthly. For best results use Claire® Stainless Steel Polish and Cleaner, which can be purchased from U-Line Corporation (Part Number 173348). Comparable products are acceptable.
11. Remove collection chambers and set drain lines back onto their respective evaporator plates. Be sure to push the drain line into it’s anchor. 12. Reinstall the lower panel. Do not overtighten panel screws. 13. Move unit back into position and re-connect power. Allow unit to stabilize for 12 hours before reintroducing product. Condenser Cleaning Interval - Every Three Months To maintain operational efficiency, keep the front grille free of dust and lint, and clean the condenser every three months.
Troubleshooting Guide 9 Service DANGER Before Calling for Service ELECTROCUTION HAZARD. Never attempt to repair or perform maintenance on the unit until disconnecting the main electrical power. If you think your U-Line product is malfunctioning, read the OPERATION section of this guide to understand clearly the function of the control.
This Page Intentionally Left Blank U-Line Use and Care Guide 18
This Page Intentionally Left Blank 19 U-Line Use and Care Guide
U-LINE CORPORATION LIMITED WARRANTY FOR MODULAR 3000 SERIES PRODUCTS 1.U-Line Corporation ("U-Line") warrants each U-Line Modular 3000 Series product to be free from defects in materials and workmanship for a period of two years from the date of purchase.
® USE AND CARE GUIDE PRODUCT INFORMATION Installation Guides with complete installation information, Custom Wood Panel Size Specifications & Installation Instructions, CAD Drawings, Use and Care Guides, Specifications & Feature Benefits are available for viewing and download on-line at www.u-line.com/specs/.
