BATTMETER

Quick View System

Monitor

▫ Remote Power Stations

▫ Backup Power Systems

▫ Recreational Vehicles

▫ Boats, Motor Homes

▫ Remote Cabins

Congratulations! on your purchase of the TP-BATTMETER

Quick View System Monitor. Please take a moment to review this

Qwik Install Guide before assembly or battery installation.

Recommended Tools: Phillips Screwdriver

Summary of content (4 pages)

PAGE 1
BATTMETER Quick View System Monitor ▫ Remote Power Stations ▫ Backup Power Systems ▫ Recreational Vehicles ▫ Boats, Motor Homes ▫ Remote Cabins Congratulations! on your purchase of the TP-BATTMETER Quick View System Monitor. Please take a moment to review this Qwik Install Guide before assembly or battery installation.
PAGE 2

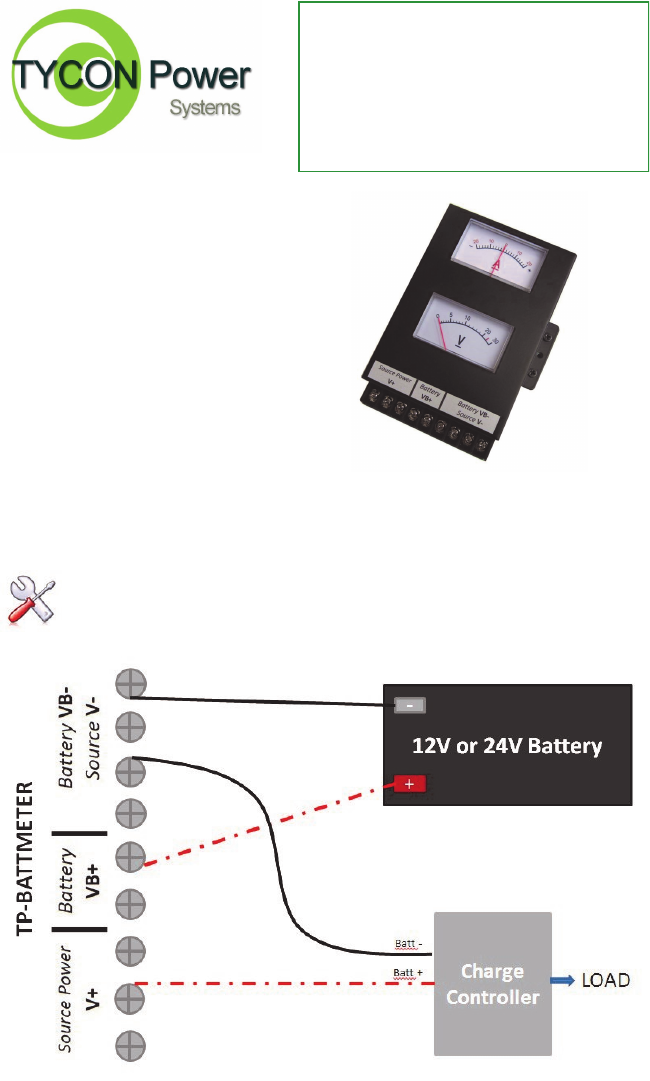

Qwik Install STEP 0: The BATTMETER is normally installed between a power source like a charge controller or generator and the battery or battery array. The load would normally be connected to the charge controller. If load is connected directly to the battery the load would be connected to the V+ and V– terminals of the BATTMETER, STEP 1: Install the BATTMETER to a wall or to a DIN Rail using the included green DIN Rail adapters.
PAGE 3
TECH CORNER Additional Information you may find useful 1. FUSE: The BATTMETER has an internal 20A fuse. The type is AGX20 or SFE-20 type. There is one screw in the top of the BATTMETER. Remove the screw and carefully separate the cover from the base. Replace the fuse as necessary. 2. LIMITS: Don’t exceed 30V or 20A or the meters could be damaged. 3. MOISTURE: The BATTMETER is designed to be used indoors or outdoors in a weatherproof enclosure. Avoid getting the BATTMETER wet. 4.
PAGE 4
Limited Warranty The BATTMETER products are supplied with a limited 24 month warranty which covers material and workmanship defects. This warranty does not cover the following: ▫ Parts requiring replacement due to improper installation, misuse, poor site conditions, faulty power, etc. ▫ Lightning or weather damage. ▫ Physical damage to the external & internal parts. ▫ Products that have been opened, altered, or defaced. ▫ Water damage for units that were not mounted according to user manual.
