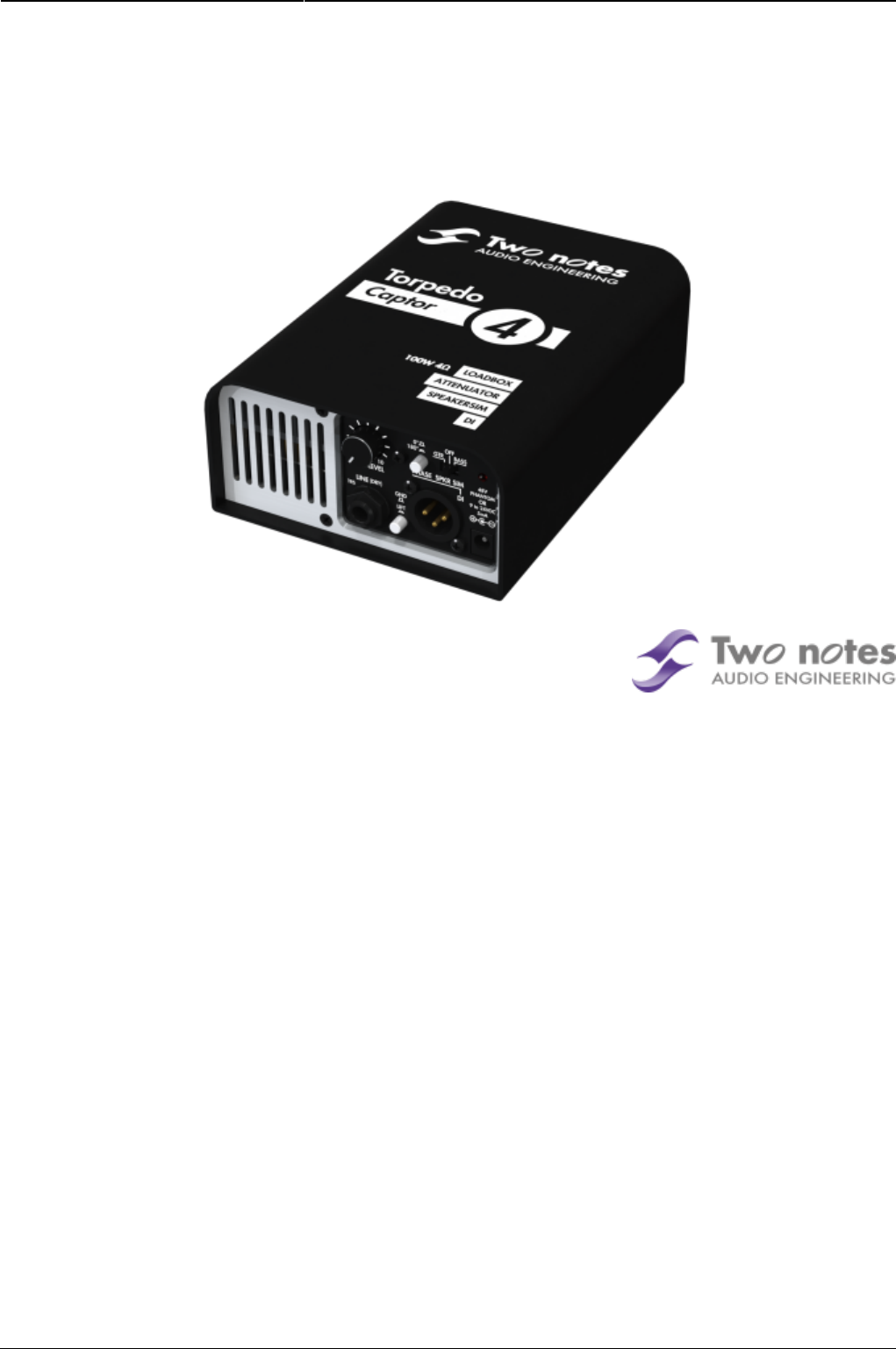

2017/10/02 13:08 1/21 Torpedo Captor User's Manual Torpedo Captor User's Manual The compact loadbox and amp DI The complete electronic version of this manual, as well as the Two notes Audio Engineering software and hardware products, are subject to updates. You can download the most recent versions of the products on the Two notes Audio Engineering website. This manual describes the Torpedo Captor and provides instructions for its operation.
Last update: torpedo_captor:torpedo_captor_user_s_manual http://wiki.two-notes.com/doku.php?id=torpedo_captor:torpedo_captor_user_s_manual 2017/10/02 12:01 OROSYS SAS reserves the right to change technical specifications, modify and/or cease production without prior notice. OROSYS SAS cannot be held responsible for any damage, accidental or otherwise, that results from an inappropriate use of the Torpedo Captor. Please refer to the safety instructions included in this manual.
2017/10/02 13:08 3/21 Torpedo Captor User's Manual Torpedo Captor (100W RMS). 1.1.4 Cleaning Always use a piece of dry and soft cloth with no alcohol or solvents for cleaning. Please keep the unit clean and free from dust. 1.1.5 Maintenance All maintenance operations must be performed by service centers approved by OROSYS SAS or by qualified technicians. Never try to repair the machine by yourself. 1.
Last update: torpedo_captor:torpedo_captor_user_s_manual http://wiki.two-notes.com/doku.php?id=torpedo_captor:torpedo_captor_user_s_manual 2017/10/02 12:01 1.4 Disposal of Waste Equipment by Users in Private Household in the European Union This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.
2017/10/02 13:08 5/21 Torpedo Captor User's Manual In case you must absolutely send your TWO NOTES AUDIO ENGINEERING product to any other location, it is of vital importance that you keep the original packing material. It is very difficult to avoid damage when shipping the product without that material. OROSYS SAS is not responsible for damages caused to the product by improper packaging and reserves the right to charge a reboxing fee for any unit returned for service without the original packing material.
Last update: torpedo_captor:torpedo_captor_user_s_manual http://wiki.two-notes.com/doku.php?id=torpedo_captor:torpedo_captor_user_s_manual 2017/10/02 12:01 2.2 Which output volume for my amplifier? The correct use of your amplifier with a loadbox requires some precautions. Because of the silence while playing, it is much easier to accidentally run your amplifier beyond the reasonable limits set by the manufacturer than when using a real speaker cabinet with it.
2017/10/02 13:08 7/21 Torpedo Captor User's Manual the box. We selected a so called “silent fan”, but as it is running fast, it is never entirely silent. This said, you can consider that, in normal use (hearing your guitar through monitors, or headphones), you can barely hear that fan. 3 About the Torpedo Captor 3.1 Introducing the Torpedo Captor The Torpedo Captor is the little brother of the award-winning Torpedo Reload.
Last update: torpedo_captor:torpedo_captor_user_s_manual http://wiki.two-notes.com/doku.php?id=torpedo_captor:torpedo_captor_user_s_manual 2017/10/02 12:01 3.2 The Torpedo Captor's advanced functions The Torpedo Captor provides a number of very useful functions, quickly described hereunder. A more detailled description of each function, their various options and how to use them, can be found later in this manual. 3.2.
2017/10/02 13:08 9/21 Torpedo Captor User's Manual may compromise their playing style and sound. Two notes has developed a unique technology based on an adaptation of convolution techniques. Starting with the measurement of an actual cabinet + microphone setup, the Torpedo products embedding digital processing can accurately reproduce the system as it was measured, as well as the microphone’s position in space.
Last update: torpedo_captor:torpedo_captor_user_s_manual http://wiki.two-notes.com/doku.php?id=torpedo_captor:torpedo_captor_user_s_manual 2017/10/02 12:01 3. shape the signal (Low Cut, Eq, Exciter and Comp sections). With each step, Two notes Audio Engineering implements its know-how to bring you the most advanced simulations on the market and ensure perfect realism both for the musician (playing sensations) and for the listener (sound quality).
2017/10/02 13:08 11/21 Torpedo Captor User's Manual about how the car actually works, depending on many tiny but still important parameters (weather, type of tires, track design…). In that preset mode you will gain access to the full list of parameter, to fine tune your sound and make it perfect to your ears. 4 Using the Torpedo Captor 4.1 Overview The Torpedo Captor offers a solution for silent and quality sound pick-up in many situations.
Last update: torpedo_captor:torpedo_captor_user_s_manual http://wiki.two-notes.com/doku.php?id=torpedo_captor:torpedo_captor_user_s_manual 2017/10/02 12:01 1. 2. 3. 4. Balanced line output (dry signal) Ground lift switch Balanced active DI output Power adapter connector for DI out and speaker simulation (phantom or 9-24V) 5. Output level potentiometer 6. Polarity switch 7. Active speaker simulation switch 1. 2. 3. 4. Speaker Thru output -20dB attenuated speaker output Amplifier input Fan 4.3 Features 4.
2017/10/02 13:08 13/21 Torpedo Captor User's Manual The phantom or external power supply is not needed to use the loadbox. 4.3.2 Thru output If you connect a speaker cabinet to the THRU output, the internal loadbox is disconnected: your amp is directly connected to the speaker cabinet. As a result, the impedance of the speaker cabinet plugged into the THRU output should match the impedance of the amp.
Last update: torpedo_captor:torpedo_captor_user_s_manual http://wiki.two-notes.com/doku.php?id=torpedo_captor:torpedo_captor_user_s_manual 2017/10/02 12:01 The phantom or external power supply is not needed to use the LINE output. 4.3.5 DI output The DI output of the Captor connects to any product with a mic input, usually a mixing console or audio interface.
2017/10/02 13:08 15/21 Torpedo Captor User's Manual 5.1 On stage with a regular speaker cabinet On stage, the Torpedo Captor shines by its simplicity. First, insert the Torpedo Captor between the amp and speaker cabinet. Then, connect the DI output to the mixing console, turn on the 48V phantom power on the mixing console, and select either the GTR or BASS setting of the SPKR SIM switch.
Last update: torpedo_captor:torpedo_captor_user_s_manual http://wiki.two-notes.com/doku.php?id=torpedo_captor:torpedo_captor_user_s_manual 2017/10/02 12:01 In this configuration, the amp is connected to the internal loadbox of the Captor. This means you have to match the impedance of the amp's speaker output and Captor. Please note that, with either of these configurations, you can put a real microphone in front of the speaker and mix it with the DI output of the Captor.
2017/10/02 13:08 17/21 Torpedo Captor User's Manual If silent miking is needed for a silent stage, you can remove the speaker cabinet of the previous configuration. Just connect the amp to the Torpedo Captor, and the DI output to the mixing console. In this configuration, just like when using the Att output, the amp is connected to the internal loadbox of the Captor. You have to match the impedance of the amp's speaker output and Captor. 5.
Last update: torpedo_captor:torpedo_captor_user_s_manual http://wiki.two-notes.com/doku.
2017/10/02 13:08 19/21 Torpedo Captor User's Manual Designation Inspired by PPC412HP© 4×12 Orange® with Celestion® Heritage G12H (55Hz) and Celestion© TangerFat G12M Heritage Greenback Burn It Brunetti® Dual Cab XL 2×12 half back with Eminence® The Governor Recto Over Mesa Rectifier 4 x12 Cabinet. Equipped with a Celestion® Vintage 30 BigBaby K100 Zilla® FatBaby, 1×12 Closed Back, 8 Ohms. Equipped with a Celestion® G12K-100 Zilla® Studio Pro, 2×12 Closed Back.
Last update: torpedo_captor:torpedo_captor_user_s_manual http://wiki.two-notes.com/doku.php?id=torpedo_captor:torpedo_captor_user_s_manual 2017/10/02 12:01 6.5 Reactive loadbox Input impedance: 4, 8 or 16 Ohms Admissible power: 100W RMS (see this article if your amplifier is more powerful) Fan powered by the amp: the phantom or external power supply is not needed. Thermal security: the amp and musician work in security. 6.
2017/10/02 13:08 21/21 Torpedo Captor User's Manual Don't hesitate to browse the Knowledgebase, which contains all sorts of useful informations, or submit a ticket if you have any question or need assistance with a Two notes product. 7.
