TRANSTIG 170Pi
Manual 0-5241 6-3 KEY SPARE PARTS
6.02 TIG Torch W4014604

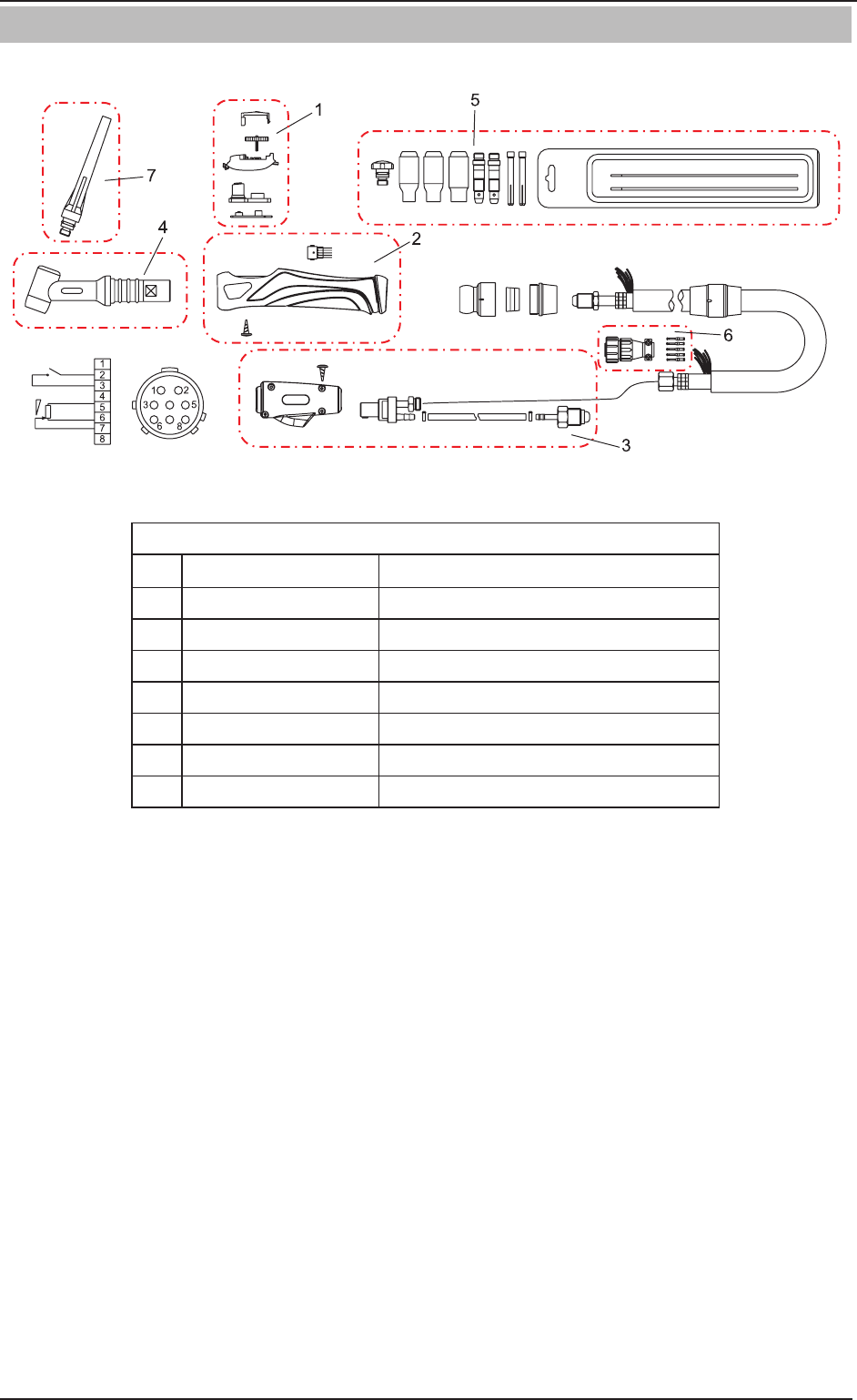

TIG Torch W4014604 spare parts diagram
A-11669
Figure 6-2
TIG TORCH SPARE PARTS
ITEM PART NO. DESCRIPTION
1 W7005900 Trigger assembly for 26F torch
2 W7005901 Handle assembly for 26F torch
3 W7005902 Dinse 50mm for 26F torch
4 W7005903 Flex head for 26F torch
5 BGSAK2 Tig accessory Kit
6 UOA706900 Cable Plug 8 pin
7 BG57Y02/R Back Cap (Long)
Table 6-2
