TRANSTIG 170Pi
BASIC WELDING GUIDE 4-10 Manual 0-5241
Art # A-07710_AB
1
Block Sequence.
The spaces between the welds are
filled in when the welds are cool.
2
3

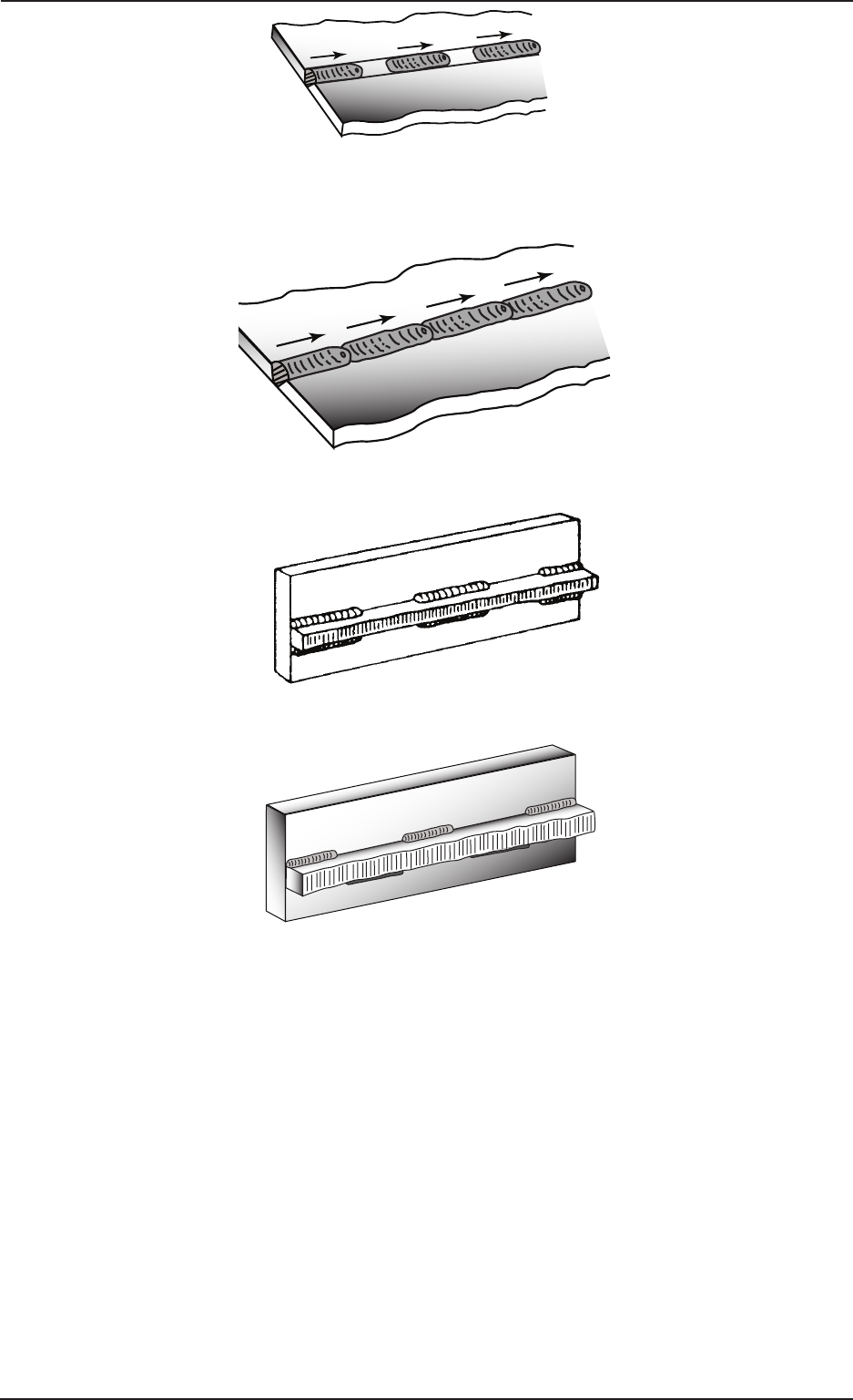

Figure 4-24: Welding Sequence
Art # A-07711_AB
4
3
2
1
Figure 4-25: Step back Sequence
Art # A-07712
Figure 4-26: Chain Intermittent Welding
Art # A-07713_AB
Figure 4-27: Staggered Intermittent Welding
